固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-4.9-23FIXED IND 22.8UH 4.9A 36MOHM SMD Amgis, LLC |
2,089 |
|
数据手册 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
SH260S-4.9-23FIXED IND 22.8UH 4.9A 36MOHM SMD Amgis, LLC |
4,930 |
|
数据手册 |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
DPV-5.0-100FIXED IND 100UH 5A 59 MOHM TH Amgis, LLC |
4,032 |
|
数据手册 |
DP | Radial, Vertical, 4 Leads | Tray | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) |
|
SWC-0.95-1000FIXED IND 1MH 950MA 240 MOHM TH Amgis, LLC |
4,331 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
SH150S-0.36-375FIXED IND 375UH 360MA 1.3OHM SMD Amgis, LLC |
3,757 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
SH50C-1.3-680FIXED IND 680UH 1.3A 200 MOHM TH Amgis, LLC |
3,101 |
|
数据手册 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 1.3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|

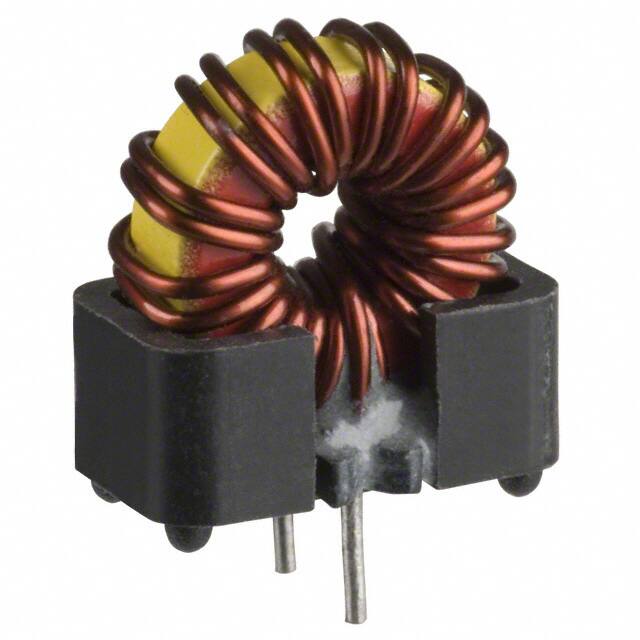

SWC-3.00-17FIXED IND 17UH 3A 50 MOHM TH Amgis, LLC |
1,258 |
|
数据手册 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.340" (8.64mm) |
|
SH150S-0.82-78FIXED IND 78UH 820MA 300MOHM SMD Amgis, LLC |
2,089 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 78 µH | ±20% | 820 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
|
SH150S-0.67-115FIXED IND 115UH 670MA 400MOHM SM Amgis, LLC |
4,941 |
|
数据手册 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 115 µH | ±20% | 670 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
|
SH150T-1.81-168FIXED IND 168UH 1.81A 180MOHM TH Amgis, LLC |
3,571 |
|
数据手册 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 168 µH | ±20% | 1.81 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
