固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L06031R5AHLTRFIXED IND 1.5NH 1A 60 MOHM SMD KYOCERA AVX |
4,098 |
|
数据手册 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.5 nH | ±0.05nH | 1 A | - | Unshielded | 60mOhm Max | 26 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06031R8AHLTRFIXED IND 1.8NH 1A 70 MOHM SMD KYOCERA AVX |
1,770 |
|
数据手册 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.8 nH | ±0.05nH | 1 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R2AHLTRFIXED IND 2.2NH 1A 80 MOHM SMD KYOCERA AVX |
3,557 |
|
数据手册 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.2 nH | ±0.05nH | 1 A | - | Unshielded | 80mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R7AHLTRFIXED IND 2.7NH 750MA 80MOHM SMD KYOCERA AVX |
3,475 |
|
数据手册 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.7 nH | ±0.05nH | 750 mA | - | Unshielded | 80mOhm Max | 21 @ 450MHz | 9GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD KYOCERA AVX |
1,386 |
|
数据手册 |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD KYOCERA AVX |
4,360 |
|
数据手册 |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
LMXN1310M4R7CTASFIXED IND 4.7UH 36 MOHM SMD KYOCERA AVX |
2,008 |
|
数据手册 |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | 4.2A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.20mm x 9.90mm) | 0.250" (6.35mm) |
|

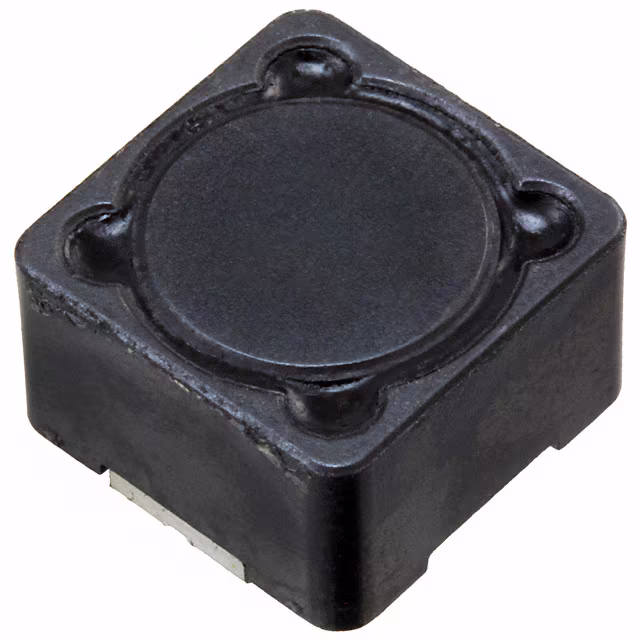

LMXS1212M330HTASFIXED IND 33UH 2.7A 97 MOHM SMD KYOCERA AVX |
4,388 |
|
数据手册 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | - | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD KYOCERA AVX |
1,997 |
|
数据手册 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | - | 200mA | Shielded | 2.58Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.118" (3.00mm) |
|
LMXS131JM220FTASFIXED IND 22UH 4A 32 MOHM SMD KYOCERA AVX |
2,900 |
|
数据手册 |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | - | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
