固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC9-3R3-622FIXED IND 3.3UH 6.2A 20 MOHM TH KEMET |
1,482 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.2 A | 16.4A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
SBC9-222-271FIXED IND 2.2MH 270MA 3.78OHM TH KEMET |
4,541 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 270 mA | 600mA | Unshielded | 3.78Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.610" (15.50mm) |
|

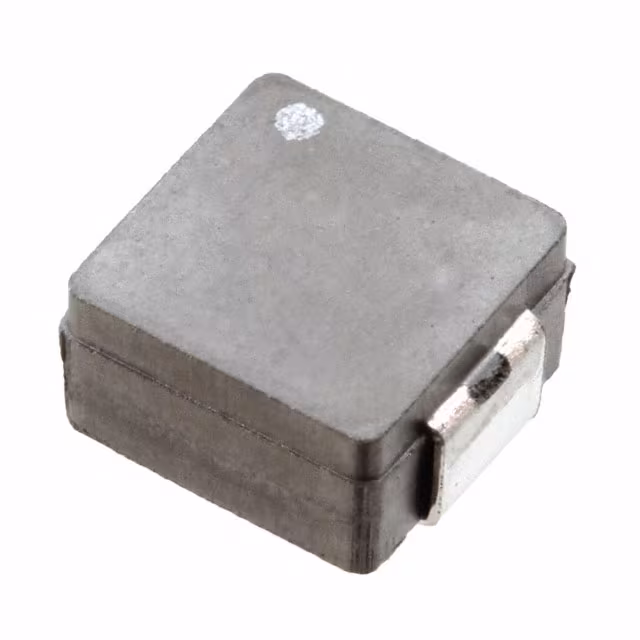

MPLCH0740L2R2FIXED IND 2.2UH 9.3A 13 MOHM SMD KEMET |
4,416 |
|
数据手册 |
MPLCH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 9.3 A | 9A | Shielded | 13mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SBC6-1R0-962FIXED IND 1UH 9.6A 10 MOHM TH KEMET |
2,844 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.6 A | 37.7A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBC2-151-501FIXED IND 150UH 500MA 640MOHM TH KEMET |
4,836 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 500 mA | 550mA | Unshielded | 640mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|
|
SBC2-152-141FIXED IND 1.5MH 140MA 6.2 OHM TH KEMET |
1,572 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 140 mA | 170mA | Unshielded | 6.2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|
|
SBC7-151-172FIXED IND 150UH 1.7A 160 MOHM TH KEMET |
4,793 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.7 A | 2.9A | Unshielded | 160mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
SBC7-470-282FIXED IND 47UH 2.8A 60 MOHM TH KEMET |
3,752 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.8 A | 5.2A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
SBC7-471-851FIXED IND 470UH 850MA 550MOHM TH KEMET |
3,382 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 850 mA | 1.6A | Unshielded | 550mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
MPLCG0530LR68FIXED IND 680NH 7.9A 0.0116OHM KEMET |
2,253 |
|
数据手册 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 7.9 A | 6.8A | Shielded | 11.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
