固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLCG0630LR47FIXED IND 470NH 15.8A 0.005OHM KEMET |
4,957 |
|
数据手册 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 15.8 A | 15.6A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
MPX1D0840L6R8FIXED IND 6.8UH 7.3A 33.4MOHM SM KEMET |
3,797 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 7.3 A | 9A | Shielded | 33.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
SBC8-472-391FIXED IND 4.7MH 390MA 3.2 OHM TH KEMET |
3,443 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 390 mA | 530mA | Unshielded | 3.2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|
|
SBC2-331-341FIXED IND 330UH 340MA 1.4 OHM TH KEMET |
1,432 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 340 mA | 370mA | Unshielded | 1.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|

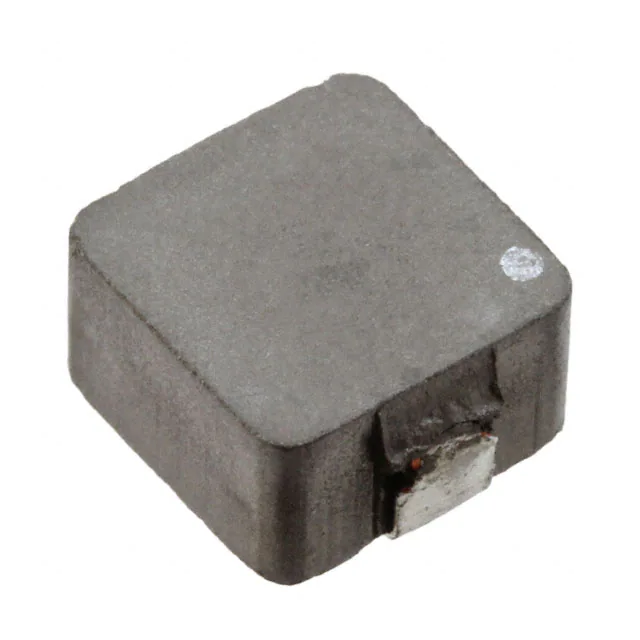

MPC0740LR42CFIXED IND 420NH 22A 1.55MOHM SMD KEMET |
3,069 |
|
数据手册 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 420 nH | ±20% | 22 A | 20A | Shielded | 1.55mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|

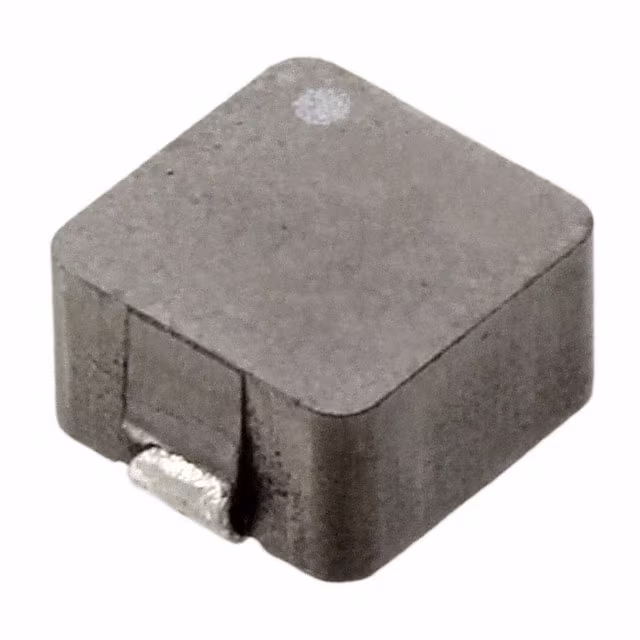

MPCH0740LR36EFIXED IND 360NH 23A 1.42MOHM SMD KEMET |
3,870 |
|
数据手册 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 23 A | 22A | Shielded | 1.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
MPCH1040LR36FIXED IND 360NH 28A 0.88MOHM SMD KEMET |
2,706 |
|
数据手册 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 28 A | 24A | Shielded | 0.88mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
SBCP-87HY101HFIXED IND 100UH 900MA 300MOHM TH KEMET |
1,661 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 900 mA | 870mA | Unshielded | 300mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
MPLC0730LR75FIXED IND 750NH SMD KEMET |
4,716 |
|
数据手册 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 750 nH | ±20% | - | - | Shielded | - | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|

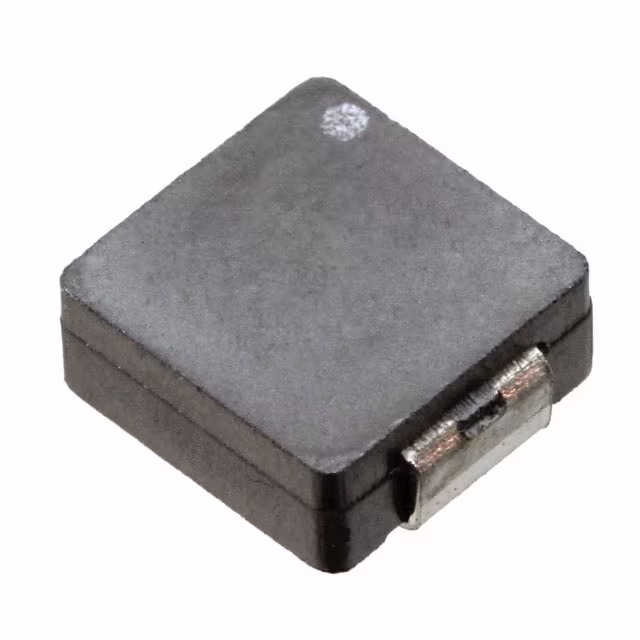

MPLC0730L1R5FIXED IND 1.5UH 8.6A 15 MOHM SMD KEMET |
4,197 |
|
数据手册 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 8.6 A | 8.8A | Shielded | 15mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
