固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC3-100-362FIXED IND 10UH 3.6A 30 MOHM TH KEMET |
1,476 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.6 A | 3A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|

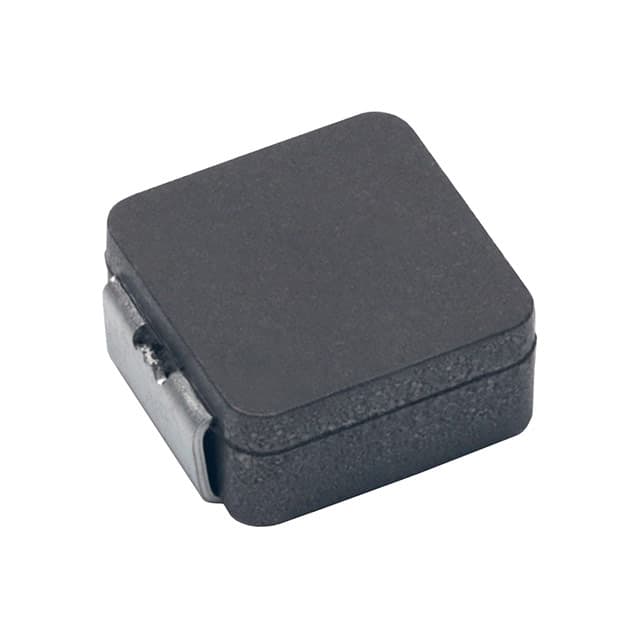

MPX1D0840L2R2FIXED IND 2.2UH 14.3A 8.7MOHM SM KEMET |
1,975 |
|
数据手册 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 14.3 A | 17A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|

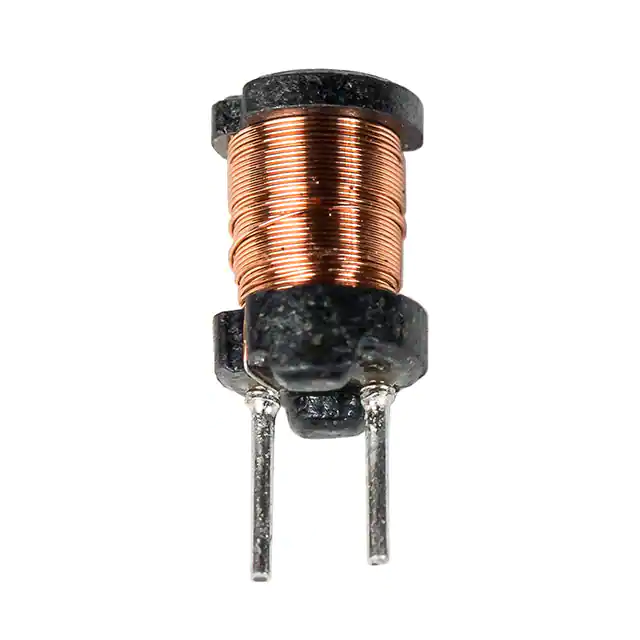

SBCP-47HY2R2BFIXED IND 2.2UH 2.6A 29 MOHM TH KEMET |
5,574 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 3.2A | Unshielded | 29mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
SBCP-47HY102BFIXED IND 1MH 150MA 6 OHM TH KEMET |
5,113 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 150 mA | 160mA | Unshielded | 6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
SBCP-47HY3R3BFIXED IND 3.3UH 2.3A 37 MOHM TH KEMET |
2,730 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 2.7A | Unshielded | 37mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
SBCP-47HY100BFIXED IND 10UH 1.6A 67 MOHM TH KEMET |
1,931 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.6 A | 1.6A | Unshielded | 67mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
MPXV1D0830L220FIXED IND 22UH 3.6A 134.5MOHM SM KEMET |
2,587 |
|
数据手册 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 3.6 A | 5A | Shielded | 134.5mOhm Max | - | 8.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
SBC4-471-491FIXED IND 470UH 490MA 950MOHM TH KEMET |
1,293 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 490 mA | 680mA | Unshielded | 950mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
SBCP-47HY101BFIXED IND 100UH 500MA 584MOHM TH KEMET |
5,643 |
|
数据手册 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 500 mA | 500mA | Unshielded | 584mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBC6-6R8-662FIXED IND 6.8UH 6.6A 20 MOHM TH KEMET |
1,139 |
|
数据手册 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.6 A | 13.6A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
