上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ108081H-101MHF100.00UH, 20%, 28.50MOHM, 10.30A ITG Electronics, Inc. |
1,179 |
|
数据手册 |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 10.5 A | 10.1A | - | 100mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|

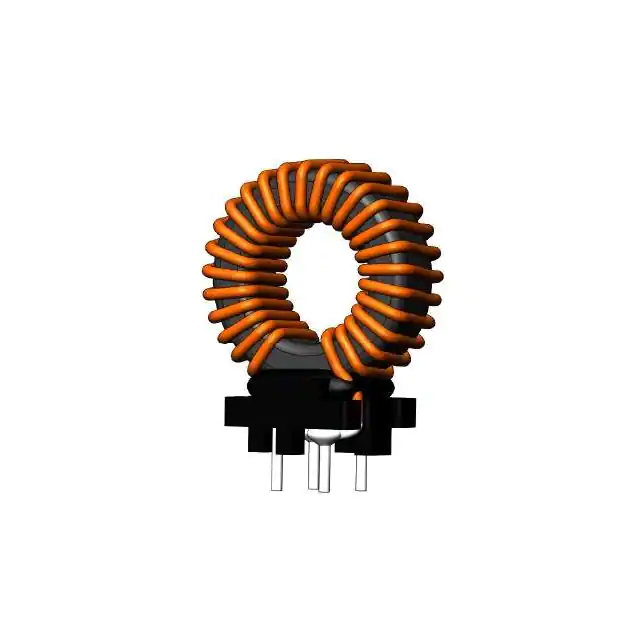

L201314A-102LHF1000.00uH, 15%, 950.00mOhm, 1.1A ITG Electronics, Inc. |
3,729 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 1000 µH | ±15% | 1.1 A | 1A | - | 950mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-301LHF300.00UH, 15%, 170.00MOHM, 2.9A. ITG Electronics, Inc. |
1,636 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 300 µH | ±15% | 2.9 A | 1.8A | - | 170mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-681LHF680.00UH, 15%, 425.00MOHM, 1.7A. ITG Electronics, Inc. |
3,992 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 680 µH | ±15% | 1.7 A | 1.2A | - | 425mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-821LHF820.00UH, 15%, 610.00MOHM, 1.5A. ITG Electronics, Inc. |
2,052 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 820 µH | ±15% | 1.5 A | 1.1A | - | 610mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-251LHF250.00UH, 15%, 112.00MOHM, 3.6A. ITG Electronics, Inc. |
1,284 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 250 µH | ±15% | 3.6 A | 2A | - | 112mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-151LHF150.00UH, 15%, 43.00MOHM, 6.0A. ITG Electronics, Inc. |
3,263 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 150 µH | ±15% | 6 A | 2.6A | - | 43mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-201LHF200.00UH, 15%, 75.00MOHM, 4.5A. ITG Electronics, Inc. |
3,467 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 200 µH | ±15% | 4.5 A | 2.2A | - | 75mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-101LHF100.00UH, 15%, 26.00MOHM, 8.0A. ITG Electronics, Inc. |
2,546 |
|
数据手册 |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 100 µH | ±15% | 8 A | 3.2A | - | 26mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
PFC157181B-101KPFC CHOKE 100.0UH 28.1A 20.0M ITG Electronics, Inc. |
1,035 |
|
数据手册 |
PFC157181B | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 100 µH | ±10% | 14.7 A | 14.7A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.575" L x 0.748" W (40.00mm x 19.00mm) | 1.713" (43.50mm) |
