场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD11NM65NMOSFET N CH 650V 11A DPAK |
4,162 |
|
数据手册 |
MDmesh™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 455mOhm @ 5.5A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 800 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IXFA10N60PMOSFET N-CH 600V 10A TO263 |
253 |
|
数据手册 |
HiPerFET™, Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 740mOhm @ 5A, 10V | 5.5V @ 1mA | 32 nC @ 10 V | ±30V | 1610 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
.jpg)
|
IAUT240N08S5N019ATMA1MOSFET N-CH 80V 240A 8HSOF |
822 |
|
数据手册 |
OptiMOS™ 5 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 240A (Tc) | 6V, 10V | 1.9mOhm @ 100A, 10V | 3.8V @ 160µA | 130 nC @ 10 V | ±20V | 9264 pF @ 40 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-1 |
|

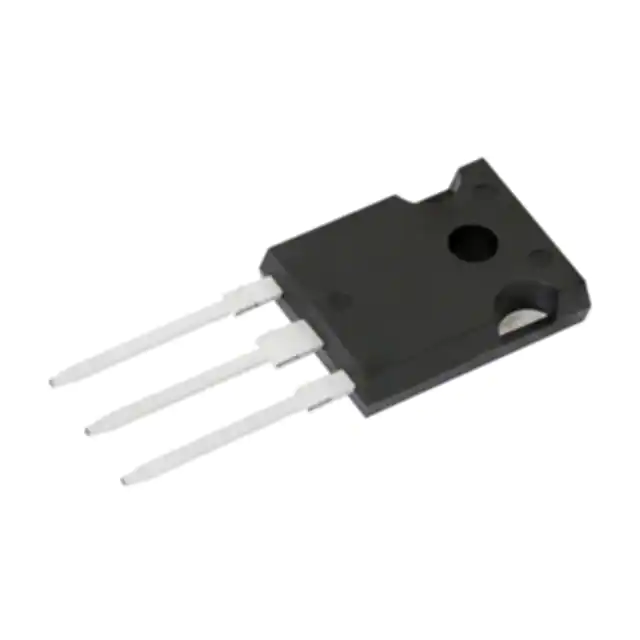

SQW33N65EF-GE3E SERIES POWER MOSFET WITH FAST |
480 |
|
数据手册 |
E | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 109mOhm @ 16.5A, 10V | 4V @ 250µA | 173 nC @ 10 V | ±30V | 3972 pF @ 100 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
IPP60R199CPXKSA1MOSFET N-CH 650V 16A TO220-3 |
404 |
|
数据手册 |
CoolMOS™ | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 199mOhm @ 9.9A, 10V | 3.5V @ 660µA | 43 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
SUM40014M-GE3MOSFET N-CH 40V 200A TO263-7 |
4,915 |
|
数据手册 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 200A (Tc) | - | 0.99mOhm @ 20A, 10V | 2.4V @ 250µA | 275 nC @ 10 V | ±20V | 15780 pF @ 20 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
SIHG186N60EF-GE3MOSFET N-CH 600V 8.4A TO247AC |
207 |
|
数据手册 |
EF | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8.4A (Tc) | 10V | 193mOhm @ 9.5A, 10V | 5V @ 250µA | 32 nC @ 10 V | ±30V | 1081 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IPLU300N04S41R1XTMA1MOSFET N-CH 40V 300A 8HSOF |
7,997 |
|
数据手册 |
OptiMOS™ | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 1.15mOhm @ 100A, 10V | 4V @ 125µA | 151 nC @ 10 V | ±20V | 12090 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-HSOF-8-1 |
|
R6020KNJTLMOSFET N-CH 600V 20A LPTS |
3,399 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 9.5A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 231W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LPTS |
|
R6020ENXMOSFET N-CH 600V 20A TO220FM |
482 |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 10A, 10V | 4V @ 1mA | 60 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
STD80N340K6N-CHANNEL 800 V, 285 MOHM TYP., |
2,442 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Tc) | 10V | 340mOhm @ 6A, 10V | 4V @ 100µA | 17.8 nC @ 10 V | ±30V | 950 pF @ 400 V | - | 92W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
FDP100N10MOSFET N-CH 100V 75A TO220-3 |
308 |
|
数据手册 |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 10mOhm @ 75A, 10V | 4.5V @ 250µA | 100 nC @ 10 V | ±20V | 7300 pF @ 25 V | - | 208W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IRFS9N60APBFMOSFET N-CH 600V 9.2A D2PAK |
188 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.2A (Tc) | 10V | 750mOhm @ 5.5A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STB200NF03T4MOSFET N-CH 30V 120A D2PAK |
1,651 |
|
数据手册 |
STripFET™ III | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 10V | 3.6mOhm @ 60A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 4950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
FDPF18N50TMOSFET N-CH 500V 18A TO220F |
986 |
|
数据手册 |
UniFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 18A (Tc) | 10V | 265mOhm @ 9A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2860 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IPA60R160C6XKSA1MOSFET N-CH 600V 23.8A TO220-FP |
995 |
|
数据手册 |
CoolMOS™ | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 11.3A, 10V | 3.5V @ 750µA | 75 nC @ 10 V | ±20V | 1660 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
FDA59N25MOSFET N-CH 250V 59A TO3PN |
697 |
|
数据手册 |
UniFET™ | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 59A (Tc) | 10V | 49mOhm @ 29.5A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 4020 pF @ 25 V | - | 392W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
|
IPW65R190CFDFKSA2MOSFET N-CH 650V 17.5A TO247-3 |
1,271 |
|
数据手册 |
CoolMOS™ CFD2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17.5A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 4.5V @ 700µA | 68 nC @ 10 V | ±20V | 1850 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-41 |
|
SIHA11N80E-GE3MOSFET N-CH 800V 12A TO220 |
1,081 |
|
数据手册 |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Tc) | 10V | 440mOhm @ 5.5A, 10V | 4V @ 250µA | 88 nC @ 10 V | ±30V | 1670 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
STW28N60M2MOSFET N-CH 600V 24A TO247 |
598 |
|
数据手册 |
MDmesh™ II Plus | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 150mOhm @ 12A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±25V | 1370 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
