场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

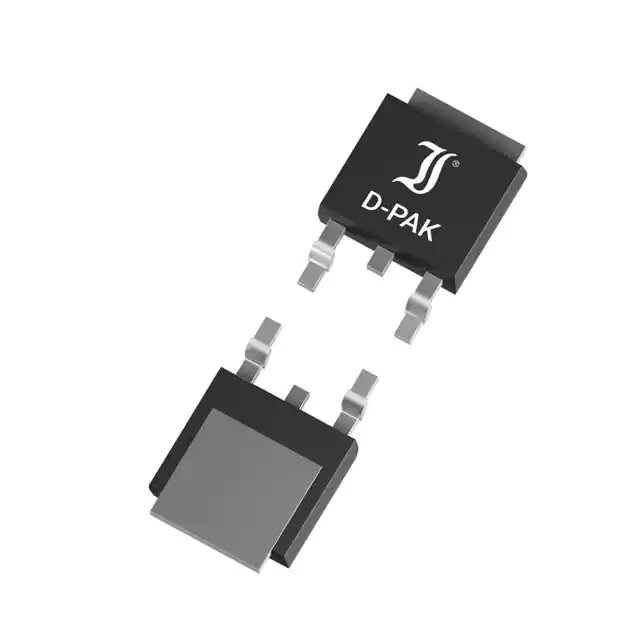

DI040P04D1-AQMOSFET DPAK P -40V -40A 0.015? 1 Diotec Semiconductor |
2,352 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±20V | 3538 pF @ 20 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
|
DIT100N10MOSFET TO220AB N 100V 0.0099OHM Diotec Semiconductor |
997 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 10V | 13mOhm @ 40A, 10V | 4V @ 250µA | 85 nC @ 10 V | ±20V | 4800 pF @ 50 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI2A2N100D1KMOSFET, DPAK, N-CH, 1000V, 2.2A Diotec Semiconductor |
2,480 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2.2A (Tc) | 10V | 6.8Ohm @ 1.5A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±25V | 510 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
DI015N25D1MOSFET DPAK N 250V 0.2OHM 175C Diotec Semiconductor |
2,500 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 15A (Tc) | 10V | 255mOhm @ 15A, 10V | 4.5V @ 250µA | 8.9 nC @ 10 V | ±20V | 475 pF @ 125 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DIT120N08MOSFET TO220AB N 80V 0.0049OHM Diotec Semiconductor |
152 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 6mOhm @ 40A, 10V | 4V @ 250µA | 163 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 220W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI100N10PQMOSFET PWRQFN 5X6 100V 0.0045OHM Diotec Semiconductor |
4,792 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 3V @ 250µA | 64 nC @ 10 V | ±20V | 3400 pF @ 30 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-QFN (5x6) |
|
|
DI150N04PQMOSFET PWRQFN 5X6 40V 0.0014OHM Diotec Semiconductor |
5,000 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 10V | 1.45mOhm @ 75A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 3950 pF @ 20 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
DI070P04PQ-AQMOSFET, POWERQFN 5X6, -40V, -70A Diotec Semiconductor |
3,230 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2.5V @ 250µA | 125 nC @ 10 V | ±20V | 7560 pF @ 20 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
DI100N04D1-AQMOSFET, DPAK, 40V, 100A, 0, 69W Diotec Semiconductor |
2,494 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | - | - | 100A | - | - | - | - | - | - | - | 69W | - | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI110N06D1MOSFET DPAK N 65V 0.0032OHM Diotec Semiconductor |
2,490 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 110A (Tc) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2.5V @ 250µA | - | ±20V | 4211 pF @ 30 V | - | 71W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
