场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQD30N05-20L_GE3MOSFET N-CH 55V 30A TO252AA |
3,507 |
|
数据手册 |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 30A (Tc) | 4.5V, 10V | 20mOhm @ 20A, 10V | 2.5V @ 250µA | 18 nC @ 5 V | ±20V | 1175 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IRF9Z24SPBFMOSFET P-CH 60V 11A D2PAK |
3,327 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 10V | 280mOhm @ 6.6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 3.7W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
BUK9Y15-100E,115MOSFET N-CH 100V 69A LFPAK56 |
2,998 |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 69A (Tc) | 5V, 10V | 14.7mOhm @ 20A, 10V | 2.1V @ 1mA | 45.8 nC @ 5 V | ±10V | 6139 pF @ 25 V | - | 195W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|

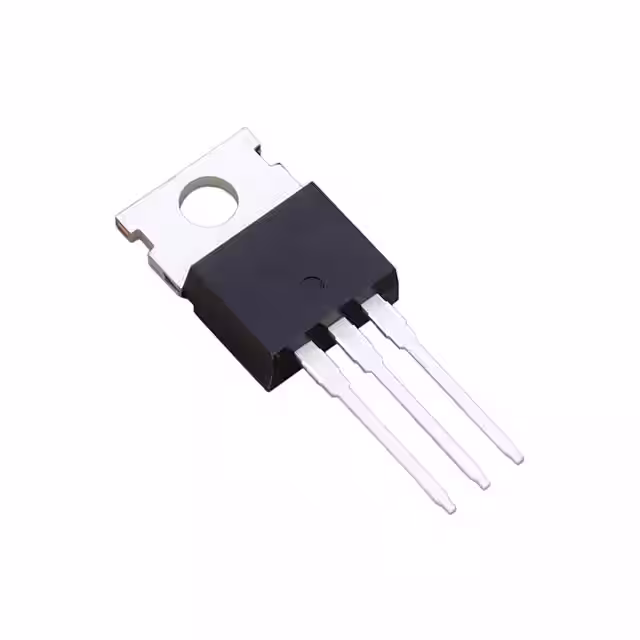

N0602N-S19-AYMOSFET N-CH 60V 100A TO220-3 |
2,846 |
|
数据手册 |
- | TO-220-3 Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 4.6mOhm @ 50A, 10V | - | 133 nC @ 10 V | ±20V | 7730 pF @ 25 V | - | 1.5W (Ta), 156W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STL45N10F7AGMOSFET N-CH 100V 18A POWERFLAT |
2,735 |
|
数据手册 |
STripFET™ F7 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 10V | 24mOhm @ 9A, 10V | 4.5V @ 250µA | 19.5 nC @ 10 V | ±20V | 1450 pF @ 50 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
;;2.jpg)
|
STD12N65M2MOSFET N-CH 650V 8A DPAK |
1,753 |
|
数据手册 |
MDmesh™ M2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 500mOhm @ 4A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±25V | 535 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
FQPF19N20CMOSFET N-CH 200V 19A TO220F |
311 |
|
数据手册 |
QFET® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 19A (Tc) | 10V | 170mOhm @ 9.5A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1080 pF @ 25 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
.JPG)
|
TQM033NB04CR RLGMOSFET N-CH 40V 21A/121A PDFN56U |
7,356 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 21A (Ta), 121A (Tc) | 7V, 10V | 3.3mOhm @ 21A, 10V | 3.8V @ 250µA | 87 nC @ 10 V | ±20V | 4917 pF @ 20 V | - | 3.1W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
UPA2736GR-E1-AXMOSFET P-CH 30V 14A 8SOP |
3,745 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 7mOhm @ 14A, 10V | - | 80 nC @ 10 V | ±20V | 3400 pF @ 10 V | - | 2.5W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
SI7623DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
2,675 |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 2.5V, 10V | 3.8mOhm @ 20A, 10V | 1.5V @ 250µA | 180 nC @ 10 V | ±12V | 5460 pF @ 10 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
DMPH4013SPSQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
1,997 |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 69A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 3V @ 250µA | 87 nC @ 20 V | ±20V | 4763 pF @ 20 V | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
ZXMN6A09GQTAMOSFET N-CH 60V 5.4A SOT223 |
1,277 |
|
数据手册 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.4A (Ta) | 4.5V, 10V | 40mOhm @ 8.2A, 10V | 3V @ 250µA | 24.2 nC @ 10 V | ±20V | 1407 pF @ 40 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|
STU13N60M2MOSFET N-CH 600V 11A IPAK |
1,225 |
|
数据手册 |
MDmesh™ II Plus | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 580 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
TK33S10N1Z,LQMOSFET N-CH 100V 33A DPAK |
977 |
|
数据手册 |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Ta) | 10V | 9.7mOhm @ 16.5A, 10V | 4V @ 500µA | 28 nC @ 10 V | ±20V | 2050 pF @ 10 V | - | 125W (Tc) | 175°C (TJ) | - | - | Surface Mount | DPAK+ |
|
|
SQD50N04-5M6_T4GE3MOSFET N-CH 40V 50A TO252AA |
42,117 |
|
数据手册 |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 5.6mOhm @ 20A, 10V | 3.5V @ 250µA | 85 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IPD35N12S3L24ATMA1MOSFET N-CH 120V 35A TO252-3 |
8,588 |
|
数据手册 |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 35A (Tc) | 4.5V, 10V | 24mOhm @ 35A, 10V | 2.4V @ 39µA | 39 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
BUK9M4R3-40HXMOSFET N-CH 40V 95A LFPAK33 |
3,054 |
|
数据手册 |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 4.3mOhm @ 95A, 10V | - | 31 nC @ 10 V | +16V, -10V | - | - | 90W (Tc) | 175°C | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
IPAN60R280PFD7SXKSA1CONSUMER PG-TO220-3 |
2,779 |
|
数据手册 |
OptiMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 280mOhm @ 3.6A, 10V | 4.5V @ 180µA | 15.3 nC @ 10 V | ±20V | 656 pF @ 400 V | - | 24W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
NVMFS5C456NLAFT1GMOSFET N-CH 40V 87A 5DFN |
1,400 |
|
数据手册 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IRFIZ44NPBFMOSFET N-CH 55V 31A TO220AB FP |
165 |
|
数据手册 |
HEXFET® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 24mOhm @ 17A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
