场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFI9630TUP-CHANNEL POWER MOSFET Fairchild Semiconductor |
691 | - |
|
数据手册 |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 6.5A (Tc) | 10V | 800mOhm @ 3.3A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±30V | 956 pF @ 25 V | - | 3.1W (Ta), 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
RF1K49157N-CHANNEL POWER MOSFET Fairchild Semiconductor |
960 | - |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.3A (Ta) | 4.5V, 10V | 30mOhm @ 6.3A, 10V | 3V @ 250µA | 88 nC @ 20 V | ±20V | 1575 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SFS9640POWER FIELD-EFFECT TRANSISTOR Fairchild Semiconductor |
920 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 6.2A (Tc) | 10V | 500mOhm @ 3.1A, 10V | 4V @ 250µA | 59 nC @ 10 V | ±30V | 1585 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
RFD16N05NLN-CHANNEL POWER MOSFET Fairchild Semiconductor |
776 | - |
|
数据手册 |
PSPICE® | TO-251-3 Short Leads, IPAK, TO-251AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 16A (Tc) | 10V | 47mOhm @ 16A, 10V | 4V @ 250µA | 80 nC @ 20 V | ±20V | 900 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|

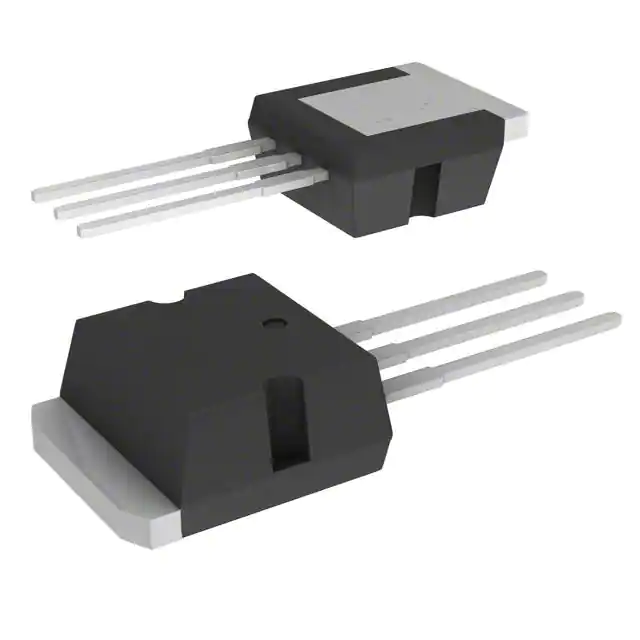

FQI32N12V2TUMOSFET N-CH 120V 32A I2PAK Fairchild Semiconductor |
592 | - |
|
数据手册 |
QFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120 V | 32A (Tc) | 10V | 50mOhm @ 16A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1860 pF @ 25 V | - | 3.75W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
FQPF9N25MOSFET N-CH 250V 6.7A TO220F Fairchild Semiconductor |
600 | - |
|
数据手册 |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 6.7A (Tc) | 10V | 420mOhm @ 3.35A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
HUFA76419D3STN-CHANNEL LOGIC LEVEL ULTRAFET Fairchild Semiconductor |
921 | - |
|
数据手册 |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 37mOhm @ 20A, 10V | 3V @ 250µA | 27.5 nC @ 10 V | ±16V | 900 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FQI17P10TUP-CHANNEL POWER MOSFET Fairchild Semiconductor |
1,000 | - |
|
数据手册 |
QFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 16.5A (Tc) | 10V | 190mOhm @ 8.25A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±30V | 1100 pF @ 25 V | - | 3.75W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
|
FQU1N60TUMOSFET N-CH 600V 1A IPAK Fairchild Semiconductor |
607 | - |
|
数据手册 |
QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 11.5Ohm @ 500mA, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
|
FQPF7N40MOSFET N-CH 400V 4.6A TO220F Fairchild Semiconductor |
552 | - |
|
数据手册 |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 4.6A (Tc) | 10V | 800mOhm @ 2.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 780 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
