场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STFI26NM60NMOSFET N-CH 600V 20A I2PAKFP STMicroelectronics |
5,726 | - |
|
数据手册 |
MDmesh™ II | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 165mOhm @ 10A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±25V | 1800 pF @ 50 V | - | 35W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
;;2.jpg)
|
STD95N2LH5MOSFET N-CH 25V 80A DPAK STMicroelectronics |
3,013 | - |
|
数据手册 |
STripFET™ V | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 5V, 10V | 4.5mOhm @ 40A, 10V | 1V @ 250µA | 13.4 nC @ 5 V | ±22V | 1817 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
STW14NM50MOSFET N-CH 550V 14A TO247-3 STMicroelectronics |
7,983 | - |
|
数据手册 |
MDmesh™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 550 V | 14A (Tc) | 10V | 350mOhm @ 6A, 10V | 5V @ 250µA | 38 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 175W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STW35N60M2-EPMOSFET N-CH 600V TO247 STMicroelectronics |
7,571 | - |
|
数据手册 |
MDmesh™ M2-EP | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | - | - | - | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | TO-247 |
|
STD7N65M6MOSFET N-CH 650V 5A DPAK STMicroelectronics |
5,148 | - |
|
数据手册 |
MDmesh™ M6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 990mOhm @ 2.5A, 10V | 3.75V @ 250µA | 6.9 nC @ 10 V | ±25V | 220 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
STL90N3LLH6MOSFET N-CH 30V 90A POWERFLAT STMicroelectronics |
7,520 | - |
|
数据手册 |
DeepGATE™, STripFET™ VI | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4.5mOhm @ 12A, 10V | 1V @ 250µA | 17 nC @ 4.5 V | ±20V | 1690 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|

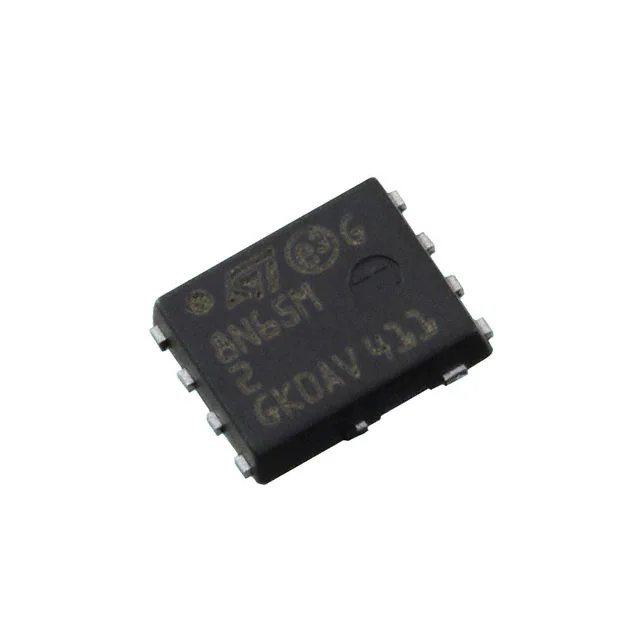

STL8N65M2MOSFET N-CH 650V 5A PWRFLAT56 HV STMicroelectronics |
7,780 | - |
|
数据手册 |
MDmesh™ M2 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 1.25Ohm @ 2A, 10V | 4V @ 250µA | 9 nC @ 10 V | ±25V | 270 pF @ 100 V | - | 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) HV |
|
STI360N4F6MOSFET N-CH 40V 120A I2PAK STMicroelectronics |
6,445 | - |
|
数据手册 |
DeepGATE™, STripFET™ VI | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.8mOhm @ 60A, 10V | 4.5V @ 250µA | 340 nC @ 10 V | ±20V | 17930 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-262 (I2PAK) |
|
STH180N10F3-6MOSFET N-CH 100V 180A H2PAK-6 STMicroelectronics |
5,894 | - |
|
数据手册 |
STripFET™ III | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.5mOhm @ 60A, 10V | 4V @ 250µA | 114.6 nC @ 10 V | ±20V | 6665 pF @ 25 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK-6 |
|
STW16NK60ZMOSFET N-CH 600V 14A TO247-3 STMicroelectronics |
3,590 | - |
|
数据手册 |
SuperMESH™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 420mOhm @ 7A, 10V | 4.5V @ 50µA | 86 nC @ 10 V | ±30V | 2650 pF @ 25 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
