场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP318N4F6MOSFET N-CH 40V 160A TO220 |
4,176 |
|
数据手册 |
STripFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.2mOhm @ 80A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 13800000 pF @ 25 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NTLJS14D0P03P8ZTAGMOSFET P-CH 30V 11A 6MICROFET |
8,331 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FQB7P20TM-F085PMOSFET P-CH 200V 7.3A D2PAK |
3,126 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 7.3A (Tc) | 10V | 690mOhm @ 3.65A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 770 pF @ 25 V | - | 3.13W (Ta), 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
NTNS4CS69NTCGMOSFET N-CH 30V XDFN3 |
4,639 |
|
数据手册 |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISK036N03LM5AULA1TRENCH <= 40V PG-VSON-6 |
3,818 |
|
数据手册 |
OptiMOS™ 5 | 6-PowerVDFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 30 V | 44A (Tc) | 4.5V, 10V | 3.6mOhm @ 20A, 10V | 2V @ 250µA | 21.5 nC @ 10 V | ±16V | 1400 pF @ 15 V | - | 11W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-VSON-6-1 |
|
|
IPT039N15N5XTMA1TRENCH >=100V PG-HSOF-8 |
3,173 |
|
数据手册 |
OptiMOS™ | 8-PowerSFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 150 V | 190A (Tc) | 8V, 10V | 3.9mOhm @ 50A, 10V | 4.6V @ 257µA | 98 nC @ 10 V | ±20V | 7700 pF @ 75 V | - | 319W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8 |
|
|
IAUS300N04S4N007ATMA1MOSFET_(20V 40V) PG-HSOG-8 |
2,411 |
|
数据手册 |
OptiMOS™ | 8-PowerSMD, Gull Wing | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 0.74mOhm @ 100A, 10V | 4V @ 275µA | 342 nC @ 10 V | ±20V | 27356 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOG-8-1 |
|
|
IMT65R022M1HXTMA1SILICON CARBIDE MOSFET PG-HSOF-8 |
8,536 |
|
数据手册 |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IMT65R039M1HXTMA1SILICON CARBIDE MOSFET PG-HSOF-8 |
9,446 |
|
数据手册 |
* | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPB80P03P405ATMA2MOSFET_(20V 40V) PG-TO263-3 |
3,626 |
|
数据手册 |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 10V | 4.7mOhm @ 80A, 10V | 4V @ 253µA | 130 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
GPI65060DFNGANFET N-CH 650V 60A DFN8X8 |
3,790 |
|
数据手册 |
- | Die | Tape & Reel (TR) | Active | N-Channel | GaNFET (Gallium Nitride) | 650 V | 60A | 6V | - | 1.2V @ 3.5mA | 16 nC @ 6 V | +7.5V, -12V | 420 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|

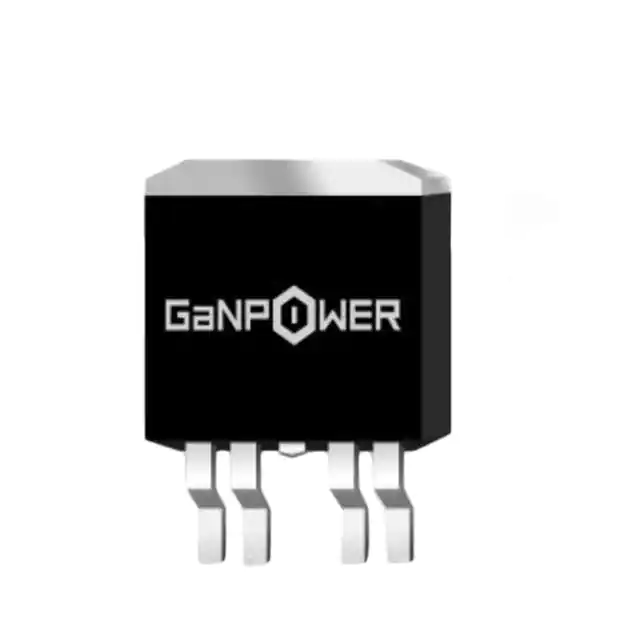

GPIHV30SB5LGANFET N-CH 1200V 30A TO263-5L |
6,073 |
|
数据手册 |
- | Die | Tube | Active | N-Channel | GaNFET (Gallium Nitride) | 1200 V | 30A | 6V | - | 1.4V @ 3.5mA | 8.25 nC @ 6 V | +7.5V, -12V | 236 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
PJP6NA90_T0_00001900V N-CHANNEL MOSFET |
8,995 |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Ta) | 10V | 2.3Ohm @ 3A, 10V | 4V @ 250µA | 23.6 nC @ 10 V | ±30V | 915 pF @ 25 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
PJP100P03_T0_0000130V P-CHANNEL ENHANCEMENT MODE M |
8,758 |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 15.8A (Ta), 100A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.5V @ 250µA | 107 nC @ 10 V | ±20V | 6067 pF @ 25 V | - | 2W (Ta), 119W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
PCFC041N60EWMOSFET N-CH SMD |
6,805 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSS84-F169MOSFET |
5,750 |
|
数据手册 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC9611MXMOSFET N-CH SMD |
6,334 |
|
数据手册 |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NTMJS0D9N03CGTWGMOSFET N-CH 30V LFPAK8 |
4,424 |
|
数据手册 |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Ta), 315A (Tc) | 10V | 0.9mOhm @ 20A, 10V | 2.2V @ 200µA | 131.4 nC @ 10 V | ±20V | 9550 pF @ 15 V | - | 3.9W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-LFPAK |
|
|
FDN5630-GMOSFET N-CH 60V 1.7A SUPERSOT3 |
9,116 |
|
数据手册 |
PowerTrench® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.7A (Ta) | 6V, 10V | 100mOhm @ 1.7A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 560 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
FDP045N10A-F032MOSFET N-CH 100V 120A TO220-3 |
6,307 |
|
数据手册 |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 4.5mOhm @ 100A, 10V | 4V @ 250mA | 74 nC @ 10 V | ±20V | 5270 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
