场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AO3456MOSFET N-CH 30V 3.6A SOT23-3 |
6,698 |
|
数据手册 |
- | 3-SMD, SOT-23-3 Variant | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 4.5V, 10V | 50mOhm @ 3.6A, 10V | 2.5V @ 250µA | 12 nC @ 10 V | ±20V | 200 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
AO4405EMOSFET P-CHANNEL 30V 6A 8SOIC |
2,330 |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 45mOhm @ 6A, 10V | 1.5V @ 250µA | 16 nC @ 10 V | ±20V | 495 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AOB2502LMOSFET N-CH 150V 106A TO263 |
5,554 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 106A (Tc) | 10V | 10.7mOhm @ 20A, 10V | 5.1V @ 250µA | 60 nC @ 10 V | ±20V | 3010 pF @ 75 V | - | 277W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AON6152MOSFET N-CHANNEL 45V 100A 8DFN |
2,783 |
|
数据手册 |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 45 V | 100A (Tc) | 4.5V, 10V | 1.15mOhm @ 20A, 10V | 2.3V @ 250µA | 125 nC @ 10 V | ±20V | 8900 pF @ 22.5 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6160MOSFET N-CHANNEL 60V 100A 8DFN |
3,255 |
|
数据手册 |
AlphaSGT™ | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 1.58mOhm @ 20A, 10V | 3.4V @ 250µA | 120 nC @ 10 V | ±20V | 7790 pF @ 30 V | - | 215W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6220MOSFET N-CHANNEL 100V 48A 8DFN |
5,923 |
|
数据手册 |
AlphaSGT™ | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 48A (Tc) | 4.5V, 10V | 6.2mOhm @ 20A, 10V | 2.3V @ 250µA | 95 nC @ 10 V | ±20V | 4525 pF @ 50 V | - | 113.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6528MOSFET N-CHANNEL 30V 30A 8DFN |
9,852 |
|
数据手册 |
AlphaMOS | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 6.3mOhm @ 20A, 10V | 2.2V @ 250µA | 22 nC @ 10 V | ±20V | 1037 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
AON7418AMOSFET N-CHANNEL 30V 50A 8DFN |
5,491 |
|
数据手册 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 1.7mOhm @ 20A, 10V | 2.2V @ 250µA | 65 nC @ 10 V | ±20V | 2994 pF @ 15 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3.3x3.3) |
|
AOT2904MOSFET N-CH 100V 120A TO220 |
3,900 |
|
数据手册 |
AlphaSGT™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 6V, 10V | 4.4mOhm @ 20A, 10V | 3.3V @ 250µA | 135 nC @ 10 V | ±20V | 7085 pF @ 50 V | - | 326W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
AOWF296MOSFET N-CH 100V 37A TO262F |
9,027 |
|
数据手册 |
AlphaSGT™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 37A (Tc) | 6V, 10V | 9.7mOhm @ 20A, 10V | 3.4V @ 250µA | 52 nC @ 10 V | ±20V | 2785 pF @ 50 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262F |
|

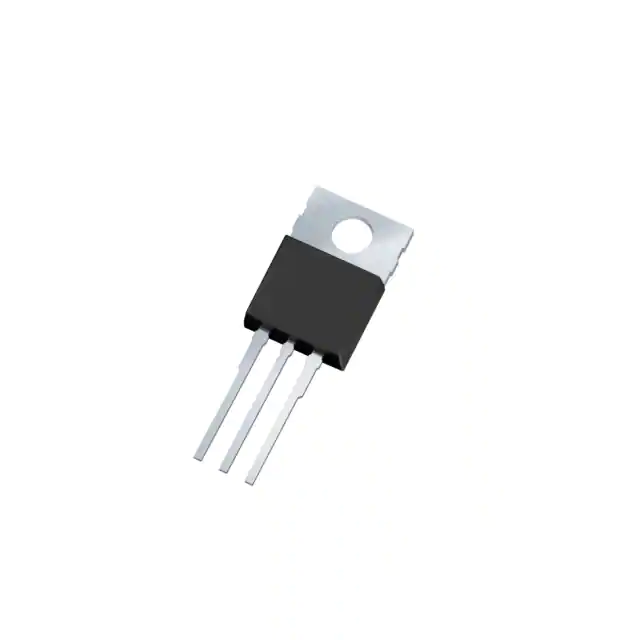

IPP80N07S405AKSA1MOSFET N-CH TO220-3 |
7,435 |
|
数据手册 |
- | - | Tube | Active | - | - | - | 80A (Tc) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPI120N04S4-01MMOSFET N-CH TO262-3 |
8,094 |
|
数据手册 |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPS70N10S3L-12MOSFET N-CH 1TO251-3 |
8,167 |
|
数据手册 |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ITD50N04S4L04ATMA1MOSFET N-CH TO252-5 |
6,551 |
|
数据手册 |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPA60R120P7E8191XKSA1MOSFET N-CH 600V TO220FP-3 |
6,256 |
|
数据手册 |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPA60R125C6E8191XKSA1MOSFET N-CH TO220-3 |
9,626 |
|
数据手册 |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPC60R070C6UNSAWNX6SA1MOSFET N-CH BARE DIE |
3,364 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPC60R160C6UNSAWNX6SA1MOSFET N-CH BARE DIE |
9,944 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPC60R190E6UNSAWNX6SA1MOSFET N-CH BARE DIE |
5,628 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPC60R190E6X7SA1MOSFET N-CH |
4,307 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
