场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPD60R380P6BTMA1MOSFET N-CH 600V 10.6A TO252-3 |
6,443 |
|
数据手册 |
CoolMOS™ P6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.6A (Tc) | 10V | 380mOhm @ 3.8A, 10V | 4.5V @ 320µA | 19 nC @ 10 V | ±20V | 877 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
FCH099N60EMOSFET N-CH 600V 37A TO247-3 |
3,253 |
|
数据手册 |
SuperFET® II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 37A (Tc) | 10V | 99mOhm @ 18.5A, 10V | 3.5V @ 250µA | 114 nC @ 10 V | ±20V | 3465 pF @ 380 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
VS-FC80NA20MOSFET N-CH 200V 108A SOT227 |
2,936 |
|
数据手册 |
- | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 108A (Tc) | 10V | 14mOhm @ 80A, 10V | 5.5V @ 250µA | 161 nC @ 10 V | ±30V | 10720 pF @ 50 V | - | 405W (Tc) | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
DMG7401SFGQ-13MOSFET P-CH 30V 9.8A PWRDI3333-8 |
2,920 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 20V | 11mOhm @ 12A, 20V | 3V @ 250µA | 58 nC @ 10 V | ±25V | 2987 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
|
DMP3017SFGQ-13MOSFET P-CH 30V 11.5A PWRDI3333 |
3,794 |
|
数据手册 |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11.5A (Ta) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 41 nC @ 10 V | ±25V | 2246 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
FCD5N60-F085MOSFET N-CH 600V 4.6A DPAK |
8,210 |
|
数据手册 |
SuperFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.6A (Tc) | 10V | 1.1Ohm @ 4.6A, 10V | 5V @ 250µA | 21 nC @ 10 V | ±30V | 570 pF @ 25 V | - | 54W (Tj) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IRF7780MTRPBFMOSFET N-CH 75V 89A DIRECTFET |
3,669 |
|
数据手册 |
StrongIRFET™ | DirectFET™ Isometric ME | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 89A (Tc) | 6V, 10V | 5.7mOhm @ 53A, 10V | 3.7V @ 150µA | 186 nC @ 10 V | ±20V | 6504 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DirectFET™ Isometric ME |
|
IRL40B209MOSFET N-CH 40V 195A TO220AB |
7,716 |
|
数据手册 |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 4.5V, 10V | 1.25mOhm @ 100A, 10V | 2.4V @ 250µA | 270 nC @ 4.5 V | ±20V | 15140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRL40B212MOSFET N-CH 40V 195A TO220AB |
9,572 |
|
数据手册 |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 4.5V, 10V | 1.9mOhm @ 100A, 10V | 2.4V @ 150µA | 137 nC @ 4.5 V | ±20V | 8320 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRL40S212MOSFET N-CH 40V 195A D2PAK |
6,715 |
|
数据手册 |
StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 4.5V, 10V | 1.9mOhm @ 100A, 10V | 2.4V @ 150µA | 137 nC @ 4.5 V | ±20V | 8320 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IRL60B216MOSFET N-CH 60V 195A TO220AB |
2,857 |
|
数据手册 |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 4.5V, 10V | 1.9mOhm @ 100A, 10V | 2.4V @ 250µA | 258 nC @ 4.5 V | ±20V | 15570 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
HAT2192WP-EL-EMOSFET N-CH 250V 10A 8WPAK |
8,141 |
|
数据手册 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 10A (Ta) | 10V | 230mOhm @ 5A, 10V | - | 15 nC @ 10 V | ±30V | 710 pF @ 25 V | - | 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-WPAK (3) |
|

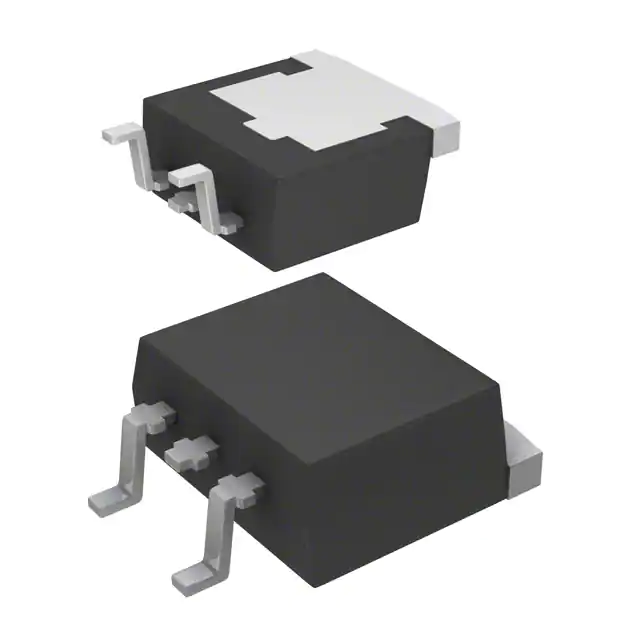

RJK0629DPE-00#J3MOSFET N-CH 60V 85A 4LDPAK |
6,135 |
|
数据手册 |
- | SC-83 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 85A (Ta) | 4.5V, 10V | 4.5mOhm @ 43A, 10V | - | 85 nC @ 10 V | ±20V | 4100 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LDPAK |
|
|
IPD60R520CPATMA1MOSFET N-CH 600V 6.8A TO252-3 |
4,253 |
|
数据手册 |
CoolMOS™ CP | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.8A (Tc) | 10V | 520mOhm @ 3.8A, 10V | 3.5V @ 250µA | 31 nC @ 10 V | ±20V | 630 pF @ 100 V | - | 66W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD60R600CPATMA1MOSFET N-CH 600V 6.1A TO252-3 |
8,860 |
|
数据手册 |
CoolMOS™ CP | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.1A (Tc) | 10V | 600mOhm @ 3.3A, 10V | 3.5V @ 220µA | 27 nC @ 10 V | ±20V | 550 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPP052NE7N3GHKSA1MOSFET N-CH 75V 80A TO220-3 |
5,541 |
|
数据手册 |
OptiMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 5.2mOhm @ 80A, 10V | 3.8V @ 91µA | 68 nC @ 10 V | ±20V | 4750 pF @ 37.5 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
FDD9407L-F085MOSFET N-CH 40V 100A DPAK |
7,128 |
|
数据手册 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 2.4mOhm @ 80A, 4.5V | 3V @ 250µA | 125 nC @ 10 V | ±20V | 6700 pF @ 25 V | - | 227W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
IPB60R230P6ATMA1MOSFET N-CH 600V 16.8A TO263-3 |
9,015 |
|
数据手册 |
CoolMOS™ P6 | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 16.8A (Tc) | 10V | 230mOhm @ 6.4A, 10V | 4.5V @ 530µA | 31 nC @ 10 V | ±20V | 1450 pF @ 100 V | - | 126W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3-1 |
|
MCH3374-TL-WMOSFET P-CH 12V 3A SC70FL/MCPH3 |
5,691 |
|
数据手册 |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3A (Ta) | 1.8V, 4V | 70mOhm @ 1.5A, 4.5V | 1.4V @ 1mA | 5.6 nC @ 4.5 V | ±8V | 405 pF @ 6 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | SC-70FL/MCPH3 |
|
MCH6331-TL-WMOSFET P-CH 30V 3.5A MCPH6 |
7,411 |
|
数据手册 |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4V, 10V | 98mOhm @ 1.5A, 10V | 2.6V @ 1mA | 5 nC @ 10 V | ±20V | 250 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | SC-88FL/MCPH6 |
