场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMZ290UNYLMOSFET DFN1006-3 Nexperia USA Inc. |
6,197 | - |
|
数据手册 |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | - | - | - | 1A (Tj) | 1.8V, 4.5V | - | - | - | ±8V | - | - | - | - | - | - | Surface Mount | SOT-883 |
|
PMN120ENEXMOSFET N-CH 60V 3.1A 6TSOP Nexperia USA Inc. |
7,079 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.1A (Ta) | 4.5V, 10V | 123mOhm @ 2.4A, 10V | 2.7V @ 250µA | 7.4 nC @ 10 V | ±20V | 275 pF @ 30 V | - | 1.4W (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PSMN3R5-40YSD/2XPSMN3R5-40YSD/SOT669/LFPAK Nexperia USA Inc. |
3,114 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 3.5mOhm @ 25A, 10V | 3.6V @ 1mA | 44 nC @ 10 V | ±20V | 3245 pF @ 20 V | Schottky Diode (Body) | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PSMN2R0-30YLD/2XPSMN2R0-30YLD/SOT669/LFPAK Nexperia USA Inc. |
8,660 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 2mOhm @ 25A, 10V | 2.2V @ 1mA | 46 nC @ 10 V | ±20V | 2969 pF @ 15 V | - | 142W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
SI2304DS,215MOSFET N-CH 30V 1.7A TO236AB Nexperia USA Inc. |
2,634 | - |
|
数据手册 |
TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.7A (Tc) | 4.5V, 10V | 117mOhm @ 500mA, 10V | 2V @ 1mA | 4.6 nC @ 10 V | ±20V | 195 pF @ 10 V | - | 830mW (Tc) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|
BUK7Y3R0-40EXMOSFET N-CH 40V LFPAK56 PWR-SO8 Nexperia USA Inc. |
5,852 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|

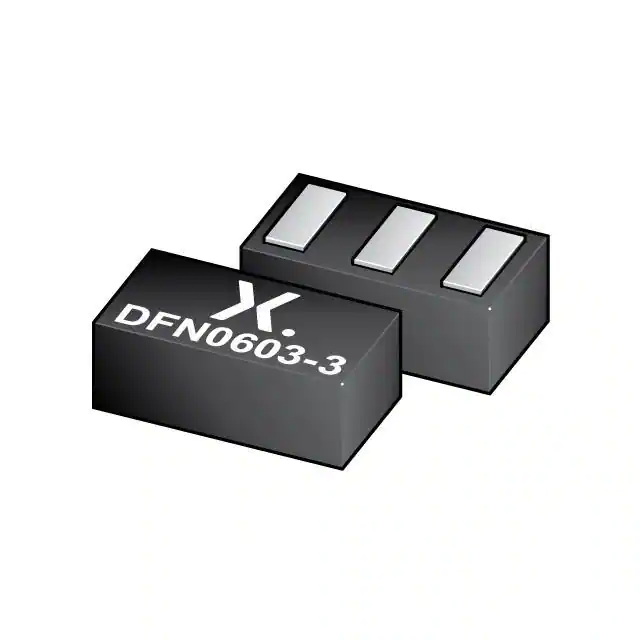

PMX400UPZPMX400UP/SOT8013/DFN0603-3 Nexperia USA Inc. |
8,684 | - |
|
数据手册 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 20 V | 900mA (Ta) | 1.8V, 4.5V | 500mOhm @ 1A, 4.5V | 900mV @ 250µA | 2.4 nC @ 4.5 V | ±12V | 146 pF @ 10 V | - | 500mW (Ta), 4.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
BUK9222-55A,127MOSFET N-CH 55V 48A DPAK Nexperia USA Inc. |
9,392 | - |
|
数据手册 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 48A (Tc) | 4.5V, 10V | 20mOhm @ 25A, 10V | 2V @ 1mA | - | ±15V | 2210 pF @ 25 V | - | 103W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
PMN28UN,135MOSFET N-CH 12V 5.7A 6TSOP Nexperia USA Inc. |
9,152 | - |
|
数据手册 |
TrenchMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 5.7A (Tc) | 1.8V, 4.5V | 34mOhm @ 2A, 4.5V | 700mV @ 1mA (Typ) | 10.1 nC @ 4.5 V | ±8V | 740 pF @ 10 V | - | 1.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
PMN45EN,135MOSFET N-CH 30V 5.2A 6TSOP Nexperia USA Inc. |
3,108 | - |
|
数据手册 |
TrenchMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.2A (Tc) | 4.5V, 10V | 40mOhm @ 3A, 10V | 2V @ 1mA | 6.1 nC @ 4.5 V | 20V | 495 pF @ 25 V | - | 1.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
