场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN0R7-25YLDXMOSFET N-CH 25V 300A LFPAK56 Nexperia USA Inc. |
3,113 | - |
|
数据手册 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 300A (Tc) | 4.5V, 10V | 0.72mOhm @ 25A, 10V | 2.2V @ 1mA | 110.2 nC @ 10 V | ±20V | 8320 pF @ 12 V | - | 158W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56; Power-SO8 |
|
PSMNR60-25YLHXMOSFET N-CH 25V 300A LFPAK56 Nexperia USA Inc. |
3,975 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | - | 300A (Tc) | 4.5V, 10V | 700mOhm @ 25A, 10V | 2.2V @ 2mA | 147 nC @ 10 V | ±20V | 8117 pF @ 12 V | - | 268W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PSMNR67-30YLEXPSMNR67-30YLE/SOT1023/4 LEADS Nexperia USA Inc. |
1,400 | - |
|
数据手册 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 365A (Tc) | 7V, 10V | 0.7mOhm @ 25A, 10V | 2.2V @ 2mA | 185 nC @ 10 V | ±20V | 12417 pF @ 15 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
BUK7S1R5-40HJMOSFET N-CH 40V 260A LFPAK88 Nexperia USA Inc. |
1,956 | - |
|
数据手册 |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 260A (Tc) | 10V | 1.5mOhm @ 25A, 10V | 3.6V @ 1mA | 93 nC @ 10 V | +20V, -10V | 6712 pF @ 25 V | - | 242W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|
BUK763R1-60E,118MOSFET N-CH 60V 120A D2PAK Nexperia USA Inc. |
8,530 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.1mOhm @ 25A, 10V | 4V @ 1mA | 114 nC @ 10 V | ±20V | 8920 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
PSMN4R4-80BS,118MOSFET N-CH 80V 100A D2PAK Nexperia USA Inc. |
6,485 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 10V | 4.5mOhm @ 25A, 10V | 4V @ 1mA | 125 nC @ 10 V | ±20V | 8400 pF @ 40 V | - | 306W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
PSMN1R1-40BS,118MOSFET N-CH 40V 120A D2PAK Nexperia USA Inc. |
3,818 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.3mOhm @ 25A, 10V | 4V @ 1mA | 136 nC @ 10 V | ±20V | 9710 pF @ 20 V | - | 306W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK7S1R2-40HJMOSFET N-CH 40V 300A LFPAK88 Nexperia USA Inc. |
4,578 | - |
|
数据手册 |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 1.2mOhm @ 25A, 10V | 3.6V @ 1mA | 112 nC @ 10 V | +20V, -10V | 8420 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|
|
BUK763R8-80E,118MOSFET N-CH 80V 120A D2PAK Nexperia USA Inc. |
4,772 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 3.8mOhm @ 25A, 10V | 4V @ 1mA | 169 nC @ 10 V | ±20V | 12030 pF @ 25 V | - | 357W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|

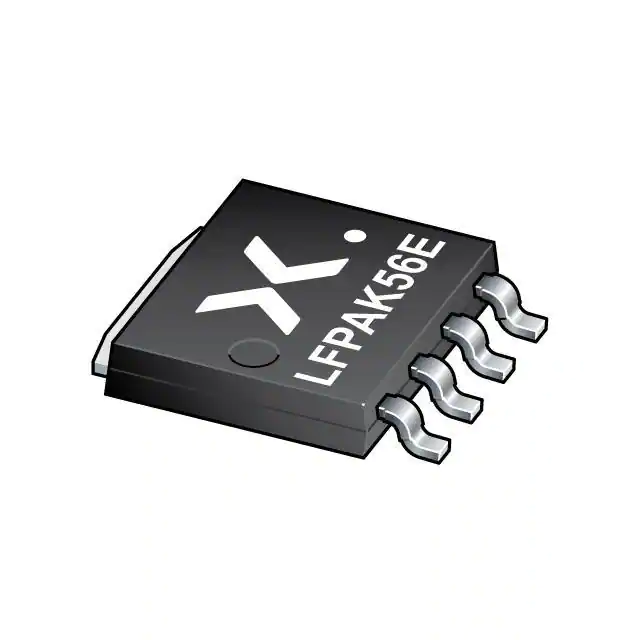

PSMN2R0-55YLHXPSMN2R0-55YLH/SOT1023/4 LEADS Nexperia USA Inc. |
13,205 | - |
|
数据手册 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 200A (Tc) | 4.5V, 10V | 2.1mOhm @ 25A, 10V | 2.2V @ 1mA | 184 nC @ 10 V | ±20V | 11353 pF @ 27 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
