场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK762R6-40E,118MOSFET N-CH 40V 100A D2PAK Nexperia USA Inc. |
3,985 | - |
|
数据手册 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 2.6mOhm @ 25A, 10V | 4V @ 1mA | 91 nC @ 10 V | ±20V | 7130 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
BUK954R8-60E,127MOSFET N-CH 60V 100A TO220AB Nexperia USA Inc. |
7,267 | - |
|
数据手册 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 5V, 10V | 4.5mOhm @ 25A, 10V | 2.1V @ 1mA | 65 nC @ 5 V | ±10V | 9710 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
PSMN8R5-100ESQMOSFET N-CH 100V 100A I2PAK Nexperia USA Inc. |
7,422 | - |
|
数据手册 |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tj) | 10V | 8.5mOhm @ 25A, 10V | 4V @ 1mA | 111 nC @ 10 V | ±20V | 5512 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
BUK7Y15-100EXMOSFET N-CH 100V 68A LFPAK56 Nexperia USA Inc. |
7,488 | - |
|
数据手册 |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 68A (Tc) | 10V | 15mOhm @ 20A, 10V | 4V @ 1mA | 54.5 nC @ 10 V | ±20V | 3958 pF @ 25 V | - | 195W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
|
BUK9Y12-80E,115MOSFET N-CH 80V LFPAK56 PWR-SO8 Nexperia USA Inc. |
5,531 | - |
|
数据手册 |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|

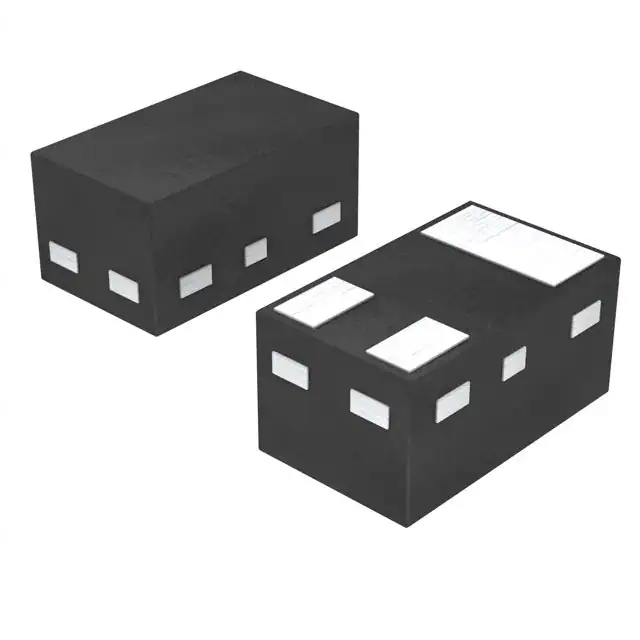

PMZB290UN,315MOSFET N-CH 20V 1A DFN1006B-3 Nexperia USA Inc. |
2,132 | - |
|
数据手册 |
- | 3-XFDFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | 950mV @ 250µA | 0.68 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
|
PH2230DLSXMOSFET N-CH LFPAK5 POWER-SO8 Nexperia USA Inc. |
4,944 | - |
|
数据手册 |
* | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
BUK9880-55/CUFMOSFET N-CH 55V 7.5A SOT223 Nexperia USA Inc. |
9,190 | - |
|
数据手册 |
TrenchMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 7.5A (Tc) | 5V | 80mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 650 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
PMN27UPHMOSFET P-CH 20V 5.7A 6TSOP Nexperia USA Inc. |
7,617 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.7A (Ta) | 1.8V, 4.5V | 32mOhm @ 2.4A, 4.5V | 950mV @ 250µA | 31 nC @ 4.5 V | ±8V | 2340 pF @ 10 V | - | 540mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

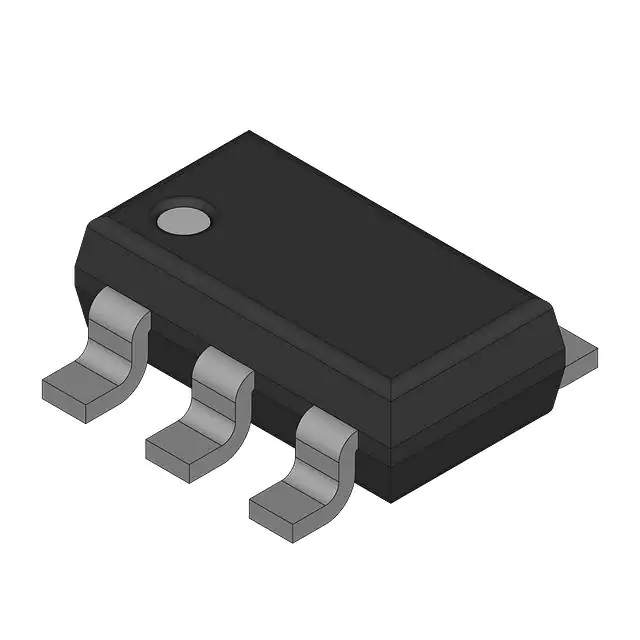

PMN27XPEAXMOSFET P-CH 20V 4.4A 6TSOP Nexperia USA Inc. |
5,218 | - |
|
数据手册 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 2.5V, 4.5V | 30mOhm @ 3A, 4.5V | 1.25V @ 250µA | 22.5 nC @ 4.5 V | ±12V | 1770 pF @ 10 V | - | 530mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
