场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRFS8408-7TRRMOSFET N-CH 40V 240A D2PAK |
3,489 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-900 |
|
|
AUIRFS8405TRLMOSFET N-CH 40V 120A D2PAK |
9,205 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.9V @ 100µA | 161 nC @ 10 V | ±20V | 5193 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
AUIRFSL8405MOSFET N-CH 40V 120A TO262 |
9,560 |
|
数据手册 |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.9V @ 100µA | 161 nC @ 10 V | ±20V | 5193 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|

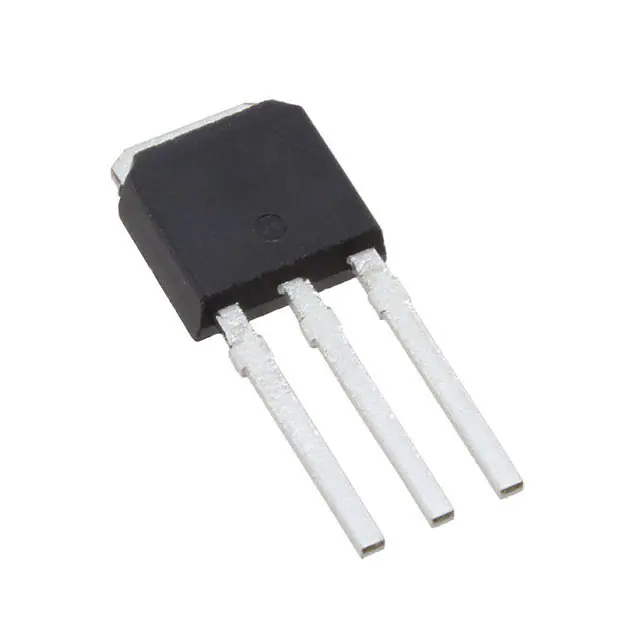

AUIRFU8403MOSFET N-CH 40V 100A IPAK |
2,184 |
|
数据手册 |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 3.1mOhm @ 76A, 10V | 3.9V @ 100µA | 99 nC @ 10 V | ±20V | 3171 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
AUIRFS8403MOSFET N-CH 40V 123A D2PAK |
4,240 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 123A (Tc) | 10V | 3.3mOhm @ 70A, 10V | 3.9V @ 100µA | 93 nC @ 10 V | ±20V | 3183 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
AUIRFSL8403MOSFET N-CH 40V 123A TO262 |
4,648 |
|
数据手册 |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 123A (Tc) | 10V | 3.3mOhm @ 70A, 10V | 3.9V @ 100µA | 93 nC @ 10 V | ±20V | 3183 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
AUIRFS8405MOSFET N-CH 40V 120A D2PAK |
8,521 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.9V @ 100µA | 161 nC @ 10 V | ±20V | 5193 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
AUIRFS8407MOSFET N-CH 40V 195A D2PAK |
2,661 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.8mOhm @ 100A, 10V | 4V @ 150µA | 225 nC @ 10 V | ±20V | 7330 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
AUIRFS8408MOSFET N-CH 40V 195A D2PAK |
9,745 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRFS8408-7PMOSFET N-CH 40V 240A D2PAK |
6,741 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-900 |
|
AUIRFS8409MOSFET N-CH 40V 195A D2PAK |
2,470 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
AUIRFR8401MOSFET N-CH 40V 100A DPAK |
6,127 |
|
数据手册 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 50µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
AUIRFU8405MOSFET N-CH 40V 100A IPAK |
5,228 |
|
数据手册 |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.98mOhm @ 90A, 10V | 3.9V @ 100µA | 155 nC @ 10 V | ±20V | 5171 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
|
AUIRFU8401MOSFET N-CH 40V 100A IPAK |
5,759 |
|
数据手册 |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 500µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
SK8603180LMOSFET N-CH 30V 15A/39A 8HSO |
3,110 |
|
数据手册 |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 39A (Tc) | 4.5V, 10V | 7.1mOhm @ 10A, 10V | 3V @ 1.45mA | 9.2 nC @ 4.5 V | ±20V | 1680 pF @ 10 V | - | 2.4W (Ta), 19W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
|
SK8603190LMOSFET N-CH 30V 12A/19A 8HSO |
4,273 |
|
数据手册 |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 19A (Tc) | 4.5V, 10V | 10mOhm @ 8A, 10V | 3V @ 1.01mA | 6.3 nC @ 4.5 V | ±20V | 1092 pF @ 10 V | - | 2.7W (Ta), 19W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
SCT2120AFCSICFET N-CH 650V 29A TO220AB |
2,037 |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 650 V | 29A (Tc) | 18V | 156mOhm @ 10A, 18V | 4V @ 3.3mA | 61 nC @ 18 V | +22V, -6V | 1200 pF @ 500 V | - | 165W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFH4213TRPBFMOSFET N-CH 25V 41A PQFN |
3,365 |
|
数据手册 |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 54 nC @ 10 V | ±20V | 3420 pF @ 13 V | - | 3.6W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|

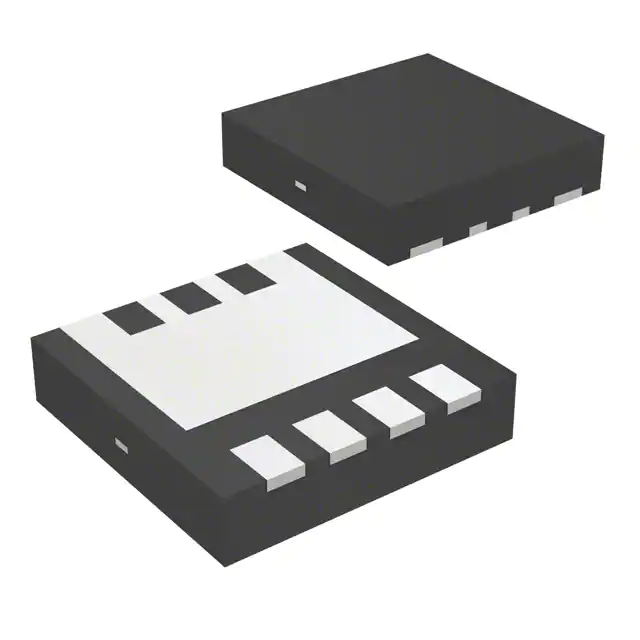

IRFHM4226TRPBFMOSFET N CH 25V 28A PQFN |
8,716 |
|
数据手册 |
HEXFET® | 8-TQFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.1V @ 50µA | 32 nC @ 10 V | ±20V | 2000 pF @ 13 V | - | 2.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|
TK8A10K3,S5QMOSFET N-CH 100V 8A TO220SIS |
7,485 |
|
数据手册 |
U-MOSIV | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 8A (Ta) | 10V | 120mOhm @ 4A, 10V | 4V @ 1mA | 12.9 nC @ 10 V | ±20V | 530 pF @ 10 V | - | 18W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
