场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R5013ANJTLMOSFET N-CH 500V 13A LPTS |
7,766 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 13A (Ta) | 10V | 380mOhm @ 6.5A, 10V | 4.5V @ 1mA | 35 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
|
|
R5016ANJTLMOSFET N-CH 500V 16A LPTS |
5,431 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 270mOhm @ 8A, 10V | 4.5V @ 1mA | 50 nC @ 10 V | ±30V | 1800 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
|
|
R5021ANJTLMOSFET N-CH 500V 21A LPTS |
9,857 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | - | 220mOhm @ 10.5A, 10V | 4.5V @ 1mA | 64 nC @ 10 V | - | 2300 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
|
R5205CNDTLMOSFET N-CH 525V 5A CPT3 |
6,995 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 525 V | 5A (Ta) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 1mA | 10.8 nC @ 10 V | ±30V | 320 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
R5207ANDTLMOSFET N-CH 525V 7A CPT3 |
3,401 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 525 V | 7A (Ta) | 10V | 1Ohm @ 3.5A, 10V | 4.5V @ 1mA | 13 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
R6018ANJTLMOSFET N-CH 600V 18A LPTS |
2,020 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 270mOhm @ 9A, 10V | 4.5V @ 1mA | 55 nC @ 10 V | ±30V | 2050 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
|
|
RCD060N25TLMOSFET N-CH 250V 6A CPT3 |
5,901 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 250 V | 6A (Tc) | 10V | 530mOhm @ 3A, 10V | 5V @ 1mA | 15 nC @ 10 V | ±30V | 840 pF @ 25 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
RCD100N20TLMOSFET N-CH 200V 10A CPT3 |
5,442 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 200 V | 10A (Tc) | 10V | 182mOhm @ 5A, 10V | 5.25V @ 1mA | 25 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
RSD045P05TLMOSFET P-CH 45V CPT3 |
7,511 |
|
数据手册 |
- | - | Tape & Reel (TR) | Last Time Buy | - | - | - | 4.5A (Tc) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSD080P05TLMOSFET P-CH 45V 8A CPT3 |
3,226 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 45 V | 8A (Ta) | 4V, 10V | 91mOhm @ 8A, 10V | 3V @ 1mA | 93.4 nC @ 5 V | ±20V | 11000 pF @ 10 V | - | 15W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
RSD221N06TLMOSFET N-CH 60V 22A CPT3 |
7,599 |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Tc) | 4V, 10V | 26mOhm @ 22A, 10V | 3V @ 1mA | 30 nC @ 10 V | ±20V | 1500 pF @ 10 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
RSJ300N10TLMOSFET N-CH 100V 30A LPTS |
2,319 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 30A (Ta) | 4V, 10V | 52mOhm @ 15A, 10V | 2.5V @ 1mA | 50 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | - | - | Surface Mount | LPTS |
.jpg)
|
ES6U42T2RMOSFET P-CH 20V 1A 6WEMT |
2,798 |
|
数据手册 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 2.5V, 4.5V | 390mOhm @ 1A, 4.5V | 2V @ 1mA | 2.1 nC @ 4.5 V | ±12V | 150 pF @ 10 V | Schottky Diode (Body) | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-WEMT |
|
RUE002N05TLMOSFET N-CH 50V 200MA EMT3 |
5,032 |
|
数据手册 |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 1.2V, 4.5V | 2.2Ohm @ 200mA, 4.5V | 1V @ 1mA | - | ±8V | 25 pF @ 10 V | - | 150mW (Ta) | 150°C (TJ) | - | - | Surface Mount | EMT3 |
|
|
RW1C015UNT2RMOSFET N-CH 20V 1.5A 6WEMT |
6,768 |
|
数据手册 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 1.5V, 4.5V | 180mOhm @ 1.5A, 4.5V | 1V @ 1mA | 1.8 nC @ 4.5 V | ±10V | 110 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-WEMT |
|

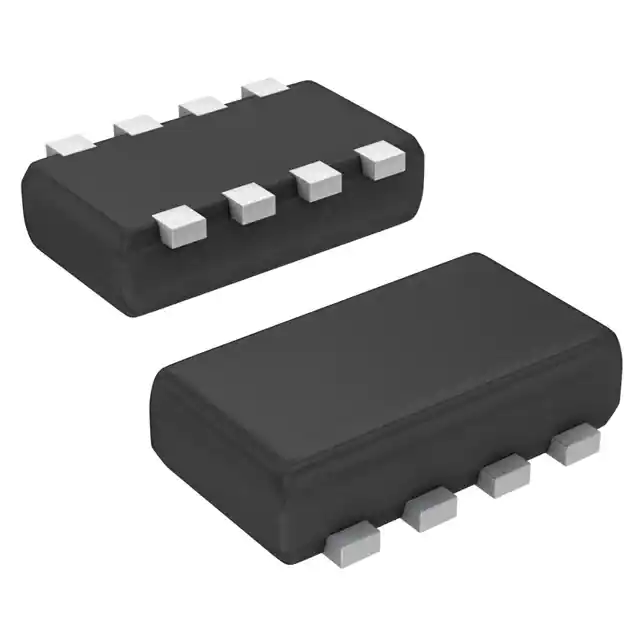

TT8U2TCRMOSFET P-CH 20V 2.4A 8TSST |
8,745 |
|
数据手册 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.4A (Ta) | 1.5V, 4.5V | 105mOhm @ 2.4A, 4.5V | 1V @ 1mA | 6.7 nC @ 4.5 V | ±10V | 850 pF @ 10 V | Schottky Diode (Isolated) | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-TSST |
|
SCH2080KECSICFET N-CH 1200V 40A TO247 |
5,423 |
|
数据手册 |
- | TO-247-3 | Tube | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 40A (Tc) | 18V | 117mOhm @ 10A, 18V | 4V @ 4.4mA | 106 nC @ 18 V | +22V, -6V | 1850 pF @ 800 V | - | 262W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-247 |
|
BUK7C1R2-40EJMOSFET N-CH 40V D2PAK-7 |
6,878 |
|
数据手册 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | D2PAK-7 |
|
|
BUK7C5R4-100EJMOSFET N-CH 100V D2PAK-7 |
8,120 |
|
数据手册 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | D2PAK-7 |
|
|
BUK9C2R2-60EJMOSFET N-CH 60V D2PAK-7 |
9,970 |
|
数据手册 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | D2PAK-7 |
