场效应晶体管（FETs）、MOSFETs
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRF1324S-7PMOSFET N-CH 24V 240A D2PAK |
8,939 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 240A (Tc) | - | 1mOhm @ 160A, 10V | 4V @ 250µA | 252 nC @ 10 V | - | 7700 pF @ 19 V | - | - | - | - | - | Surface Mount | D2PAK (7-Lead) |
|
AUIRF1324STRLMOSFET N-CH 24V 195A D2PAK |
3,400 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 195A (Tc) | 10V | 1.65mOhm @ 195A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 7590 pF @ 24 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRF1404ZLMOSFET N-CH 40V 160A TO262 |
4,182 |
|
数据手册 |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 3.7mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 4340 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
AUIRF1404ZSMOSFET N-CH 40V 160A D2PAK |
8,710 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 3.7mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 4340 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRF1405ZSMOSFET N-CH 55V 150A D2PAK |
5,006 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 150A (Tc) | 10V | 4.9mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 4780 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRF2804MOSFET N-CH 40V 195A TO220 |
4,899 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 2.3mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
AUIRF2804SMOSFET N-CH 40V 195A D2PAK |
7,478 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 2mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRF2804S-7PMOSFET N-CH 40V 240A D2PAK |
4,693 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1.6mOhm @ 160A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 6930 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
AUIRF2907ZMOSFET N-CH 75V 75A TO220AB |
7,031 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 4.5mOhm @ 75A, 10V | 4V @ 250µA | 270 nC @ 10 V | ±20V | 7500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
AUIRF2907ZS7PTLMOSFET N-CH 75V 180A D2PAK |
3,077 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 180A (Tc) | 10V | 3.8mOhm @ 110A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 7580 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
AUIRF3205ZSMOSFET N-CH 55V 75A D2PAK |
8,294 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 6.5mOhm @ 66A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
AUIRF3710ZMOSFET N-CH 100V 59A TO220AB |
6,237 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 18mOhm @ 35A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
AUIRF3710ZSMOSFET N-CH 100V 59A D2PAK |
4,306 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 18mOhm @ 35A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
AUIRF3805L-7PMOSFET N-CH 55V 160A TO262 |
8,817 |
|
数据手册 |
HEXFET® | TO-262-7 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 160A (Tc) | 10V | 2.6mOhm @ 140A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 7820 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
AUIRF3805SMOSFET N-CH 55V 160A D2PAK |
5,167 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 160A (Tc) | 10V | 3.3mOhm @ 75A, 10V | 4V @ 250µA | 290 nC @ 10 V | ±20V | 7960 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|

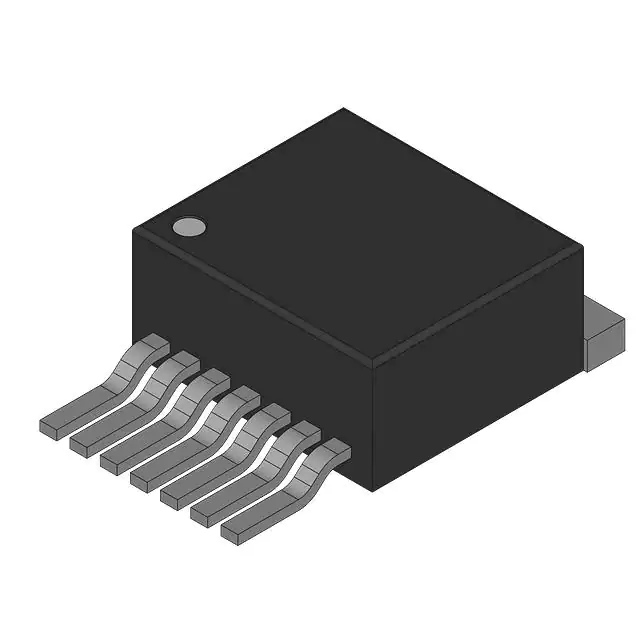

AUIRF3805S-7PMOSFET N-CH 55V 160A D2PAK |
5,387 |
|
数据手册 |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 160A (Tc) | 10V | 2.6mOhm @ 140A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 7820 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
AUIRF4104SMOSFET N-CH 40V 75A D2PAK |
9,432 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
AUIRF4905MOSFET P-CH 55V 74A TO220AB |
5,000 |
|
数据手册 |
HEXFET® | TO-220-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 55 V | 74A (Tc) | 10V | 20mOhm @ 38A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 3400 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
AUIRF540ZSMOSFET N-CH 100V 36A D2PAK |
2,704 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
AUIRF540ZSTRLMOSFET N-CH 100V 36A D2PAK |
4,522 |
|
数据手册 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
