上传BOM单
穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

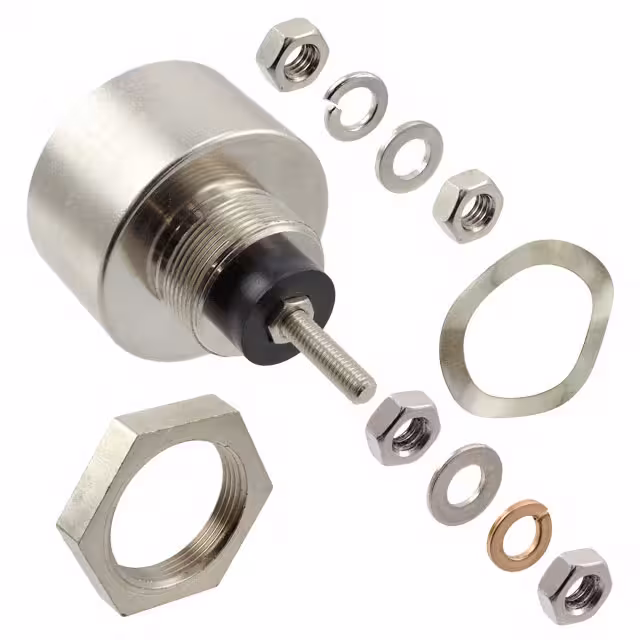

B85121A2475A630CAP FEEDTHRU 4.7UF 600V AXIAL EPCOS - TDK Electronics |
1,247 |
|
数据手册 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 4.7 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 90dB @ 100MHz | - | - | - | 2.165" Dia x 2.362" L (55.00mm x 60.00mm) | - | M6 |
|

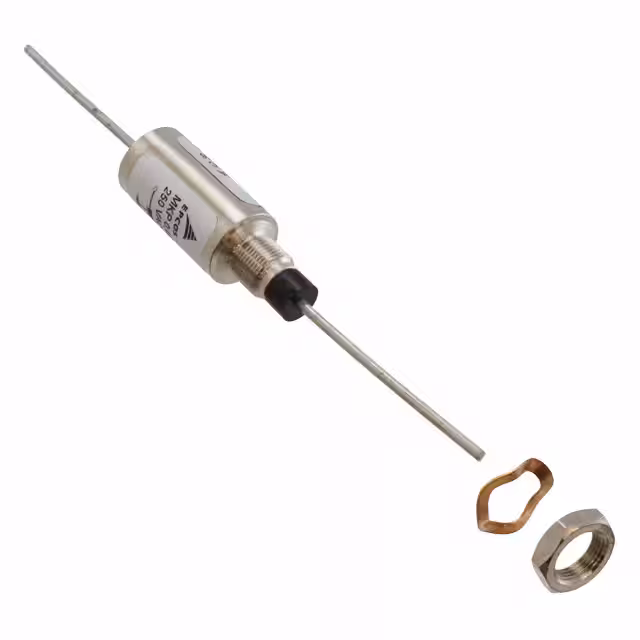

B85121A2253C160CAP FEEDTHRU 0.025UF 600V AXIAL EPCOS - TDK Electronics |
2,459 |
|
数据手册 |
B85121 | Axial, Bushing | Tray | Obsolete | 0.025 µF | ±20% | 600V | 16 A | - | -40°C ~ 85°C | 55dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|

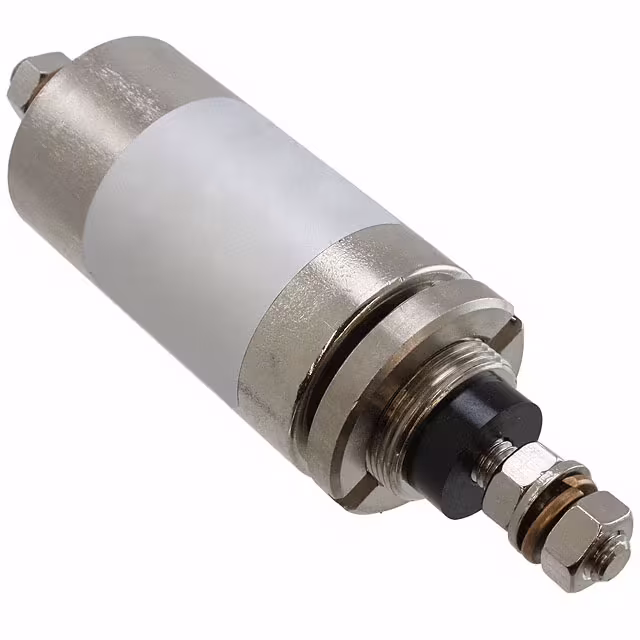

B85121A2105A750CAP FEEDTHRU 1UF 20% 600V AXIAL EPCOS - TDK Electronics |
3,558 |
|
数据手册 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 75 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 1.181" Dia x 2.165" L (30.00mm x 55.00mm) | - | M6 |
|
B85121A2105A630CAP FEEDTHRU 1UF 20% 600V AXIAL EPCOS - TDK Electronics |
1,410 |
|
数据手册 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M6 |
|

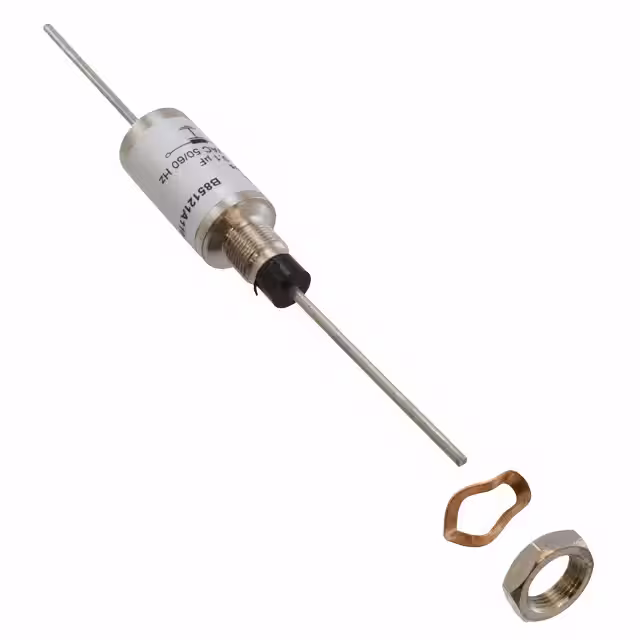

B85121A1104C160CAP FEEDTHRU 0.1UF 160V AXIAL EPCOS - TDK Electronics |
3,377 |
|
数据手册 |
B85121 | Axial, Bushing | Tray | Obsolete | 0.1 µF | ±20% | 160V | 16 A | - | -40°C ~ 85°C | 60dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|
B85121A2105A101CAP FEEDTHRU 1UF 20% 600V AXIAL EPCOS - TDK Electronics |
2,167 |
|
数据手册 |
B85121 | Axial - Threaded Terminals | Bulk | Active | 1 µF | ±20% | 600V | 100 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M8 |
|
|
B85121A2105A201CAP FEEDTHRU 1UF 20% 600V AXIAL EPCOS - TDK Electronics |
4,707 |
|
数据手册 |
B85121 | Axial - Threaded Terminals | Bulk | Active | 1 µF | ±20% | 600V | 200 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M10 |
|
|
B85121A105B250CAP FEEDTHRU 1UF 20% 160V EPCOS - TDK Electronics |
4,033 |
|
数据手册 |
B85121 | Axial, Bushing | Bulk | Obsolete | 1 µF | ±20% | 160V | 25 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | Bolt Mount | 0.787" Dia x 2.362" L (20.00mm x 60.00mm) | - | M12 |
|
|
B85111A2503B500CAP FEEDTHRU 0.05UF 20% 600V EPCOS - TDK Electronics |
1,047 |
|
数据手册 |
B85111 | Axial - Threaded Terminals | Bulk | Obsolete | 0.05 µF | ±20% | 600V | 50 A | - | -40°C ~ 85°C | 60dB @ 100MHz | - | - | Bolt Mount | 0.945" Dia x 1.772" L (24.00mm x 45.00mm) | - | M6 |
|
|
B85121A2103B250CAP FEEDTHRU 0.01UF 20% 600V EPCOS - TDK Electronics |
4,134 |
|
数据手册 |
B85121 | Axial, Bushing | Bulk | Obsolete | 10000 pF | ±20% | 600V | 25 A | - | -40°C ~ 85°C | - | - | - | Bolt | 0.787" Dia x 2.362" L (20.00mm x 60.00mm) | - | M12 |
