穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

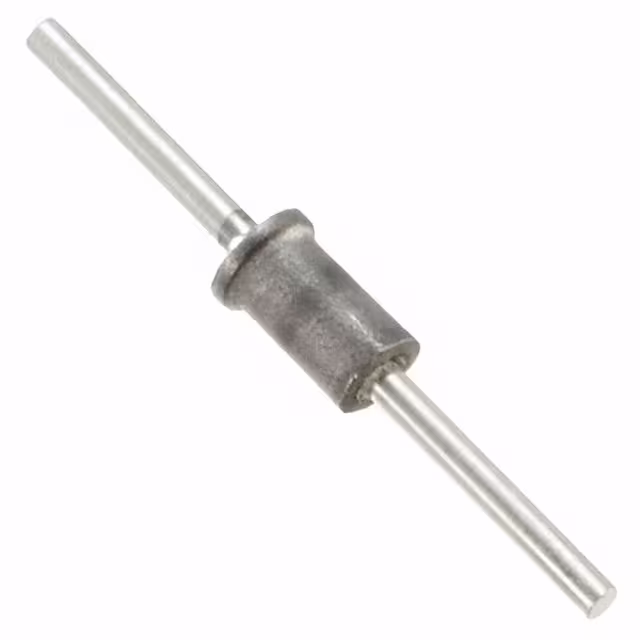

2463-002-X5U0-152PCAP FEEDTHRU 1500PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,159 |
|
数据手册 |
2463 | Axial, Shoulder | Bulk | Active | 1500 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 85°C | 22dB @ 100MHz | - | - | Chassis Mount | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | - | - |
|
2463-002-X5U0-152PLFCAP FEEDTHRU 1500PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,698 |
|
数据手册 |
2463 | Axial, Shoulder | Bulk | Active | 1500 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 85°C | 22dB @ 100MHz | - | - | Chassis Mount | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | - | - |
|
|
2463-002-X5U0-471PCAP FEEDTHRU 470PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,016 |
|
数据手册 |
2463 | Axial, Shoulder | Bulk | Active | 470 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 85°C | 12dB @ 100MHz | - | - | Chassis Mount | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | - | - |
|
|
2463-002-X5U0-471PLFCAP FEEDTHRU 470PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,985 |
|
数据手册 |
2463 | Axial, Shoulder | Bulk | Active | 470 pF | 0%, +100% | 200V | 10 A | - | -55°C ~ 85°C | 12dB @ 100MHz | - | - | Chassis Mount | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | - | - |
|
|
2463-002-X5U0-102MTUBULAR FEED-THRU CAPACITOR Tusonix a Subsidiary of CTS Electronic Components |
2,878 |
|
数据手册 |
2463 | Axial | Bulk | Active | 1000 pF | ±20% | 200V | - | - | -55°C ~ 125°C | - | X5U | - | Through Hole | 0.099" Dia x 0.155" L (2.51mm x 3.94mm) | - | - |
|
|
2461-001-Y5U0-102AATUBULAR FEED-THRU CAPACITOR Tusonix a Subsidiary of CTS Electronic Components |
4,437 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2461-001-X7V0-102AATUBULAR FEED-THRU CAPACITOR Tusonix a Subsidiary of CTS Electronic Components |
4,549 |
|
数据手册 |
2461 | Axial | Bulk | Active | 1000 pF | - | 100V | 20 A | - | -55°C ~ 125°C | 20dB @ 100MHz | X7V | - | Through Hole | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|
|
2463-002-X5U0-102MLFCAP FEEDTHRU 1000PF 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,435 |
|
数据手册 |
2463 | Axial, Shoulder | Bulk | Active | 1000 pF | ±20% | 200V | 10 A | - | -55°C ~ 85°C | - | - | - | Chassis Mount | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | - | - |
|
|
2461-000-X7V0-102PCAP FEEDTHRU 1000PF 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,092 |
|
数据手册 |
2461 | Axial, Shoulder - No Leads | Bulk | Active | 1000 pF | 0%, +100% | 100V | - | - | -55°C ~ 125°C | 20dB @ 100MHz | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|
|
2461-001-X7V0-102PCAP FEEDTHRU 1000PF 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,458 |
|
数据手册 |
2461 | Axial, Shoulder | Bulk | Active | 1000 pF | 0%, +100% | 100V | 20 A | - | -55°C ~ 125°C | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
