穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2425-018-X7R0-101MLFCAP FEEDTHRU 100PF 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,152 |
|
数据手册 |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | 100 pF | ±20% | 100V | 20 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
|

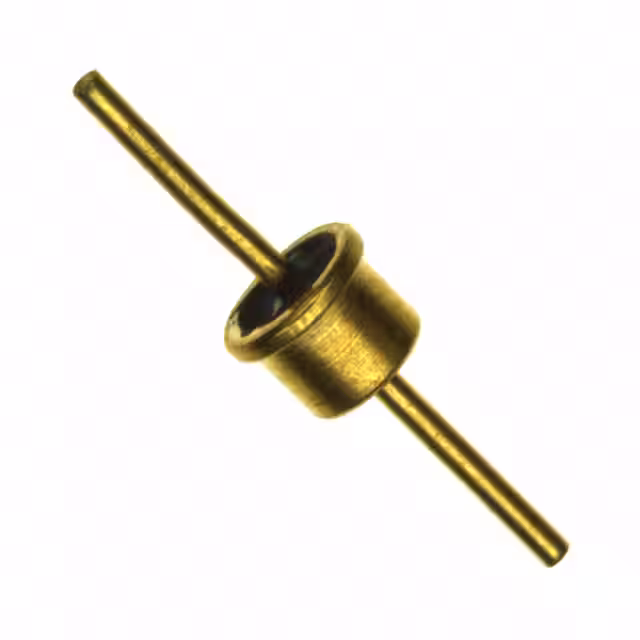

4300-005LFCAP FEEDTHRU 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
100 |
|
数据手册 |
4300 | Axial | Bulk | Active | - | - | 50V | 5 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

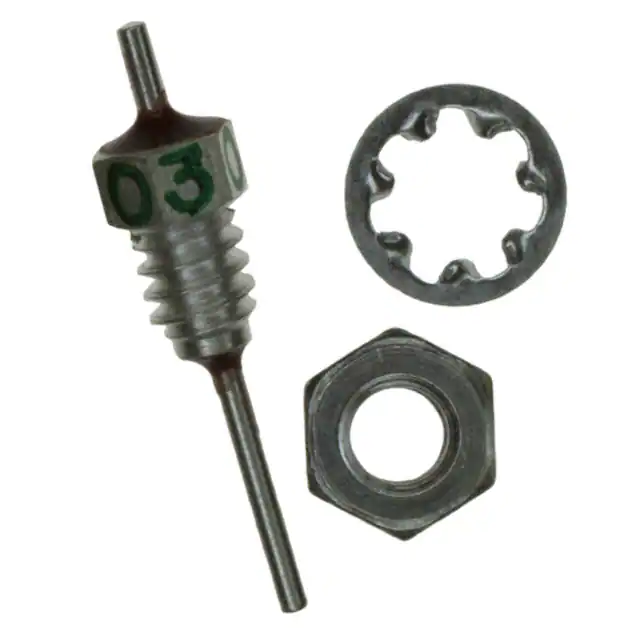

4403-030LFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,418 |
|
数据手册 |
4403 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|

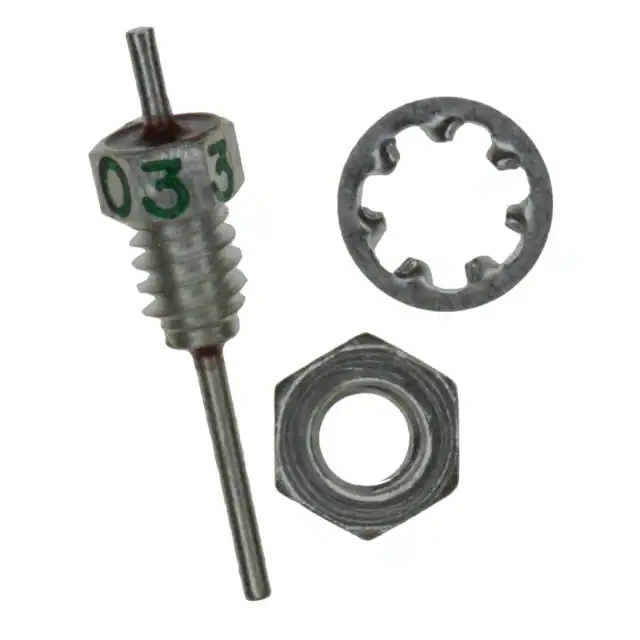

4403-033LFCAP FEEDTHRU 100V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
1,328 |
|
数据手册 |
4403 | Axial, Bushing | Tray | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 25dB @ 100MHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|

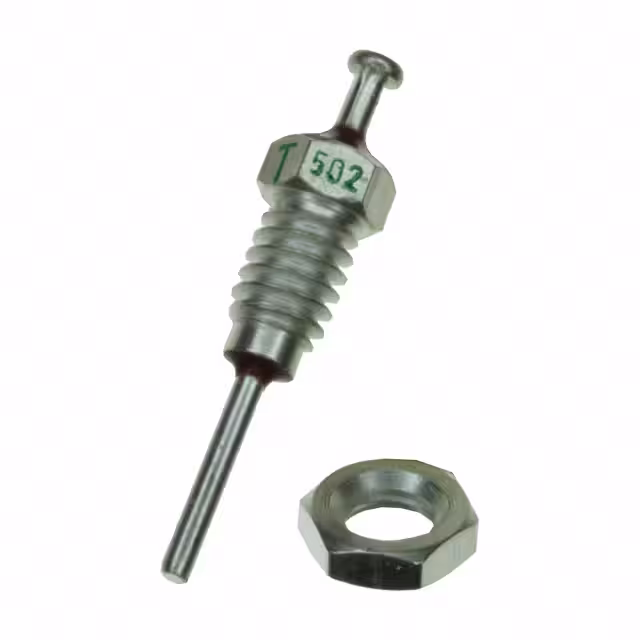

2425-001-X5W0-502AALFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,732 |
|
数据手册 |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | - | - | 200V | 20 A | - | -55°C ~ 85°C | - | X5W | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
|
2450-001-X5U0-102PLFCAP FEEDTHRU 1000PF 500V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,336 |
|
数据手册 |
2450 | Axial, Discoidal - 1 Notched lead | Bulk | Active | 1000 pF | 0%, +100% | 500V | 20 A | - | -55°C ~ 85°C | 20dB @ 100MHz | X5U | - | Chassis Mount | 0.281" Dia x 0.186" L (7.14mm x 4.72mm) | - | - |
|

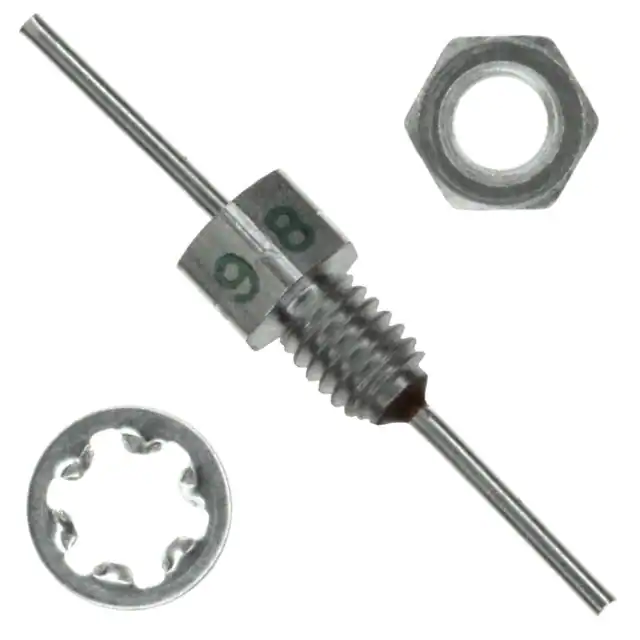

4400-098LFCAP FEEDTHRU 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,681 |
|
数据手册 |
4400 | Axial, Bushing | Bulk | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 42dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|

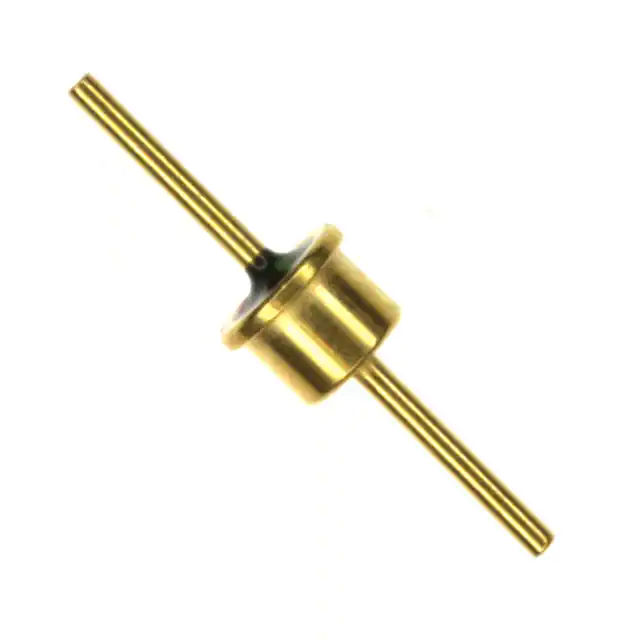

4300-013LFCAP FEEDTHRU 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
3,392 |
|
数据手册 |
4300 | Axial | Bulk | Active | - | - | 50V | 5 A | - | -55°C ~ 125°C | 42dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

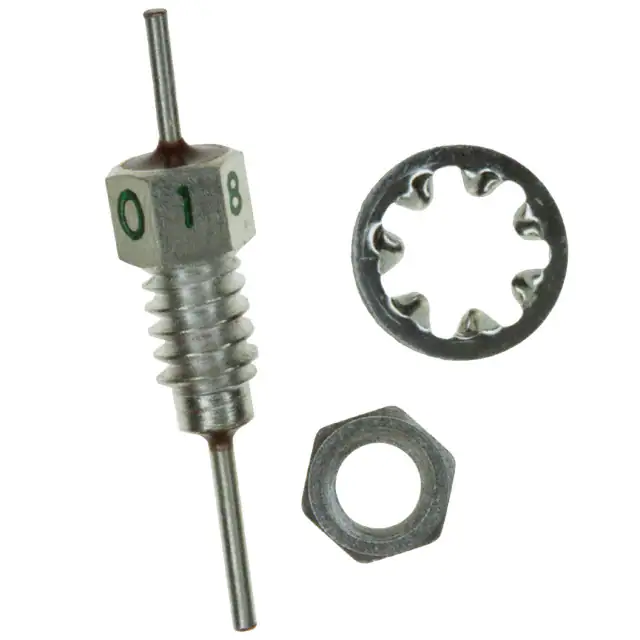

4402-018LFCAP FEEDTHRU 50V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
2,076 |
|
数据手册 |
4402 | Axial, Bushing | Tray | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 47dB @ 100MHz | - | - | - | 0.156" Dia x 0.333" L (3.96mm x 8.45mm) | - | 6-32 |
|
2425-001-X5U0-102AALFCAP FEEDTHRU 200V AXIAL Tusonix a Subsidiary of CTS Electronic Components |
4,469 |
|
数据手册 |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | - | - | 200V | 20 A | - | -55°C ~ 85°C | - | X5U | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
