穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1609992-3CAP FEEDTHRU 0.047UF 130V AXIAL TE Connectivity Corcom Filters |
2,570 |
|
数据手册 |
DFC | Axial - Threaded Terminals | Bulk | Obsolete | 0.047 µF | - | 130V | 16 A | - | -40°C ~ 60°C | 50dB @ 100MHz | - | Y4 | - | 0.787" Dia x 1.181" L (20.00mm x 30.00mm) | - | M4 |
|
1609992-6CAP FEEDTHRU 0.01UF 130V AXIAL TE Connectivity Corcom Filters |
4,442 |
|
数据手册 |
DFC | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 130V | 32 A | - | -40°C ~ 60°C | 45dB @ 100MHz | - | Y4 | - | 0.787" Dia x 0.709" L (20.00mm x 18.00mm) | - | M4 |
|

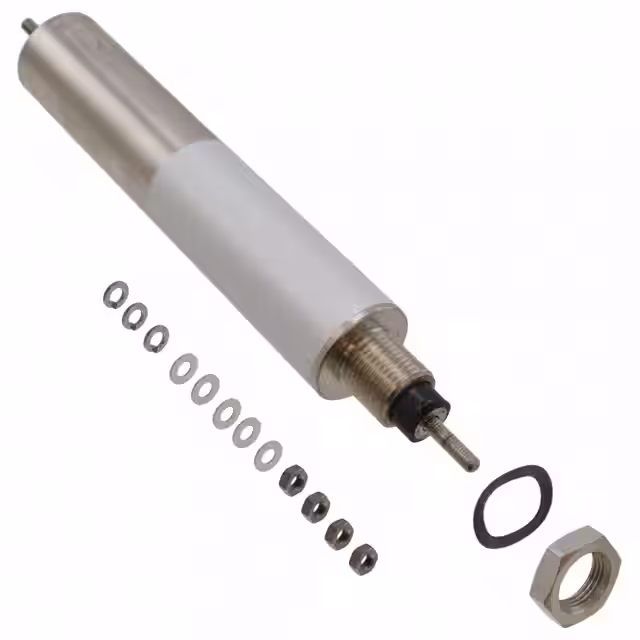

1-1609991-8CAP FEEDTHRU 0.047UF 130V AXIAL TE Connectivity Corcom Filters |
2,634 |
|
数据手册 |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 0.047 µF | - | 130V | 10 A | 9mOhm | -40°C ~ 60°C | - | - | - | - | 0.787" Dia x 3.898" L (20.00mm x 99.00mm) | - | M3 |
|

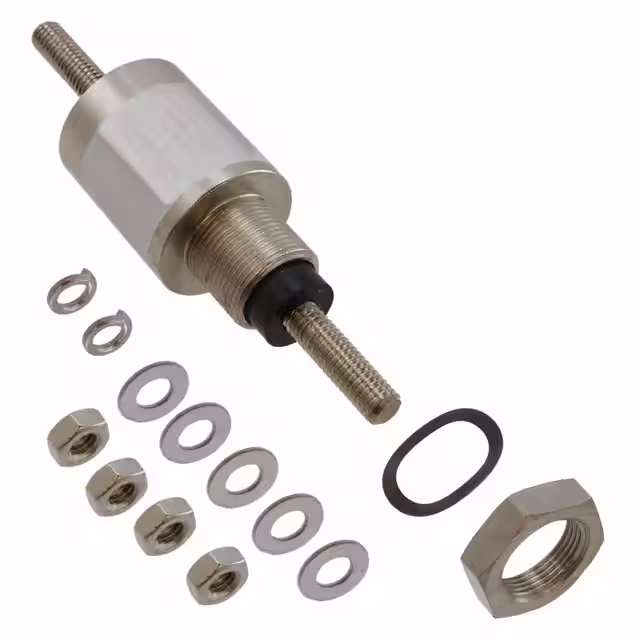

1-1609990-4CAP FEEDTHRU 0.01UF 250V AXIAL TE Connectivity Corcom Filters |
4,111 |
|
数据手册 |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 250V | 63 A | - | -40°C ~ 60°C | 45dB @ 100MHz | - | Y2 | - | 0.984" Dia x 1.181" L (25.00mm x 30.00mm) | - | M6 |
|

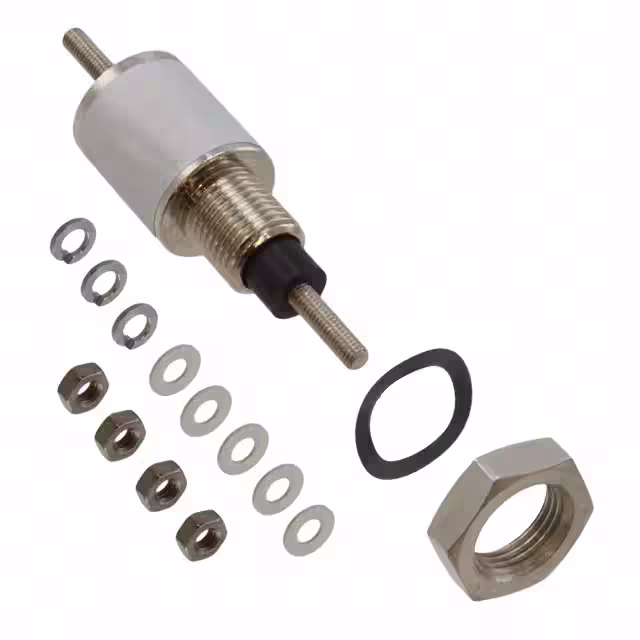

1609990-2CAP FEEDTHRU 4700PF 250V AXIAL TE Connectivity Corcom Filters |
4,331 |
|
数据手册 |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 4700 pF | - | 250V | 10 A | - | -40°C ~ 60°C | 43dB @ 100MHz | - | Y2 | - | 0.591" Dia x 0.709" L (15.00mm x 18.00mm) | - | M3 |
|
1609990-5CAP FEEDTHRU 0.047UF 250V AXIAL TE Connectivity Corcom Filters |
4,322 |
|
数据手册 |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 0.047 µF | - | 250V | 16 A | - | -40°C ~ 60°C | 50dB @ 100MHz | - | Y2 | - | 0.787" Dia x 1.181" L (20.00mm x 30.00mm) | - | M4 |
|
1609990-8CAP FEEDTHRU 4700PF 250V AXIAL TE Connectivity Corcom Filters |
3,615 |
|
数据手册 |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 4700 pF | - | 250V | 32 A | - | -40°C ~ 60°C | 43dB @ 100MHz | - | Y2 | - | 0.787" Dia x 0.709" L (20.00mm x 18.00mm) | - | M4 |
|

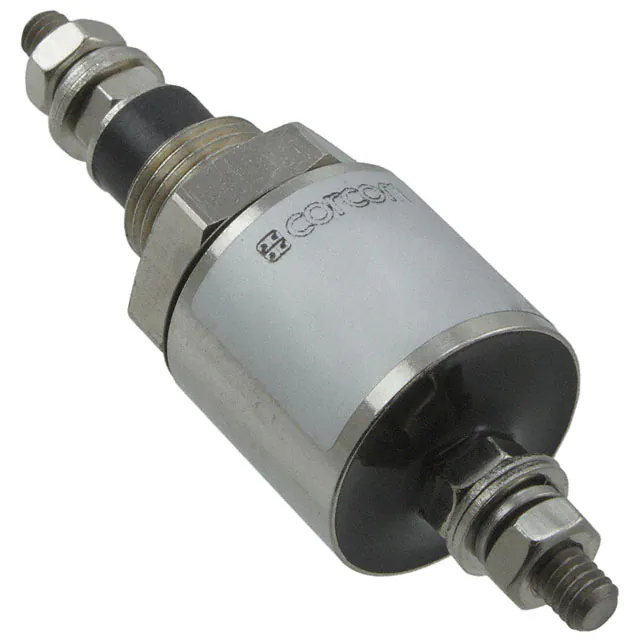

1609990-9CAP FEEDTHRU 0.01UF 250V AXIAL TE Connectivity Corcom Filters |
4,113 |
|
数据手册 |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 250V | 32 A | - | -40°C ~ 60°C | 45dB @ 100MHz | - | Y2 | - | 0.787" Dia x 0.709" L (20.00mm x 18.00mm) | - | M4 |
|
1609991-3CAP FEEDTHRU 0.01UF 130V AXIAL TE Connectivity Corcom Filters |
4,719 |
|
数据手册 |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 10000 pF | - | 130V | 32 A | 4mOhm | -40°C ~ 60°C | - | - | - | - | 0.787" Dia x 2.402" L (20.00mm x 61.00mm) | - | M4 |
|
1-1609991-1CAP FEEDTHRU 0.022UF 130V AXIAL TE Connectivity Corcom Filters |
2,258 |
|
数据手册 |
FFA | Axial - Threaded Terminals | Bulk | Obsolete | 0.022 µF | - | 130V | 16 A | 4mOhm | -40°C ~ 60°C | - | - | - | - | 0.984" Dia x 2.717" L (25.00mm x 69.00mm) | - | M4 |
