穿心电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

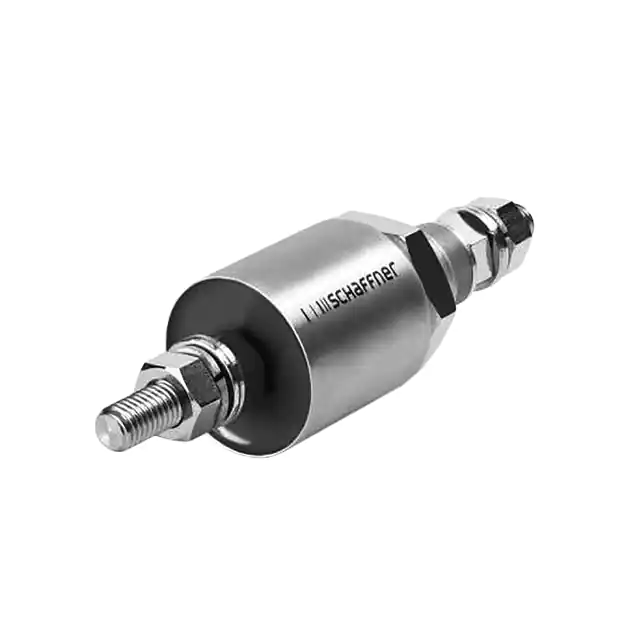

FN7562-32-M4CAP FEEDTHRU 0.1UF 650V AXIAL Schaffner EMC Inc. |
1,927 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.1 µF | ±20% | 650V | 32 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | Bolt Mount | 0.787" Dia x 1.654" L (20.00mm x 42.00mm) | - | - |
|

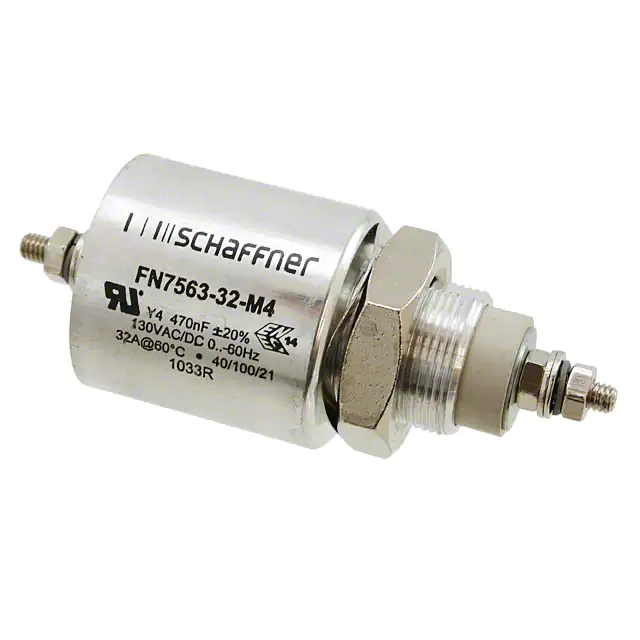

FN7563-32-M4CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
2,972 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 32 A | 0.63mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 3.228" L (32.00mm x 82.00mm) | - | M20x1 |
|
FN7561-200-M10CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
4,845 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 200 A | 0.16mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 5.118" L (32.00mm x 130.00mm) | - | M24x1 |
|

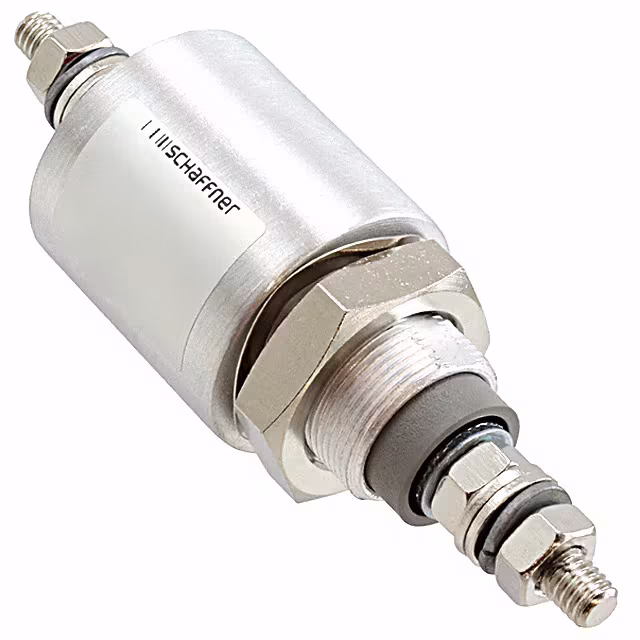

FN7563-63-M6CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
3,097 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 63 A | 0.43mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 3.898" L (32.00mm x 99.00mm) | - | M20x1 |
|

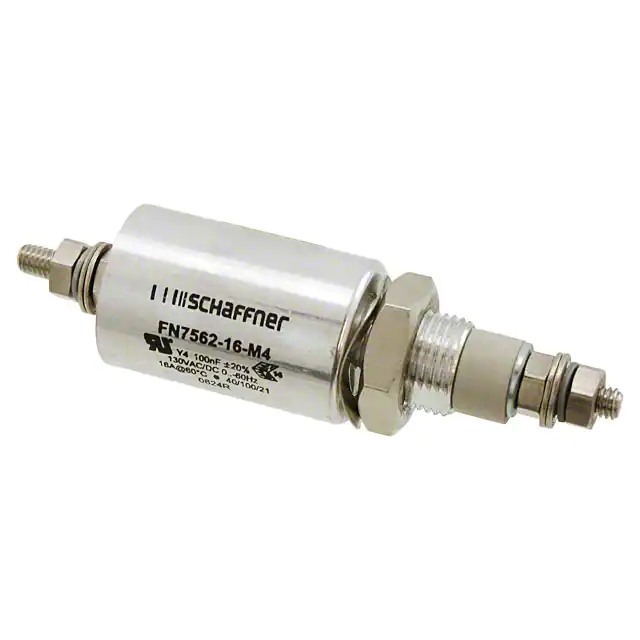

FN7562-16-M4CAP FEEDTHRU 0.1UF 650V AXIAL Schaffner EMC Inc. |
3,233 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.1 µF | ±20% | 650V | 16 A | 0.62mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 0.787" Dia x 2.953" L (20.00mm x 75.00mm) | - | M12x1 |
|

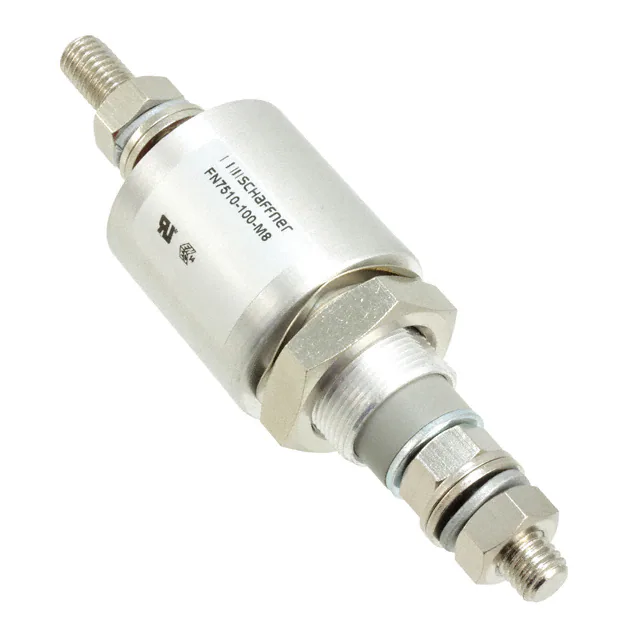

FN7510-100-M8CAP FEEDTHRU 0.047UF 1KV AXIAL Schaffner EMC Inc. |
3,555 |
|
数据手册 |
FN 751X | Axial - Threaded Terminals | Tray | Active | 0.047 µF | ±20% | 1000V (1kV) | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | - | M20x1 |
|
FN7562-200-M10CAP FEEDTHRU 1UF 20% 650V AXIAL Schaffner EMC Inc. |
3,078 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 1 µF | ±20% | 650V | 200 A | 0.18mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.496" Dia x 5.787" L (38.00mm x 147.00mm) | - | M24x1 |
|

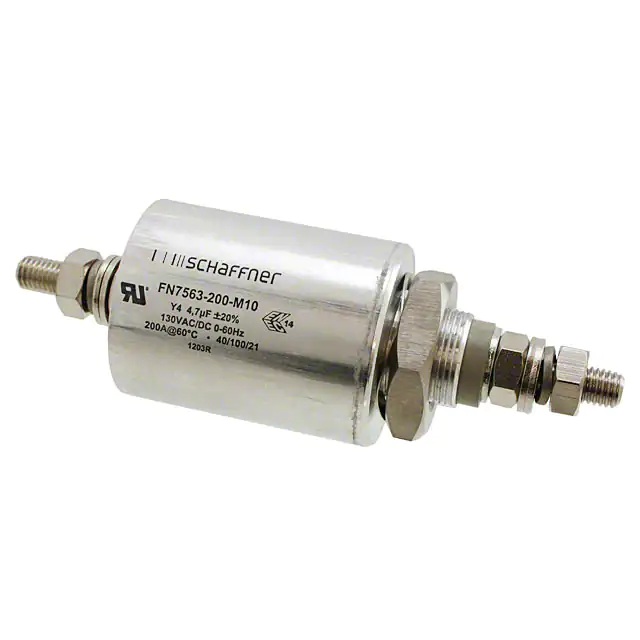

FN7563-200-M10CAP FEEDTHRU 4.7UF 650V AXIAL Schaffner EMC Inc. |
3,726 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 4.7 µF | ±20% | 650V | 200 A | 0.14mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 2.126" Dia x 6.496" L (54.00mm x 165.00mm) | - | M27x1.5 |
|

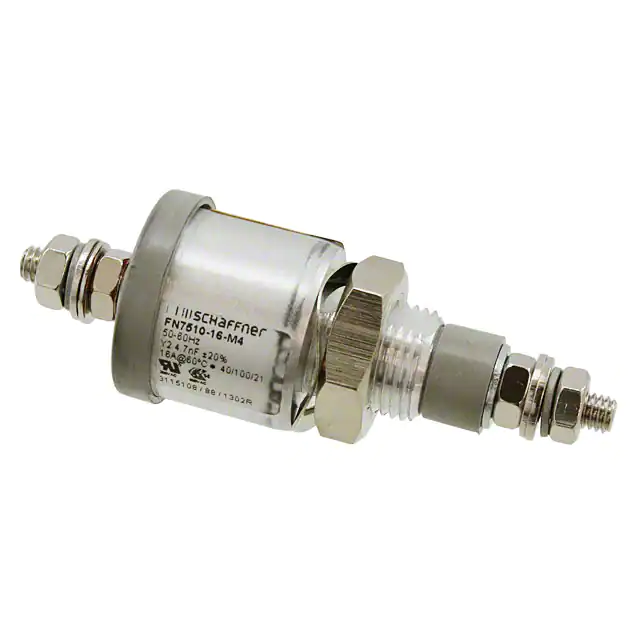

FN7510-16-M4CAP FEEDTHRU 4700PF 1KV AXIAL Schaffner EMC Inc. |
1,637 |
|
数据手册 |
FN 751X | Axial - Threaded Terminals | Tray | Active | 4700 pF | ±20% | 1000V (1kV) | 16 A | 0.5mOhm (Typ) | -40°C ~ 100°C | - | - | Y2 | - | 0.864" Dia x 2.480" L (21.95mm x 63.00mm) | - | M12x1 |
|

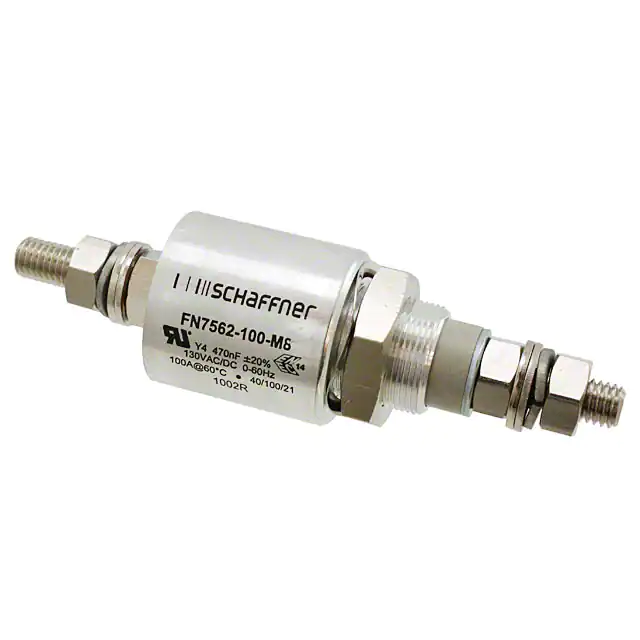

FN7562-100-M8CAP FEEDTHRU 0.47UF 650V AXIAL Schaffner EMC Inc. |
1,463 |
|
数据手册 |
FN 756X | Axial - Threaded Terminals | Tray | Active | 0.47 µF | ±20% | 650V | 100 A | 0.23mOhm (Typ) | -40°C ~ 100°C | - | - | Y4 | - | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | - | M20x1 |
