风扇电源线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 样式 | 第一连接器 | 第二连接器 | 长度 | 适配端子尺寸 | 导体数量 | 电线类型 | 线规 | 认证机构标记 | 电压额定值 | 电流额定值（安培） | 工作温度 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
07145-36FAN CORD 36" |
3,006 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 36.0" (914.4mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07190-80FAN CORD 80" |
2,669 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 80.0" (2.03m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
HP75-72FAN CORD 45DEG 72" 18/2 SPT1 |
3,418 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Cut End | 72.0" (1.83m) | - | 2 | SPT-1 | - | cURus | 300 V | - | 105°C | - |
|
C90-48FAN CORD 90DEG 48" |
3,877 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 48.0" (1.22m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
|
C90-72FAN CORD 90DEG 72" |
4,706 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 72.0" (1.83m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
07100-60FAN CORD 60" |
1,130 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 60.0" (1.52m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
|
07190-80POWER CORD FAN RIGHT ANGLE 80" |
1,266 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 80.0" (2.03m) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
07145-80FAN CORD 80" |
2,589 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 80.0" (2.03m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07100-96FAN CORD 96" |
1,107 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 96.0" (2.44m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
HP75-12-72PFAN CORD 45DEG 2POS 1-15PLUG |
100 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° (2) | NEMA 1-15 Plug | 84.0" (2.13m) | - | 2 | SPT-1 | - | UL | 300 V | - | 105°C | Daisy Chain |
|

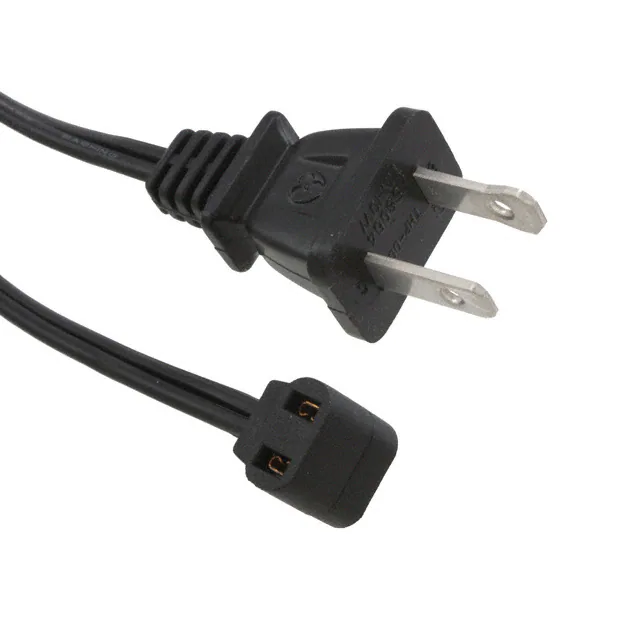

C90-80PFAN CORD 90DEG 80" W/AC PLUG |
4,934 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 90°, Right Angle | NEMA 1-15 Plug | 80.0" (2.03m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|

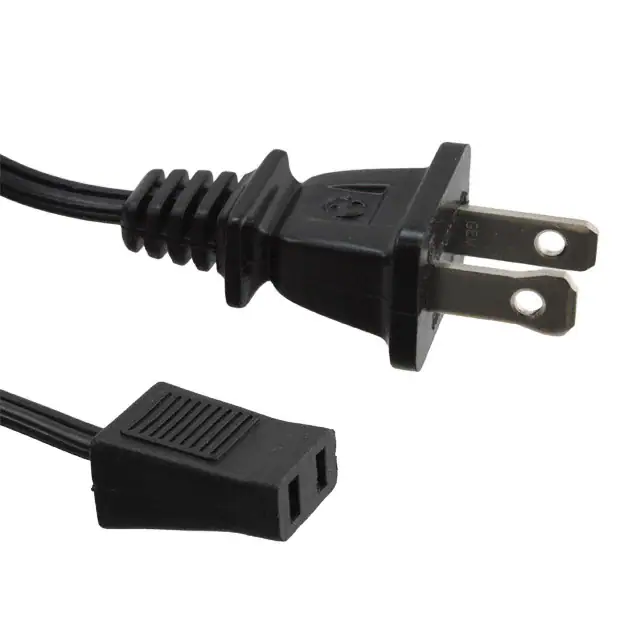

C180-48PFAN CORD 180DEG 48" W/AC PLUG |
1,824 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 180°, Straight | NEMA 1-15 Plug | 48.0" (1.22m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
07145-60PFAN CORD W/ WALL PLUG 60" |
4,175 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 60.0" (1.52m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
|
07145-36PFAN CORD W/ WALL PLUG 36" |
1,926 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 36.0" (914.4mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|

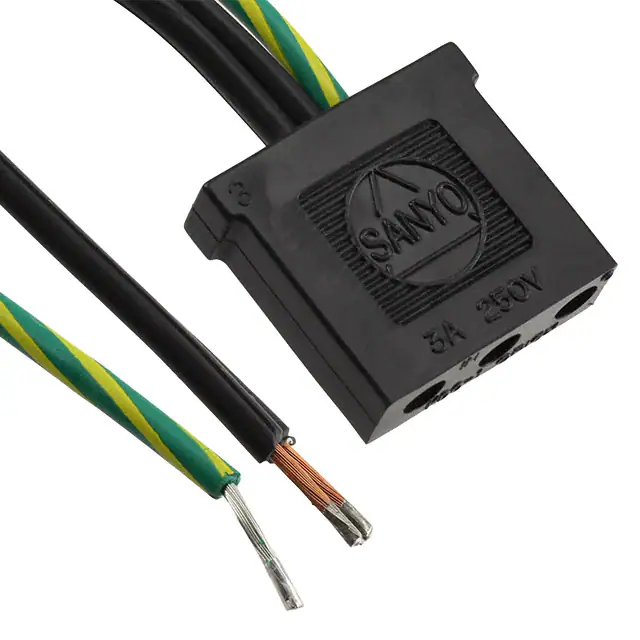

489-007-L10FAN CORD 120X38MM 1M (UL/CSA) |
4,353 |
|
数据手册 |
- | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 3 | UL Style 1015 | 18 AWG | CSA, UL | - | - | - | - |
|
GHP75-72PGREEN FAN CORD 72" NEMA 1-15PLUG |
2,111 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 72.0" (1.83m) | - | 2 | SPT-1 | - | cURus | 300 V | - | 105°C | Thermostat |
|

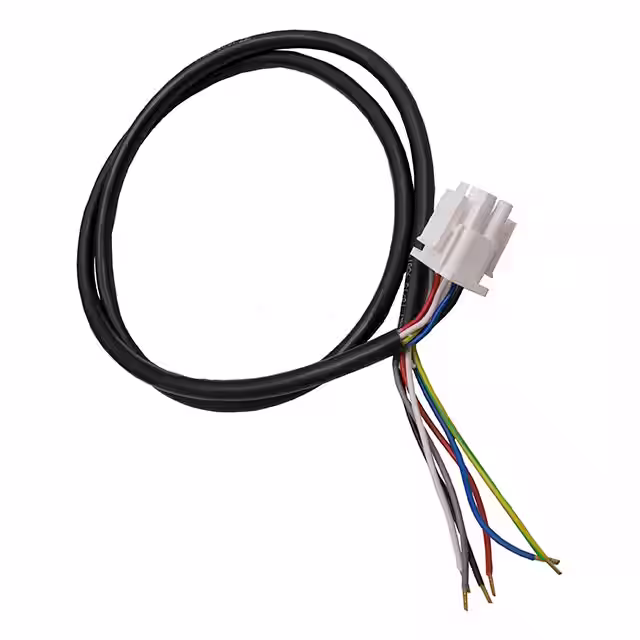

21959-4-1040CABLE-D2E146 HS97/HR93 |
4,632 |
|
数据手册 |
- | Bulk | Active | Male Plug to Cable | Fan Terminal Plug 180°, Straight | Open Wires | 39.4" (1.00m) | - | 6 | H03VV-F6G0 | - | - | - | - | - | - |
|
07190-12FAN CORD 12" |
4,922 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 12.0" (304.8mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07199-SP072POWER CORD W/PLUG FAN T-TYPE 72" |
100 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle, T-Style | NEMA 1-15 Plug | 72.0" (1.83m) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
|
07190-120FAN CORD 120" |
3,189 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 120.0" (3.05m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
