风扇电源线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 样式 | 第一连接器 | 第二连接器 | 长度 | 适配端子尺寸 | 导体数量 | 电线类型 | 线规 | 认证机构标记 | 电压额定值 | 电流额定值（安培） | 工作温度 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

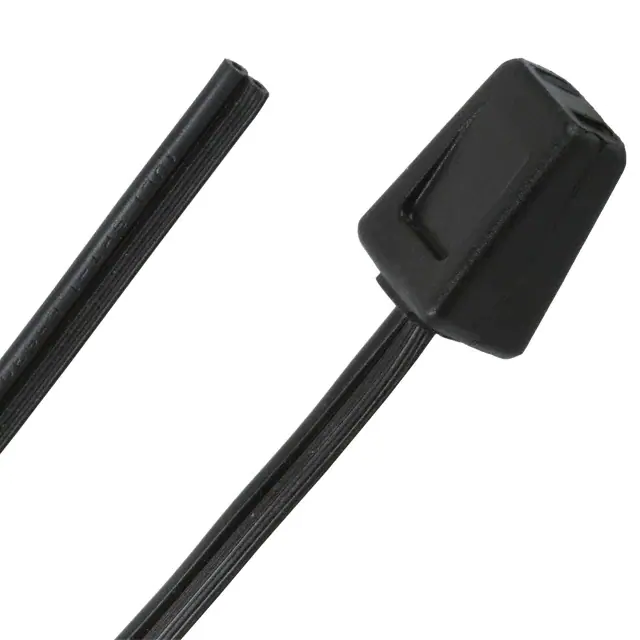

07100-24POWER CORD FAN STRAIGHT 24" |
3,054 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 24.0" (609.6mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|

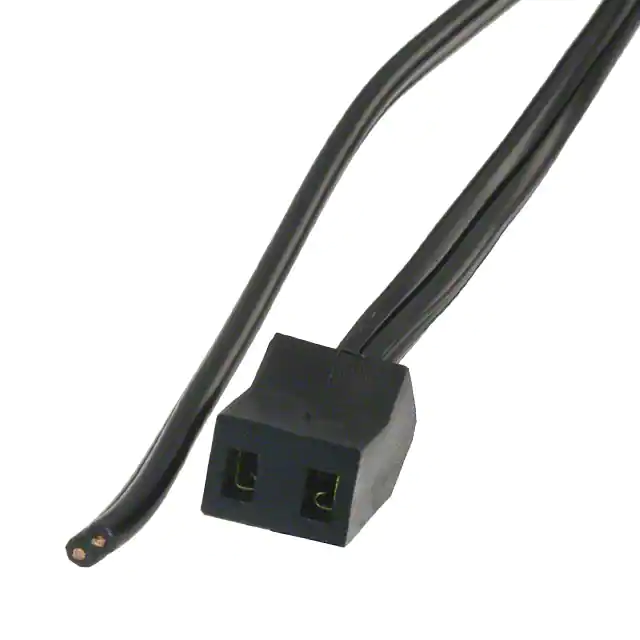

C45-24FAN CORD 45DEG 24" |
3,617 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 24.0" (609.6mm) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|

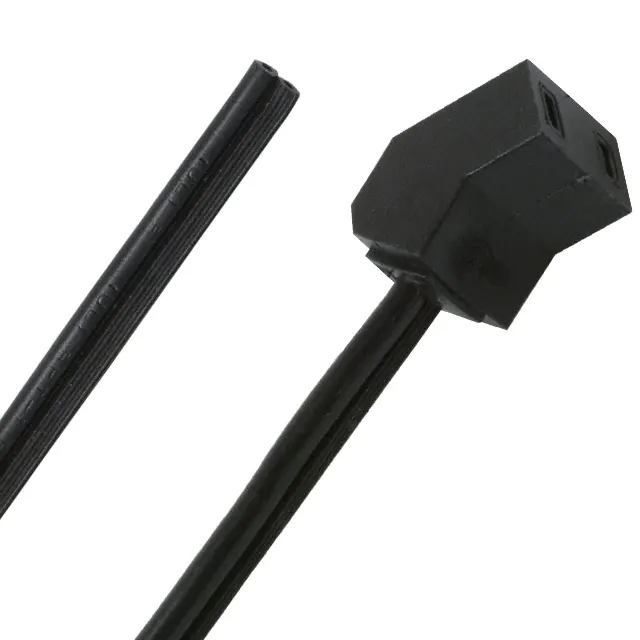

07145-36POWER CORD FAN 45DEG ANGLE 36" |
1,618 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 36.0" (914.4mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
|
07145-60POWER CORD FAN 45DEG ANGLE 60" |
416 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 60.0" (1.52m) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
|
C45-48FAN CORD 45DEG 48" |
1,622 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 48.0" (1.22m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
07145-SP072POWER CORD W/PLUG FAN 45DEG 72" |
783 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 72.0" (1.83m) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
C45-3DC-24FAN CORD 45DEG 3POS 24" |
982 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° (3) | Open Wires | 12.0" (304.8mm) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | Daisy Chain |
|

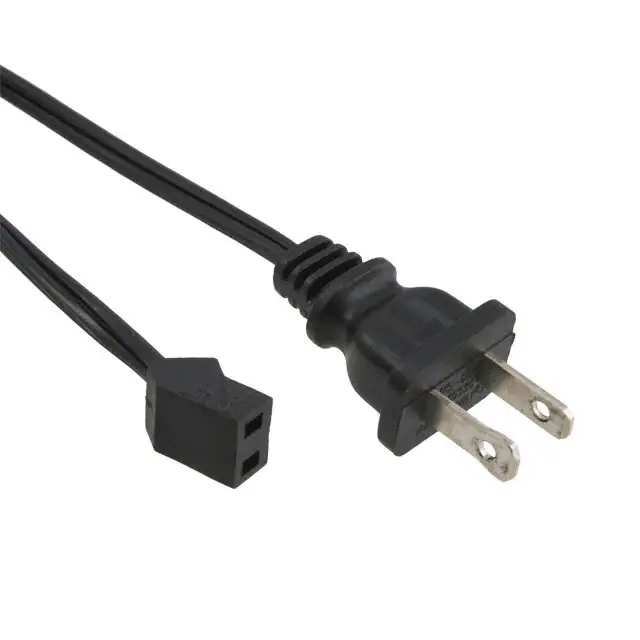

C45-144PFAN CORD 45DEG 144" W/AC PLUG |
813 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 144.0" (3.66m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
|
C45-144FAN CORD 45DEG 144" |
9,079 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 144.0" (3.66m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|

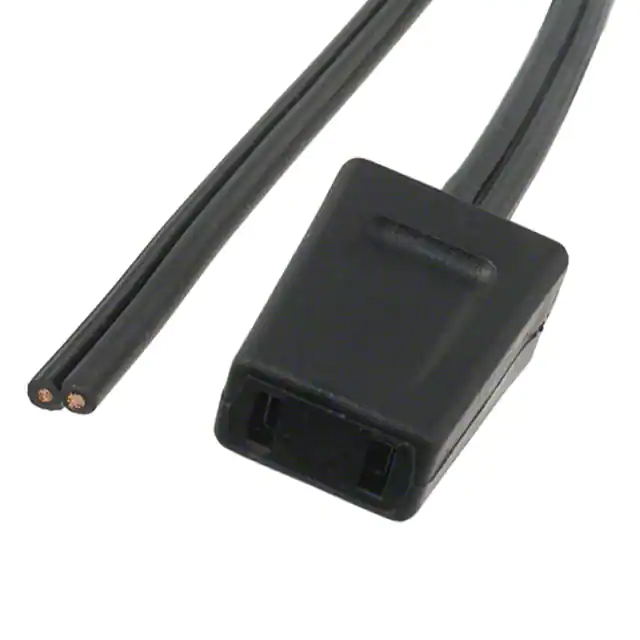

LZ120CONNECTING CABLE W/ MOLDED PLUG |
619 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Wire End Ferrules | 24.0" (609.6mm) | 2.8 x 0.5 | 2 | - | 20 AWG | - | - | - | - | - |
|

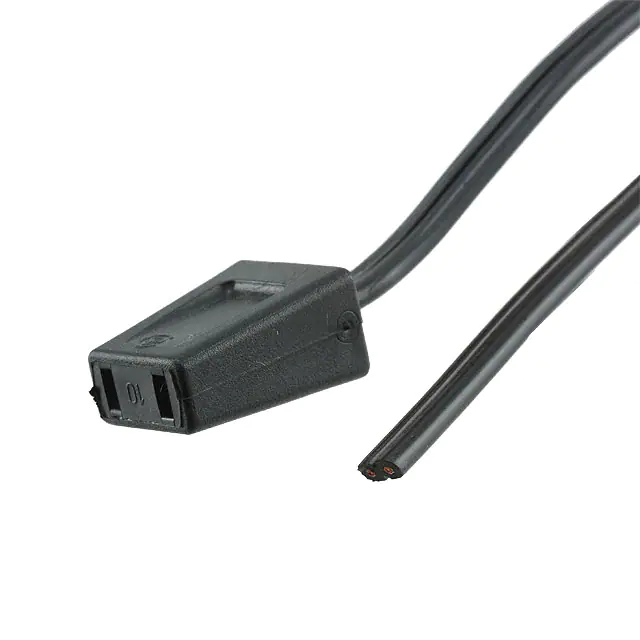

LZ126CONNECTING CABLE W/ MOLDED PLUG |
1,220 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Wire End Ferrules | 39.4" (1.00m) | 2.8 x 0.5 | 2 | - | 20 AWG | - | - | - | - | - |
|
|
C45-12FAN CORD 45DEG 12" |
2,642 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 12.0" (304.8mm) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
|
07145-12POWER CORD FAN 45DEG ANGLE 12" |
844 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 12.0" (304.8mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|

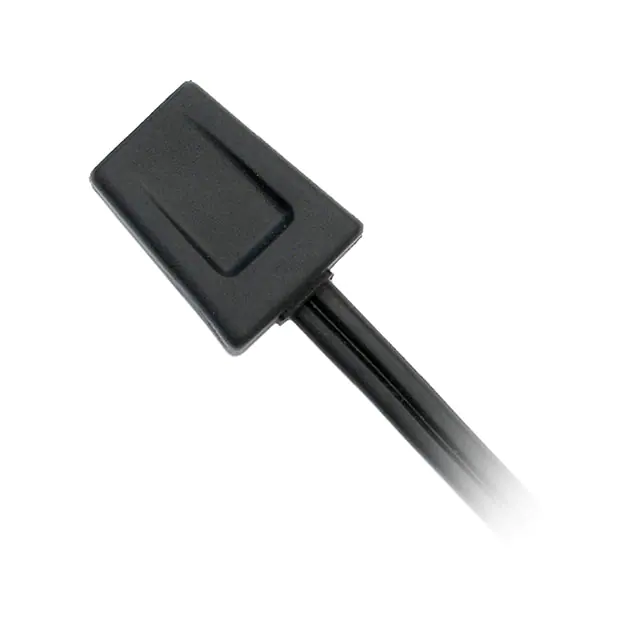

HP100-24FAN CORD 24" 18/2 SPT1 300V |
4,424 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Cut End | 24.0" (609.6mm) | - | 2 | SPT-1 | - | cURus | 300 V | - | 105°C | - |
|

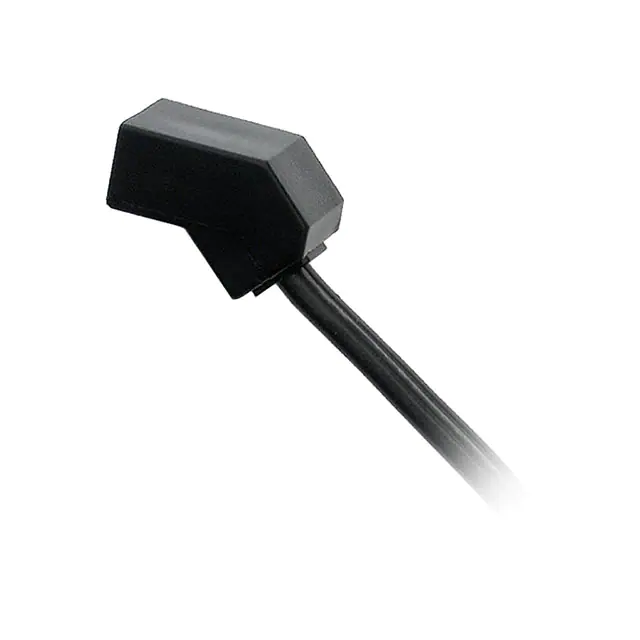

HP75-24FAN CORD 45DEG 24" 18/2 SPT1 |
1,618 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Cut End | 24.0" (609.6mm) | - | 2 | SPT-1 | - | cURus | 300 V | - | 105°C | - |
|

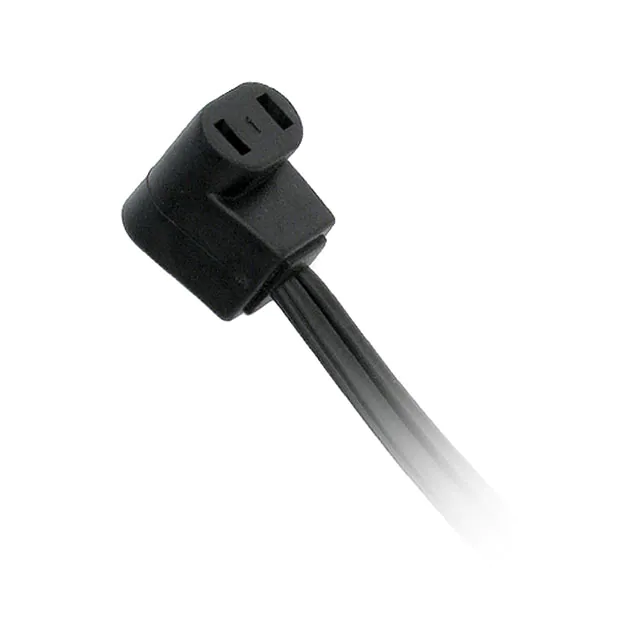

HP50-24FAN CORD 24" 18/2 SPT1 300V |
1,541 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Cut End | 24.0" (609.6mm) | - | 2 | SPT-1 | 18 AWG | UL | 300 V | - | 105°C | - |
|
07190-24POWER CORD FAN RIGHT ANGLE 24" |
2,255 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Open Wires | 24.0" (609.6mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
|
HP50-36FAN CORD 36" 18/2 SPT1 300V |
505 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 90°, Right Angle | Cut End | 36.0" (914.4mm) | - | 2 | SPT-1 | 18 AWG | UL | 300 V | - | 105°C | - |
|
|
07145-SP036POWER CORD W/PLUG FAN 45DEG 36" |
1,692 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 36.0" (914.4mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
|
C45-36FAN CORD 45DEG 36" |
571 |
|
数据手册 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 36.0" (914.4mm) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
