直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASFN82371FAN AXIAL 80X25MM 12VDC WIRE |
3,529 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.097 in H2O (24.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 27.0dB(A) | 2.04 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | 0.176 lb (79.83 g) |
|
|
ASFN82391FAN AXIAL 80X25MM 12VDC WIRE |
4,265 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.097 in H2O (24.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 2.04 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | 0.176 lb (79.83 g) |
|
|
ASFN84372FAN AXIAL 80X25MM 24VDC WIRE |
1,738 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 22.0dB(A) | 1.44 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN84392FAN AXIAL 80X25MM 24VDC WIRE |
2,897 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 1.44 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN86371FAN AXIAL 80X25MM 12VDC WIRE |
4,271 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.0 CFM (1.20m³/min) | 0.179 in H2O (44.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | 5.28 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN86372FAN AXIAL 80X25MM 24VDC WIRE |
3,662 |
|
数据手册 |
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 43.0 CFM (1.20m³/min) | 0.179 in H2O (44.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | 5.04 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
9WP0912S401FAN AXIAL 92X25MM 12VDC WIRE |
4,499 |
|
数据手册 |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 3.24 W | 3550 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WP0912S4011FAN AXIAL 92X25MM 12VDC WIRE |
2,510 |
|
数据手册 |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 3.24 W | 3550 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9RA0948H4002192X25MM 48V, LOW NOISE, RBLS DC |
2,052 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0948G400292X25MM 48V, LOW NOISE DC 0 |
1,733 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0948H400292X25MM 48V, LOW NOISE DC 0 |
1,508 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0948S4002192X25MM 48V, LOW NOISE, RBLS DC |
1,342 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0948G4002192X25MM 48V, LOW NOISE, RBLS DC |
1,186 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9G1224G1H01120X38MM 24V,HIGH PERF. DC LOW S |
4,905 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
AFA0251B1-1B00U-H99Thermal Products |
3,967 |
|
数据手册 |
AF | Bulk | Active | 13.5VDC | Rectangular/Rounded - 99.8mm L x 97.6mm H | 25.00mm | 18.4 CFM (0.515m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Blower | Auto Restart, PWM Control | 52.3dB(A) | 7.02 W | 3800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
VF60381B1-000U-A9HFAN AXIAL 60X38MM 12VDC WIRE |
4,123 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 54.1 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | Auto Restart | 60.9dB(A) | 12 W | 18300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|
|
VF60381BX-000U-A9HFAN AXIAL 60X38MM 12VDC WIRE |
3,711 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | Auto Restart | 64.1dB(A) | 22.8 W | 22800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|

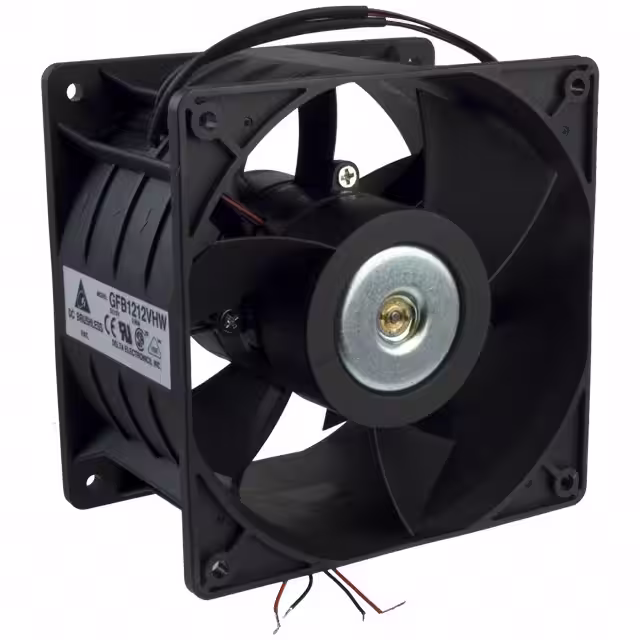

GFB1212VHWFAN AXIAL DUAL 120X76.2MM 12VDC |
1,187 |
|
数据手册 |
GFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 59.0dB(A) | 31.8 W | 3550 Front, 3200 Rear | 2 Wire Leads per Fan | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
4418FFAN AXIAL 119X25.4MM 48VDC WIRE |
1,805 |
|
数据手册 |
4400F | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 5.5 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
|
9GA0712P1H0011FAN AXIAL 70X38MM 12VDC WIRE |
4,463 |
|
数据手册 |
San Ace 70 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 1.830 in H2O (455.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 12000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
