直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DV5214NFAN AXIAL 127X38MM 24VDC WIRE ebm-papst Inc. |
3,886 |
|
数据手册 |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | - | 56.0dB(A) | 19 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|
QG030-353/12FAN BLOWER CF 413X47.5MM 12VDC ebm-papst Inc. |
148 |
|
数据手册 |
QG030 | Bulk | Active | 12VDC | Rectangular - 413mm L x 50mm H | 47.50mm | 91.0 CFM (2.55m³/min) | - | Ball | Blower, Cross Flow | - | 51.0dB(A) | 9.6 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|
6424MFAN AXIAL 172X50.8MM 24VDC TERM ebm-papst Inc. |
154 |
|
数据手册 |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 12 W | 2850 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
|
6448FAN AXIAL 172X50.8MM 48VDC TERM ebm-papst Inc. |
4,770 |
|
数据手册 |
6400 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 17 W | 3400 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
7214NFAN AXIAL 150X55MM 24VDC WIRE ebm-papst Inc. |
192 |
|
数据手册 |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 55.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.6 lbs (725.7 g) |
|

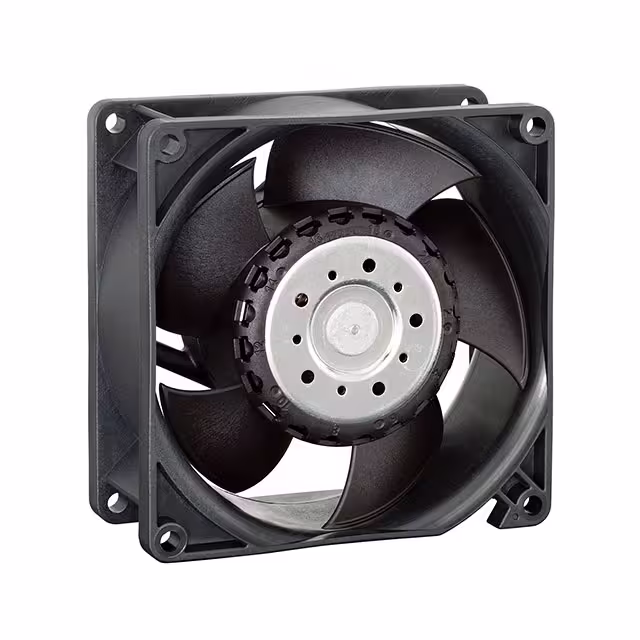

3212J/2NU-343FAN AXIAL 92X38MM 12VDC WIRE ebm-papst Inc. |
4,959 |
|
数据手册 |
3200JU | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 8.1 W | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | UL | 0.529 lb (239.95 g) |
|

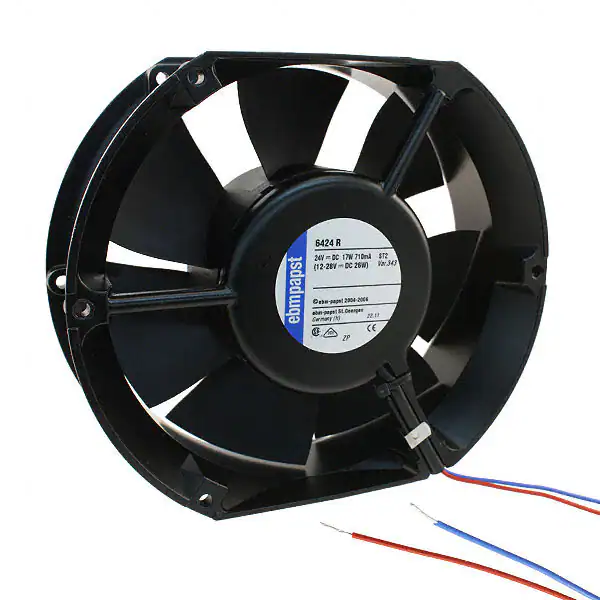

6424R-343FAN AXL 171.5X50.8MM 24VDC TERM ebm-papst Inc. |
503 |
|
数据手册 |
6200 | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 241.0 CFM (6.75m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 18 W | - | 2 Terminals | - | - | - | 1.8 lbs (816.5 g) |
_Series.JPG)
|
6248N/2FAN AXL 171.5X50.8MM 48VDC TERM ebm-papst Inc. |
1,393 |
|
数据手册 |
6200N | Box | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 17 W | 3400 RPM | 3 Terminals | - | 14 ~ 162°F (-10 ~ 72°C) | - | 1.8 lbs (816.5 g) |
|

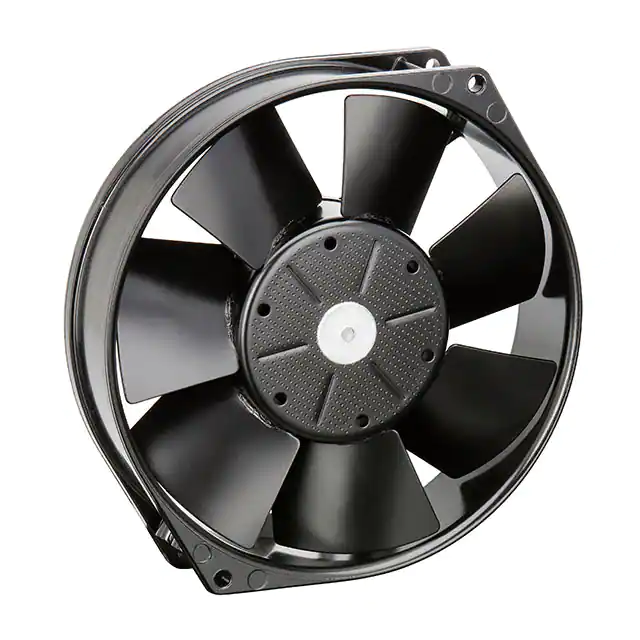

7112NFAN AXIAL 150X38MM 12VDC WIRE ebm-papst Inc. |
185 |
|
数据手册 |
7100N | Bulk | Active | 12VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 2850 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
|
|
6224NHFAN AXL 171.5X50.8MM 24VDC TERM ebm-papst Inc. |
183 |
|
数据手册 |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 282.5 CFM (7.91m³/min) | - | Ball | Tubeaxial | - | 61.0dB(A) | 26 W | 4000 RPM | 2 Terminals | - | -4 ~ 131°F (-20 ~ 55°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
