直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

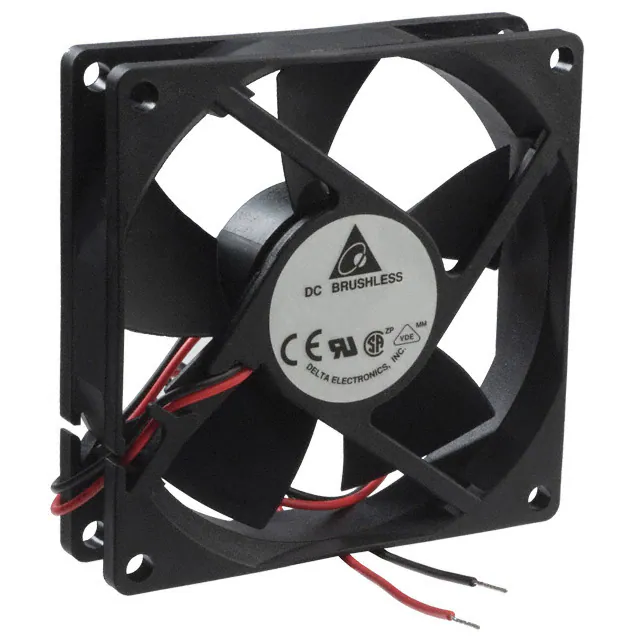

AFB0812SHDFAN AXIAL 80X20MM 12VDC WIRE Delta Electronics |
3,314 |
|
数据手册 |
AFB | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 48.2 CFM (1.35m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 2.64 W | 4000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.165 lb (74.84 g) |
|
EFB0412HD-F00FAN AXIAL 40X20MM 12VDC WIRE Delta Electronics |
1,546 |
|
数据手册 |
EFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.5dB(A) | 960 mW | 7600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
BFB04505HHA-CFAN BLOWER 45X10.3MM 5VDC WIRE Delta Electronics |
2,464 |
|
数据手册 |
BFB | Bulk | Active | 5VDC | Square - 45mm L x 45mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Protection | 35.5dB(A) | 1.25 W | 5900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.04 lb (18.14 g) |
|
|
AFB0605LCFAN AXIAL 60X13MM BALL 5VDC WIRE Delta Electronics |
4,193 |
|
数据手册 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 13.00mm | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 600 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB0512HB-AF00FAN AXIAL 50X15MM 12VDC WIRE Delta Electronics |
4,242 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 6300 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
AFB0605HCFAN AXIAL 60X13MM BALL 5VDC WIRE Delta Electronics |
3,630 |
|
数据手册 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 13.00mm | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.45 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB0424MBFAN AXIAL 40X15MM 24VDC WIRE Delta Electronics |
4,424 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 1.44 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
AFB0412HBFAN AXIAL 40X15MM 12VDC WIRE Delta Electronics |
2,232 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 1.2 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB0712VHD-R00FAN AXIAL 70X20MM 12VDC WIRE Delta Electronics |
1,629 |
|
数据手册 |
AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.3dB(A) | 4.2 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|

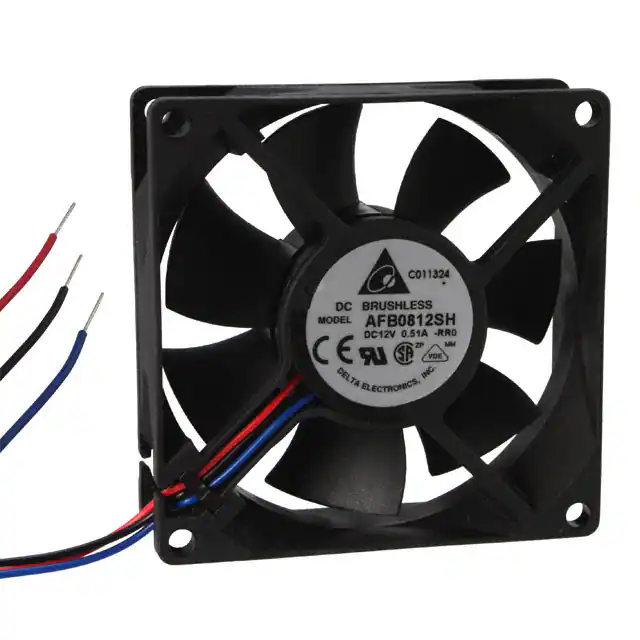

AFB0812SH-RR0FAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
4,280 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
