直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

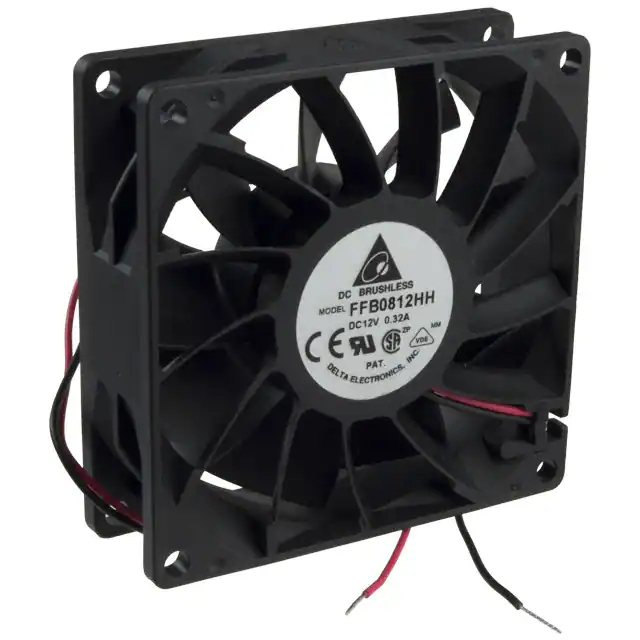

FFB0812HHFAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
134 |
|
数据手册 |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 47.2 CFM (1.32m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.7dB(A) | 3.12 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
|
AFB0812SHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
347 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 72.8 CFM (2.04m³/min) | 0.547 in H2O (136.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 8.16 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
QFR0624GHP0AXIAL 60X25.4 24V PWM Delta Electronics |
178 |
|
数据手册 |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 34.8 CFM (0.974m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 3.84 W | 7600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0624DHP0AXIAL 60X25.4 24VDC PWM Delta Electronics |
154 |
|
数据手册 |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 49.5 CFM (1.39m³/min) | 1.043 in H2O (259.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 8.4 W | 10600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0624UHP0AXIAL 60X25.4 24V PWM Delta Electronics |
126 |
|
数据手册 |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.764 in H2O (190.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 5.52 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EFB0424LD-CP5AXIAL 40X40X20MM 24V PWM IP55 Delta Electronics |
334 |
|
数据手册 |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 5.2 CFM (0.146m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.5dB(A) | 0.72 W | 5500 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
QFR0812MJ-00P0AXIAL 80X80X25.4MM 12V PWM Delta Electronics |
258 |
|
数据手册 |
QFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 49.1 CFM (1.37m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.5dB(A) | 2.4 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0912LJ-00P0AXIAL 92X92X25.4MM 12V PWM Delta Electronics |
288 |
|
数据手册 |
QFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.137 in H2O (34.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.5dB(A) | 1.44 W | 2850 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EFB0424VHD-CP5AXIAL 40X40X20MM 24V PWM IP55 Delta Electronics |
334 |
|
数据手册 |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.368 in H2O (91.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.3dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
PFB0824GHEFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
180 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.42m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | - | 55.5dB(A) | 10.8 W | 6100 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
