直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB03512HA-AF00FAN AXIAL 35X10MM 12VDC WIRE Delta Electronics |
1,585 |
|
数据手册 |
AFB | Bulk | Not For New Designs | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.08 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|
BFB0512HHA-CF00FAN BLOWER 50X10.3MM 12VDC WIRE Delta Electronics |
2,541 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 4.0 CFM (0.112m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 37.5dB(A) | 1.92 W | 5900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
EFB0612HHAFAN AXIAL 60X10MM 12VDC WIRE Delta Electronics |
4,139 |
|
数据手册 |
EFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 21.2 CFM (0.594m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.5dB(A) | 2.16 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
EFB0412VHDFAN AXIAL 40X20MM 12VDC WIRE Delta Electronics |
1,326 |
|
数据手册 |
EFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.44 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
EFB0424VHDFAN AXIAL 40X20MM 24VDC WIRE Delta Electronics |
886 |
|
数据手册 |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 2.16 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
EFB0612HAFAN AXIAL 60X10MM 12VDC WIRE Delta Electronics |
389 |
|
数据手册 |
EFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.44 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|

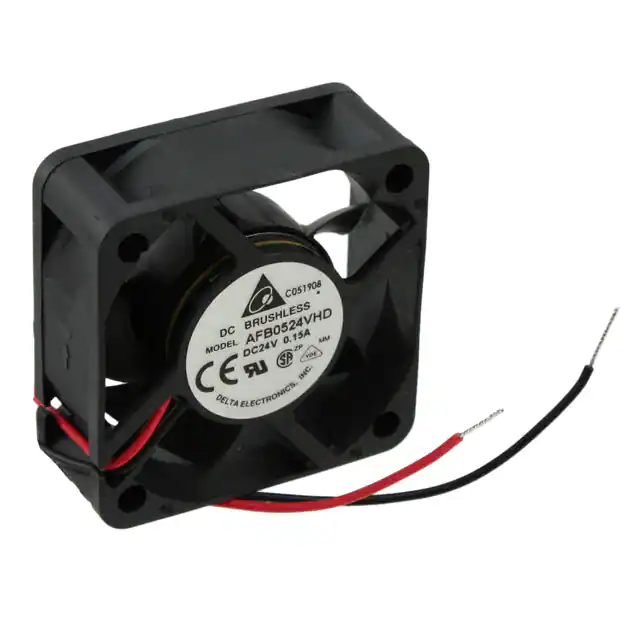

AFB0524VHDFAN AXIAL 50X20MM 24VDC WIRE Delta Electronics |
4,452 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 2.4 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0524HHBFAN AXIAL 50X15MM 24VDC WIRE Delta Electronics |
3,214 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0505MBFAN AXIAL 50X15MM BALL 5VDC WIRE Delta Electronics |
1,747 |
|
数据手册 |
AFB | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.1 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

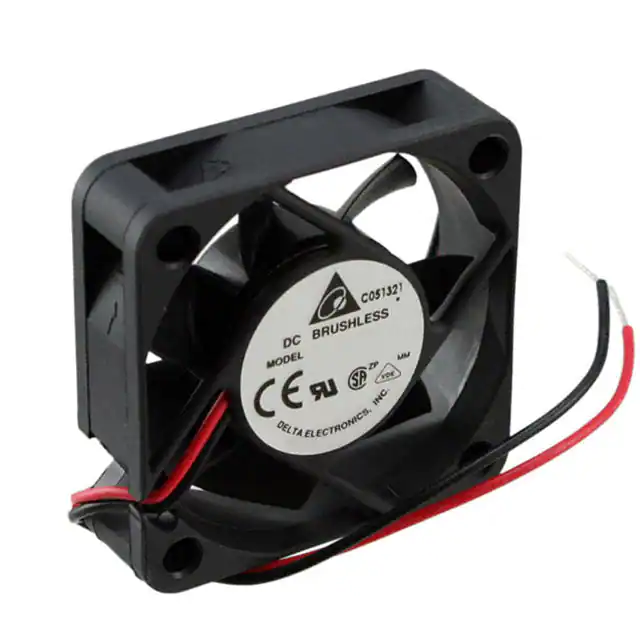

AFB0512MBFAN AXIAL 50X15MM 12VDC WIRE Delta Electronics |
1,271 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
