直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
2,704 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224VHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,644 |
|
数据手册 |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 9.12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224HEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,043 |
|
数据手册 |
AFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFC0912D-AF00FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
119 |
|
数据手册 |
AFC | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 9 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.265 lb (120.2 g) |
|
PFB0512EHFFAN AXIAL 50X32MM 12VDC WIRE Delta Electronics |
259 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 32.00mm | 31.6 CFM (0.885m³/min) | 1.051 in H2O (261.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.2dB(A) | 6.48 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
FFB0412UHN-SP4ZFAN AXIAL 40X28MM 12VDC WIRE Delta Electronics |
2,480 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.5 CFM (0.742m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.9dB(A) | 10.08 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.115 lb (52.16 g) |
|
AFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
1,013 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 16.8 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
PFB0612EHEFAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
210 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 7.56 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
AFB0924SH-TZUHFAN AXIAL 92X25.4MM 24VDC WIRE Delta Electronics |
1,936 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9.6 W | 4800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|

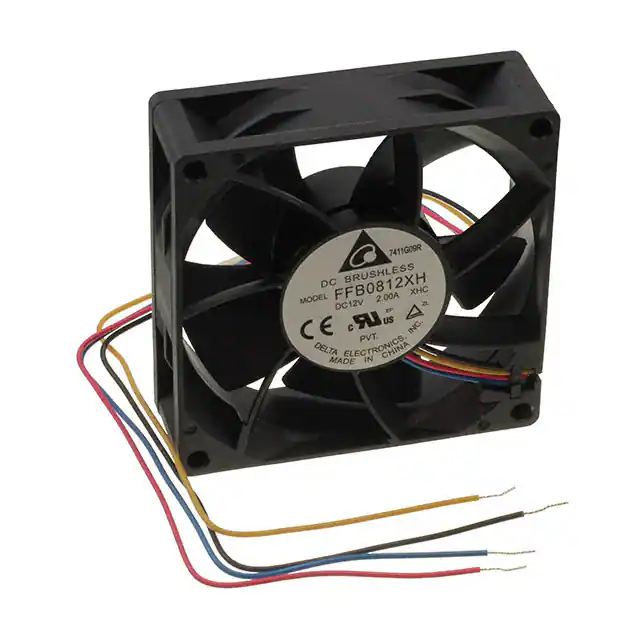

FFB0812XHXHCFAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
2,704 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 92.7 CFM (2.60m³/min) | 1.102 in H2O (255.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 0.254 lb (115.21 g) |
