直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB03812HHN-R00FAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
4,049 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.3 CFM (0.484m³/min) | 1.111 in H2O (276.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.5dB(A) | 5.64 W | 14000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
FFB03812LN-F00FAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
2,582 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 9.4 CFM (0.263m³/min) | 0.396 in H2O (98.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
FFB03812HHN-F00FAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
3,764 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.3 CFM (0.484m³/min) | 1.111 in H2O (276.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 5.64 W | 14000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
FFB03812HN-F00FAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
2,076 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 15.2 CFM (0.426m³/min) | 0.839 in H2O (209.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.5dB(A) | 4.08 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
AFB0812GHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
4,576 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 16.8 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
|
BFB0612MB-NFAN BLOWER 60X15.4MM 12VDC WIRE Delta Electronics |
4,759 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.40mm | 4.0 CFM (0.112m³/min) | 0.431 in H2O (107.4 Pa) | Ball | Blower | Locked Rotor Protection | 32.0dB(A) | 1.56 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
BFB04512HHA-CZ0TFAN BLOWER 45X10.3MM 12VDC Delta Electronics |
1,990 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0612VH-AFAN AXIAL 60X25.4MM 12VDC WIRE Delta Electronics |
3,109 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 2.76 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

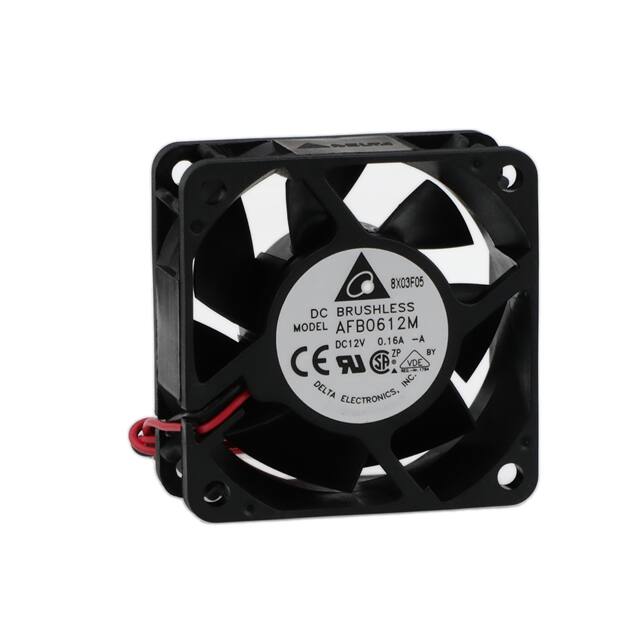

AFB0612M-AFAN AXIAL 60X25.4MM 12VDC WIRE Delta Electronics |
2,390 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 19.8 CFM (0.554m³/min) | 0.155 in H2O (38.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
FFB0812HHE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
3,551 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 45.2 CFM (1.27m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
