直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0612MDFAN AXIAL 60X20MM 12VDC WIRE Delta Electronics |
1,289 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 1.08 W | 3600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
AFB0612LDFAN AXIAL 60X20MM 12VDC WIRE Delta Electronics |
3,457 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 13.1 CFM (0.367m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 840 mW | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
AFB0612SHD-AFAN AXIAL 60X20MM 12VDC WIRE Delta Electronics |
4,598 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 32.2 CFM (0.902m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.124 lb (56.25 g) |
|
|
AFB0812HHD-AFAN AXIAL 80X20MM 12VDC WIRE Delta Electronics |
3,161 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 55.9 CFM (1.57m³/min) | 0.311 in H2O (77.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 3.84 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
|
BFB0505LA-CFAN BLOWER 50X10.3MM 5VDC WIRE Delta Electronics |
2,061 |
|
数据手册 |
BFB | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 2.2 CFM (0.061m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Blower | Locked Rotor Protection | 22.5dB(A) | 300 mW | 3500 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512LA-CFAN BLOWER 50X10.3MM 12VDC WIRE Delta Electronics |
2,563 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.2 CFM (0.061m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Blower | Locked Rotor Protection | 22.5dB(A) | 600 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
BFB0512MA-CFAN BLOWER 50X10.3MM 12VDC WIRE Delta Electronics |
1,630 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 840 mW | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|

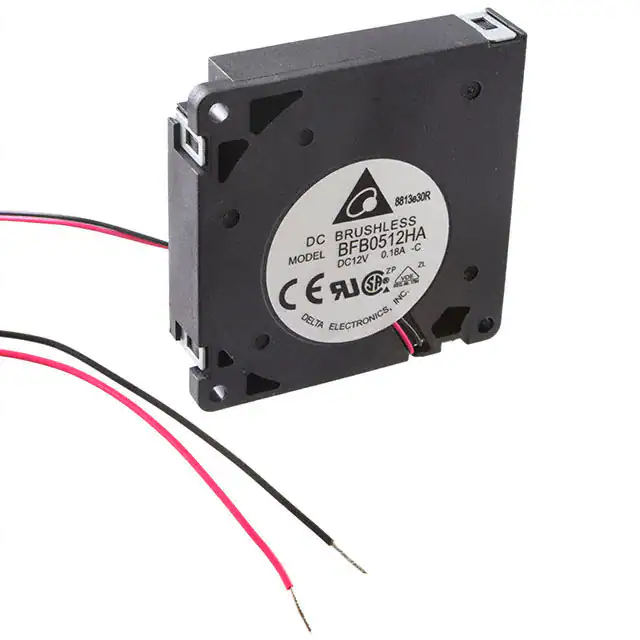

BFB0512HA-CFAN BLOWER 50X10.3MM 12VDC WIRE Delta Electronics |
3,462 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Protection | 32.5dB(A) | 1.44 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
|
AFB0812HD-AF00FAN AXIAL 80X20MM 12VDC WIRE Delta Electronics |
4,853 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 49.3 CFM (1.38m³/min) | 0.249 in H2O (62.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 2.64 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
|
BFB0512HHD-F00FAN BLOWER 50X20MM 12VDC WIRE Delta Electronics |
2,070 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.8 CFM (0.163m³/min) | 0.636 in H2O (158.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 36.5dB(A) | 1.92 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.078 lb (35.38 g) |
