直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR4020E12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
144 |
|
数据手册 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart | 39.1dB(A) | - | 11000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
CFM-A238V-131-480FAN AXIAL 120X38MM 12VDC WIRE |
3,821 |
|
数据手册 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
OD3010-12HB01AFAN AXIAL 30X10.2MM 12VDC WIRE |
2,476 |
|
数据手册 |
OD3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.2dB(A) | - | 11000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
BFB0305HHA-CFAN BLOWER 30X10MM 5VDC WIRE |
371 |
|
数据手册 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Locked Rotor Protection | 29.0dB(A) | 1.15 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB0312MA-CFAN BLOWER 30X10MM 12VDC WIRE |
242 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Protection | 26.0dB(A) | 600 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|

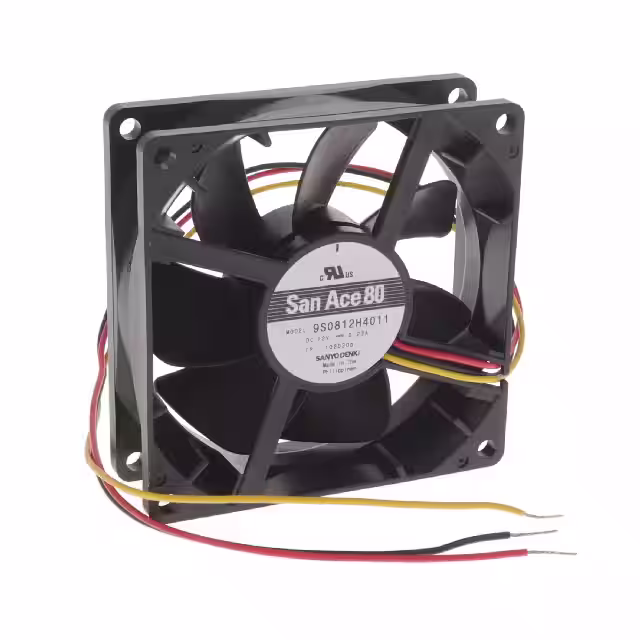

9S0812H4011FAN AXIAL 80X25MM 12VDC WIRE |
304 |
|
数据手册 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.76 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.167 lb (75.75 g) |
|
F8025M12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
165 |
|
数据手册 |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
ASB0405SA-00FAN AXIAL 40X10.4MM 5VDC WIRE |
928 |
|
数据手册 |
ASB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.40mm | 8.9 CFM (0.249m³/min) | 0.233 in H2O (58.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.5dB(A) | 900 mW | 8000 RPM | 3 Wire Leads | - | -4 ~ 194°F (-20 ~ 90°C) | - | 0.03 lb (13.61 g) |
|
9S0612M4011FAN AXIAL 60X25MM 12VDC WIRE |
4,048 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 16.0dB(A) | 840 mW | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
MF30151V1-1000U-G99DC FAN 30X30X15 MM 12V 6.0 CFM |
1,050 |
|
数据手册 |
MagLev® MF | Box | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 780 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
CFM-A225B-015-287FAN AXIAL 120X25.4MM 5VDC WIRE |
194 |
|
数据手册 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 24.8dB(A) | 1.2 W | 1500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-12025CBMW12FAN AXIAL 120X25.5MM 12VDC WIRE |
557 |
|
数据手册 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.50mm | 81.0 CFM (2.27m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 1.92 W | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
109P0412F3013FAN AXIAL 40X28MM 12VDC WIRE |
1,473 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 8.6 CFM (0.241m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.26 W | 6700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0424G302FAN AXIAL 40X28MM 24VDC WIRE |
1,357 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 4.56 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0612S701FAN AXIAL 60X15MM 12VDC WIRE |
538 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.8 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
MF20080V2-1000U-G99DC FAN 20X20X8 MM 5V 1.3 CFM |
402 |
|
数据手册 |
MagLev® MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 340 mW | 12000 RPM | 3 Wire Leads | - | - | CE, cURus, TUV | - |
|
109P0412H9D01FAN AXIAL 40X10MM 12VDC WIRE |
488 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 840 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
|
109P0412M901FAN AXIAL 40X10MM 12VDC WIRE |
271 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 720 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
MR8025H24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
494 |
|
数据手册 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 41.5dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025H12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
203 |
|
数据手册 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 41.5dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
