直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032704AFAN AXIAL 60X25MM CR0612HB-A70GL Comair Rotron |
4,571 |
|
数据手册 |
Flight LT 60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.2 CFM (0.650m³/min) | 0.185 in H2O (46.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.3dB(A) | 2.76 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.15 lb (68.04 g) |
|
19032738AFAN AXIAL 80X25MM CR0812MB-A70GL Comair Rotron |
3,781 |
|
数据手册 |
Flight LT 80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.112 in H2O (27.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 28.3dB(A) | 1.8 W | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.19 lb (86.18 g) |
|
|
19032744AFAN AXIAL 80X25MM CR0824HB-A70GL Comair Rotron |
1,164 |
|
数据手册 |
Flight LT 80 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.8dB(A) | 2.4 W | 3010 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.19 lb (86.18 g) |
|

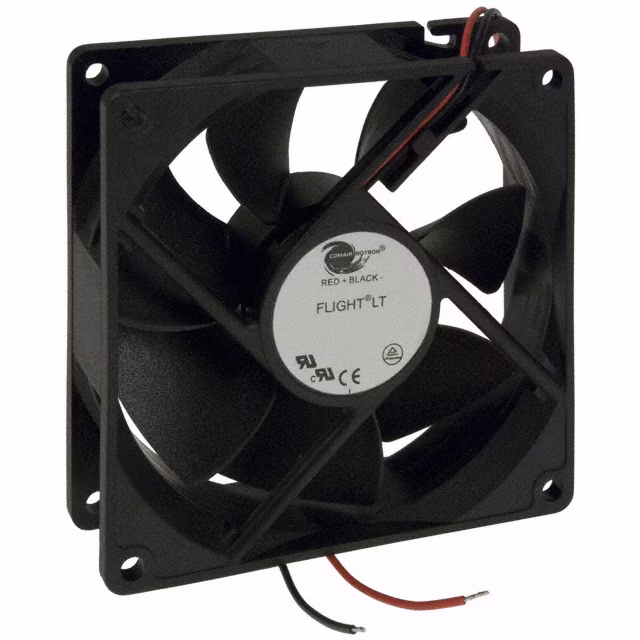

19032760AFAN AXIAL 92X25MM CR0912HB-A70GL Comair Rotron |
4,083 |
|
数据手册 |
Flight LT 90 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 4.1 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.222 lb (100.7 g) |
|

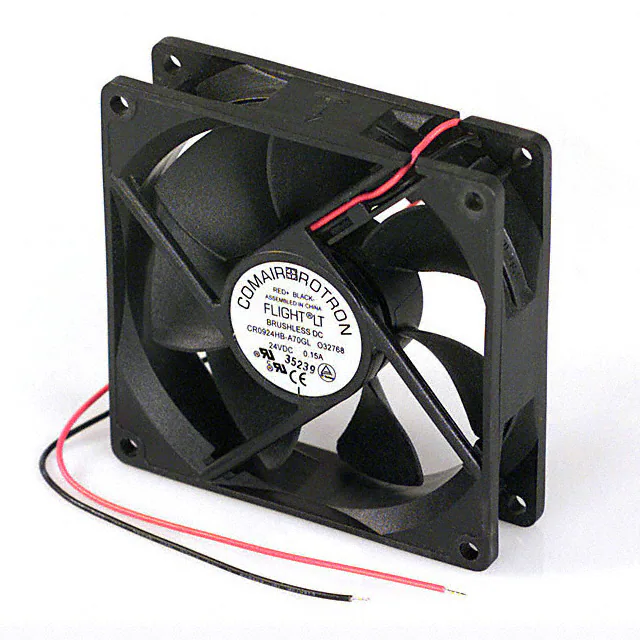

19032768AFAN AXIAL 92X25MM CR0924HB-A70GL Comair Rotron |
4,515 |
|
数据手册 |
Flight LT 90 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.222 lb (100.7 g) |
|
17000180AFAN 50X10.5MM CR0512UB-G70(T) Comair Rotron |
1,929 |
|
数据手册 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 12.0 CFM (0.336m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.04 lb (18.14 g) |
|
|
17000181AFAN 50X10.5MM CR0512LB-G70(T) Comair Rotron |
4,656 |
|
数据手册 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 8.0 CFM (0.224m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 20.0dB(A) | 960 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.04 lb (18.14 g) |
|
|
17000186AFAN 60X15MM CR0612HB-GA0(GLT1) Comair Rotron |
4,494 |
|
数据手册 |
- | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.4 CFM (0.599m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.8dB(A) | 3 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.067 lb (30.39 g) |
|
|
17000187AFAN 80X15.5MM CR0824LB-D90(T) Comair Rotron |
3,502 |
|
数据手册 |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.50mm | 29.6 CFM (0.829m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.2 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
GDA1225-12BBFAN AXIAL 120X25MM 12VDC WIRE Comair Rotron |
3,427 |
|
数据手册 |
Gryphon | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 69.0 CFM (1.93m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.1dB(A) | 4.8 W | 2400 RPM | 3 Wire Leads | - | - | - | 0.362 lb (164.2 g) |
