直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8015CF-130-301FAN AXIAL 80X15.4MM 12VDC WIRE |
283 |
|
数据手册 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.1dB(A) | 3.12 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015V-154-362-20FAN AXIAL 60X15MM 12VDC WIRE |
1,552 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.2dB(A) | 2.56 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
CFM-7015V-128-265-20FAN AXIAL 70X15MM 12VDC WIRE |
1,483 |
|
数据手册 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.0 CFM (0.644m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.5dB(A) | 1.04 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.091 lb (41.28 g) |
|
109P0412H701FAN AXIAL 40X15MM 12VDC WIRE |
4,365 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.56 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

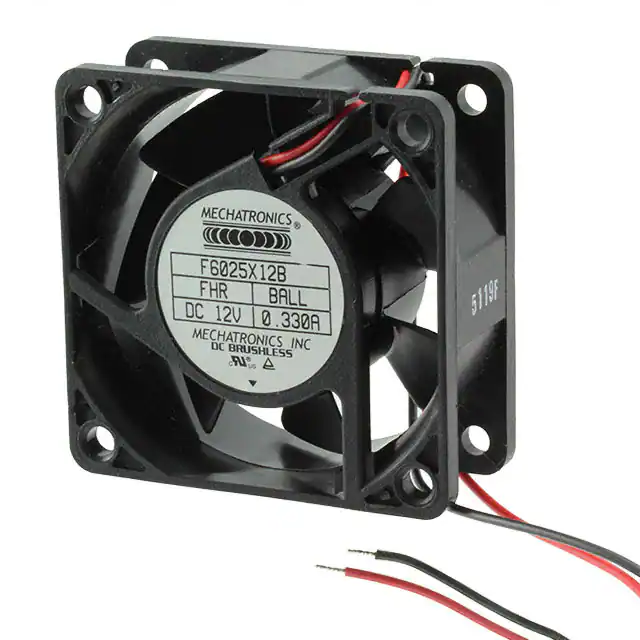

F6025X12B-FHRFAN AXIAL 60X25MM 12VDC WIRE |
201 |
|
数据手册 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
CFM-7015V-133-315FAN AXIAL 70X15MM 12VDC WIRE |
788 |
|
数据手册 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 31.5dB(A) | 1.56 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.091 lb (41.28 g) |
|
CFM-2507CF-0100-240-20DC AXIAL FAN, 25 MM SQUARE, 7 MM |
300 |
|
数据手册 |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 7.00mm | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Speed Sensor (Tach) | 24.1dB(A) | 1.2 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2010CF-060-066DC AXIAL FAN, 20 MM SQUARE, 10 M |
112 |
|
数据手册 |
CFM-20CF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.30mm | 0.600 CFM (0.017m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 6.6dB(A) | 250 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD4020-12HSSFAN AXIAL 40X20MM 12VDC WIRE |
653 |
|
数据手册 |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 32.1dB(A) | 1.3 W | 8190 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
03510SS-12N-AA-00FAN AXIAL 35X10MM 12VDC WIRE |
2,035 |
|
数据手册 |
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 27.0dB | 840 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
03010SS-12N-AA-00FAN AXIAL 30X10MM 12VDC WIRE |
429 |
|
数据手册 |
03010SS | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB | 960 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0912G4021FAN AXIAL 92X25MM 12VDC WIRE |
4,875 |
|
数据手册 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 4.68 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
CFM-6015V-122-145FAN AXIAL 60X15MM 12VDC WIRE |
550 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 14.5dB(A) | 350 mW | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
|
CFM-6015V-147-342FAN AXIAL 60X15MM 12VDC WIRE |
256 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.2dB(A) | 1.77 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|

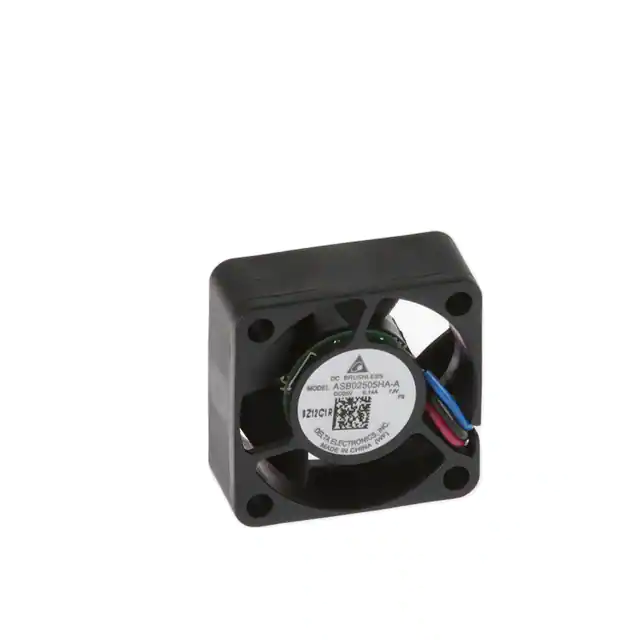

ASB02505HA-A7JVFAN AXIAL 25X10MM 5VDC WIRE |
1,241 |
|
数据手册 |
ASB | Box | Not For New Designs | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.114 in H2O (28.4 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 450 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
|
CFM-6010V-130-205-20FAN AXIAL 60X10MM 12VDC WIRE |
1,872 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.080 in H2O (20.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.5dB(A) | 680 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
CFM-7025C-230-332-20FAN AXIAL 70X25.2MM 24VDC WIRE |
294 |
|
数据手册 |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

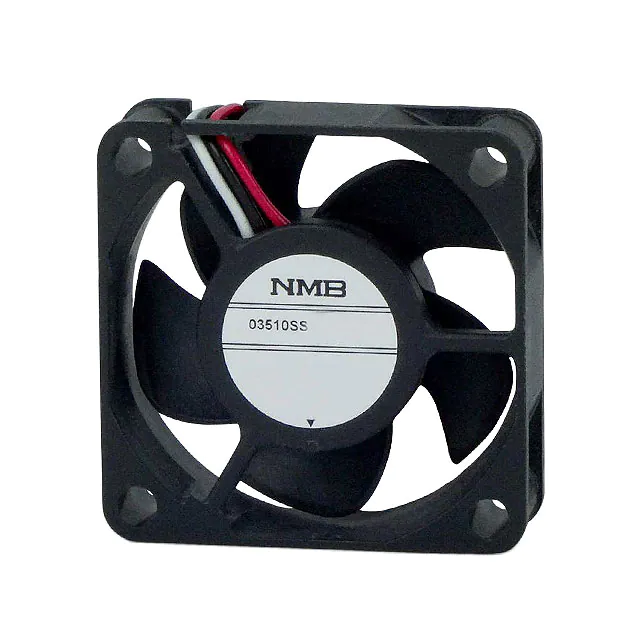

03510SS-12N-AT-00FAN AXIAL 35X10MM 12VDC WIRE |
610 |
|
数据手册 |
03510SS | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 27.0dB | 840 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
|
CBM-3507CF-045-139-20DC BLOWER, 35 MM SQUARE, 10 MM, |
338 |
|
数据手册 |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 0.600 CFM (0.017m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 13.9dB(A) | 450 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06015SS-12N-AT-00FAN AXIAL 60X15MM 12VDC WIRE |
184 |
|
数据手册 |
06015SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.6 CFM (0.633m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 2.04 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
