直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME80152V3-000U-A99FAN Sunon Fans |
4,782 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF60252V1-1000U-F9924VDC FAN 60X25MM TACH Sunon Fans |
3,318 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 1.2 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60252V3-1000U-F9924VDC FAN 60X25MM TACH Sunon Fans |
1,994 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 16.7dB(A) | 0.53 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60252VX-1000U-F9924VDC FAN 60X25MM TACH Sunon Fans |
3,017 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.2dB(A) | 1.92 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60252V2-1000U-F9924VDC FAN 60X25MM TACH Sunon Fans |
4,101 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 0.72 W | 3800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
HA60151V3-E01U-A99FAN AXIAL 84.9X15.4MM 12VDC Sunon Fans |
4,007 |
|
数据手册 |
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 15.40mm | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.3dB(A) | 340 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.06 lb (27.22 g) |
|

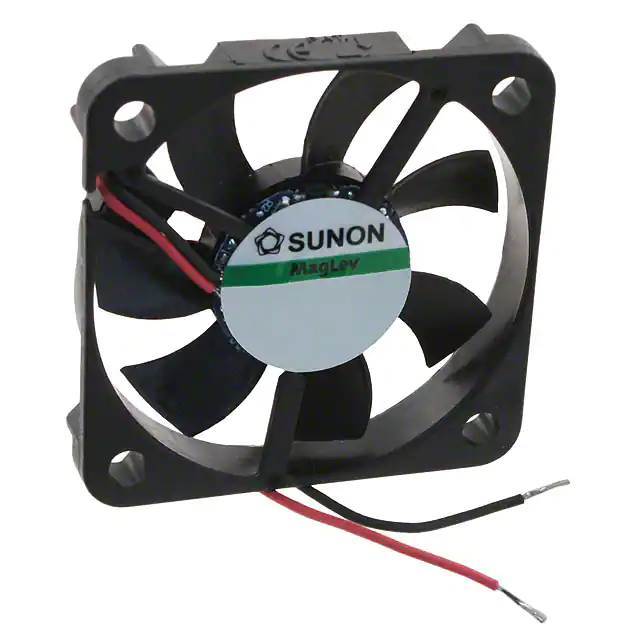

GM0504PEV2-8.GNFAN AXIAL 40X6.9MM 5VDC WIRE Sunon Fans |
4,856 |
|
数据手册 |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.5 CFM (0.154m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 26.0dB(A) | 400 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
MF50151V2-1B00U-G99FAN BLOWER 51.7X15MM 12VDC WIRE Sunon Fans |
1,013 |
|
数据手册 |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.400 in H2O (99.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 32.6dB(A) | 540 mW | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
MF50151VX-1B00U-G9912VDC FAN 50X15MM ALARM Sunon Fans |
4,236 |
|
数据手册 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 42.2dB(A) | 1.86 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50151V1-1B00U-G9912VDC FAN 50X15MM ALARM Sunon Fans |
1,142 |
|
数据手册 |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 15.00mm | 4.5 CFM (0.126m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 39.6dB(A) | 1.14 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
