直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME70201V2-000U-A99FAN Sunon Fans |
1,183 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF50152V2-1000U-A99FAN AXIAL 50X15MM 24VDC WIRE Sunon Fans |
3,957 |
|
数据手册 |
MagLev® MF | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 650 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
|
|
MB60101V1-000U-G99FAN AXIAL 60X10MM 12VDC WIRE Sunon Fans |
3,616 |
|
数据手册 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.0 CFM (0.448m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
ME92251V2-000U-F99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
4,673 |
|
数据手册 |
MagLev® ME | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB(A) | 1.6 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.212 lb (96.16 g) |
|
|
MF50152V1-1000U-G99FAN AXIAL Sunon Fans |
1,314 |
|
数据手册 |
MF | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.08 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF50152VX-1000U-G9924VDC FAN 50X15MM ALARM Sunon Fans |
4,642 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.1dB(A) | 1.32 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50152V2-1000U-G9924VDC FAN 50X15MM ALARM Sunon Fans |
2,270 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 0.65 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
ME80201V2-000U-A99FAN AXIAL 80X20MM 12VDC WIRE Sunon Fans |
4,423 |
|
数据手册 |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 33.0 CFM (0.924m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 35.0dB(A) | 1.14 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.146 lb (66.22 g) |
|

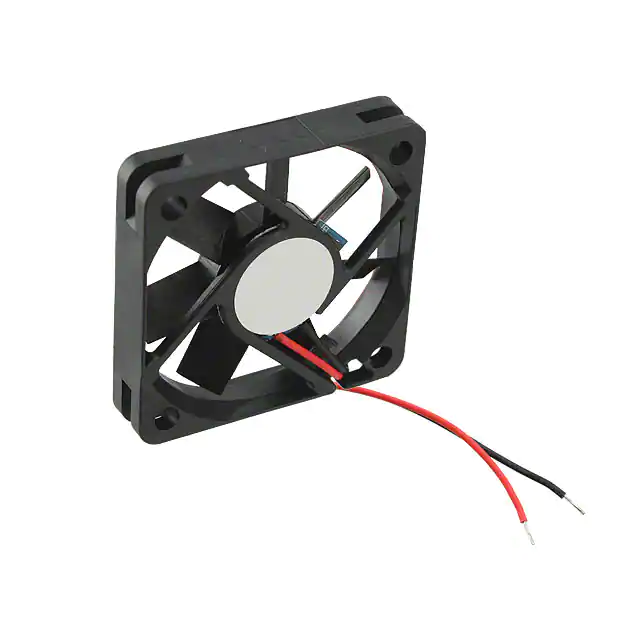

ME70151V3-000U-A99FAN AXIAL 70X15MM 12VDC WIRE Sunon Fans |
2,306 |
|
数据手册 |
MagLev® ME | Bulk | Not For New Designs | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.5dB(A) | 570 mW | 2300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
|
ME70151V1-000U-A99FAN AXIAL 70X15MM 12VDC WIRE Sunon Fans |
3,762 |
|
数据手册 |
MagLev® ME | Bulk | Not For New Designs | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.5dB(A) | 1.36 W | 3300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
