直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF80252S1-1000U-G9924VDC FAN 80X25MM ALARM Sunon Fans |
2,193 |
|
数据手册 |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.32 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
EE80251B3-000U-999FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
3,808 |
|
数据手册 |
EE | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.1 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
ME40101V1-000U-G99FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
3,461 |
|
数据手册 |
MagLev® ME | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
ME40101V1-000U-F99FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
4,883 |
|
数据手册 |
MagLev® ME | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
ME80251V1-000U-F99FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,030 |
|
数据手册 |
MagLev® ME | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.7 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.171 lb (77.56 g) |
|
ME80251V1-000U-G99FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,504 |
|
数据手册 |
MagLev® ME | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.7 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.171 lb (77.56 g) |
|
|
MB40201V1-000U-G99FAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
2,899 |
|
数据手册 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.5dB(A) | 840 mW | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|

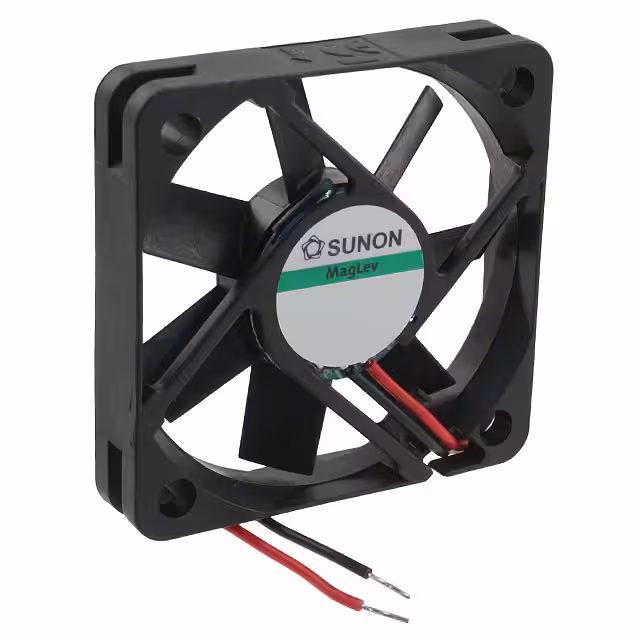

MB50101V2-000U-A99FAN AXIAL 50X10MM 12VDC WIRE Sunon Fans |
2,523 |
|
数据手册 |
MagLev® MB | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.0dB(A) | 1.26 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|

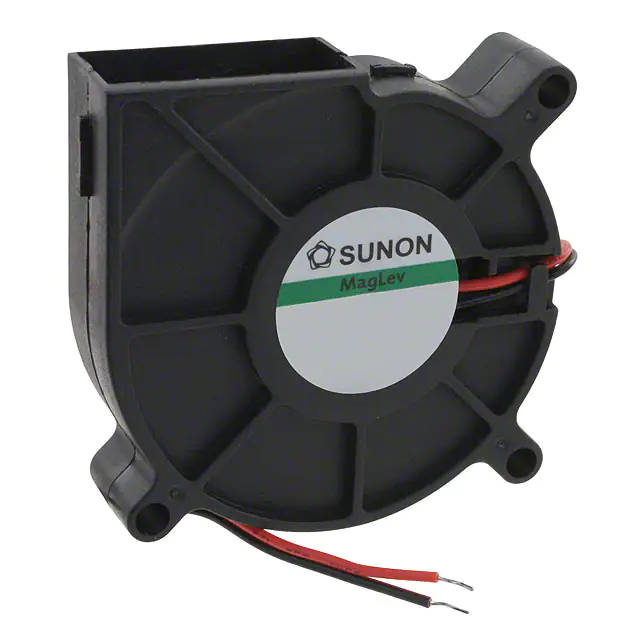

GB1206PHV1-AY.GNFAN BLOWER 60X15.4MM 12VDC WIRE Sunon Fans |
3,029 |
|
数据手册 |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.40mm | 5.2 CFM (0.146m³/min) | 0.440 in H2O (109.6 Pa) | Vapo-Bearing™ | Blower | - | 40.5dB(A) | 1.3 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.099 lb (44.91 g) |
|
|
EF92251S3-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
2,205 |
|
数据手册 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.96 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
