直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5158HQ/MF40070V1-D05U-S99DC BLOWER 40X7MM TACH/PWM Sunon Fans |
2,649 |
|
数据手册 |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4520HQ/MF50150V3-C01A-A99DC BLOWER 50X15MM VAPO 2.7CFM Sunon Fans |
2,112 |
|
数据手册 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PF40281B3-000U-A99FAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
4,108 |
|
数据手册 |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.4 CFM (0.431m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 43.9dB(A) | 1.95 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
PF80251V3-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,028 |
|
数据手册 |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.5dB(A) | 2.4 W | 4200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|

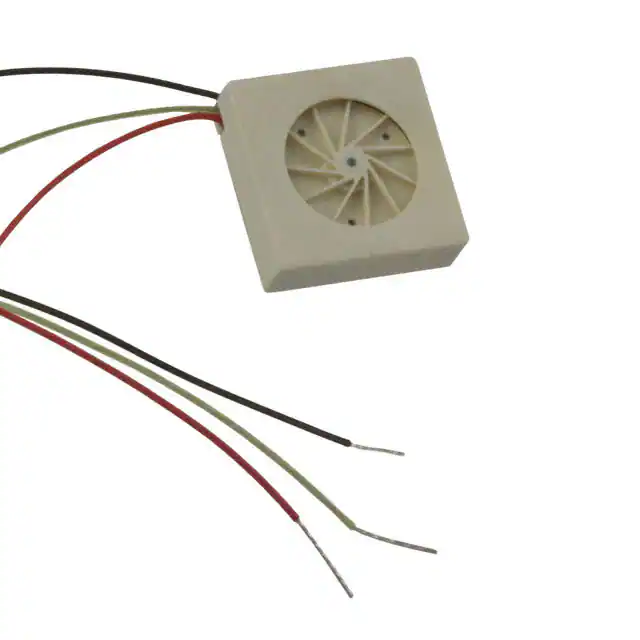

UB3C3-500BFAN BLOWER 12X3MM VAPO 3VDC WIRE Sunon Fans |
2,965 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 100 mW | 15500 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UB3C3-500FAN BLOWER 12X3MM VAPO 3VDC WIRE Sunon Fans |
3,135 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 100 mW | 15500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
GE92254B1-000U-AC9FAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
1,104 |
|
数据手册 |
GE | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 6 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
|
EFH0961B1-C01U-G99DC BLOWER, 165.4X169.5X95.8MM, 2 Sunon Fans |
3,938 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MF40201V2-1000U-G99FAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
4,962 |
|
数据手册 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 540 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
|
MF50152VX-1000U-A99FAN AXIAL 50X15MM 24VDC WIRE Sunon Fans |
1,237 |
|
数据手册 |
MagLev® MF | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 38.1dB(A) | 1.32 W | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
