直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

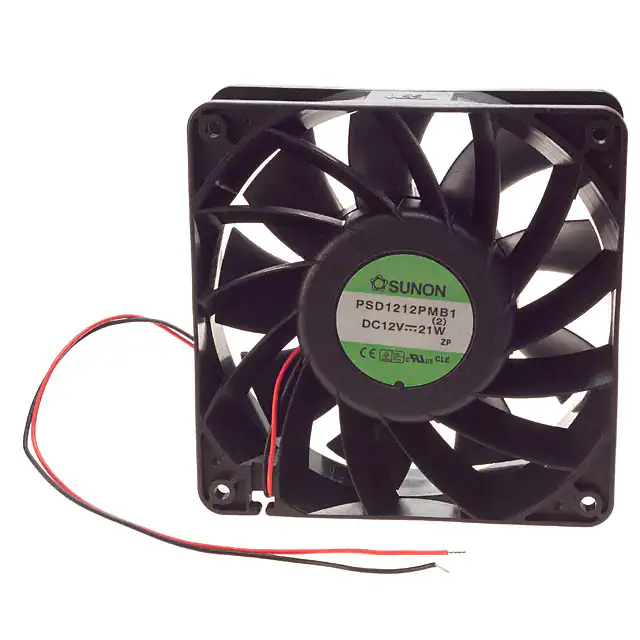

PSD1212PMB1 (2)FAN AXIAL 120X38MM 12VDC WIRE Sunon Fans |
4,596 |
|
数据手册 |
PSD | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | - | 63.0dB(A) | 21 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.882 lb (400.07 g) |
|
PF80251B2-1000U-S9912VDC FAN 80X25MM TACH/PWM Sunon Fans |
1,182 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 3.06 W | 4500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B3-1000U-S9912VDC FAN 80X25MM TACH/PWM Sunon Fans |
2,739 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.5dB(A) | 2.34 W | 4200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80251B1-1000U-S9912VDC FAN 80X25MM TACH/PWM Sunon Fans |
1,148 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.5dB(A) | 3.54 W | 4800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0252V2-000U-F9924VDC FAN 120X25MM TACH Sunon Fans |
4,275 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.5 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0252V3-000U-F9924VDC FAN 120X25MM TACH Sunon Fans |
1,871 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 2 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0252V1-000U-F9924VDC FAN 120X25MM TACH Sunon Fans |
3,532 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.5dB(A) | 5 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251B1-1000U-H9912VDC FAN 92X25MM PWM Sunon Fans |
4,450 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 46.1dB(A) | 4.32 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251B1-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
4,300 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.1dB(A) | 4.32 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251B3-1000U-G9912VDC FAN 92X25MM ALARM Sunon Fans |
3,151 |
|
数据手册 |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.8dB(A) | 2.7 W | 3900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
