直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG40281B1-000U-A99FAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
1,445 |
|
数据手册 |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | 6.24 W | 19000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.077 lb (34.93 g) |
|
KDE2412PMV1.13.MS.A.GNFAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
3,560 |
|
数据手册 |
MagLev® KDE | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 9.9 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.661 lb (299.82 g) |
|
KD2405PHB1.(2).GNFAN AXIAL 50X15MM 24VDC WIRE Sunon Fans |
2,806 |
|
数据手册 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2405PHB2.(2).GNFAN AXIAL 50X15MM 24VDC WIRE Sunon Fans |
2,851 |
|
数据手册 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.3 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
SG38281B1-000U-G99FAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
4,836 |
|
数据手册 |
SG | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.2dB | 6.24 W | 19000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.077 lb (34.93 g) |
|
|
PMD1208PKV1-A.GNFAN AXIAL 80X20MM 12VDC WIRE Sunon Fans |
1,630 |
|
数据手册 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 48.0dB(A) | 4.7 W | 4600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PKV3-A.GNFAN AXIAL 80X20MM 12VDC WIRE Sunon Fans |
3,270 |
|
数据手册 |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.0dB(A) | 3.1 W | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD2406PHB1.(2).GNFAN AXIAL 60X15MM 24VDC WIRE Sunon Fans |
2,910 |
|
数据手册 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 2 W | 4300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.098 lb (44.45 g) |
|
SG40281B1-000U-G99FAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
3,953 |
|
数据手册 |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | 6.24 W | 19000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.077 lb (34.93 g) |
.GN.JPG)
|

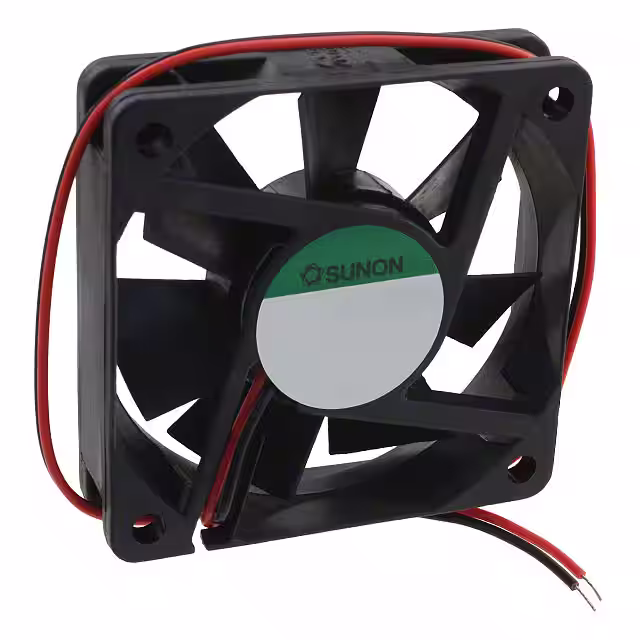

KD1206PHB1.(2).GNFAN AXIAL 60X15MM 12VDC WIRE Sunon Fans |
2,601 |
|
数据手册 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 1.9 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.092 lb (41.73 g) |
