直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD2406PTB2.(2).GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
4,030 |
|
数据手册 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.3 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD2406PTB2.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
4,938 |
|
数据手册 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2406PTB3.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
3,601 |
|
数据手册 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 26.0dB(A) | 1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD2406PTB4.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
2,192 |
|
数据手册 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2406PTBX.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
3,158 |
|
数据手册 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
MC35101V1-000U-A99FAN AXIAL 35X10MM 12VDC WIRE Sunon Fans |
4,212 |
|
数据手册 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 720 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|

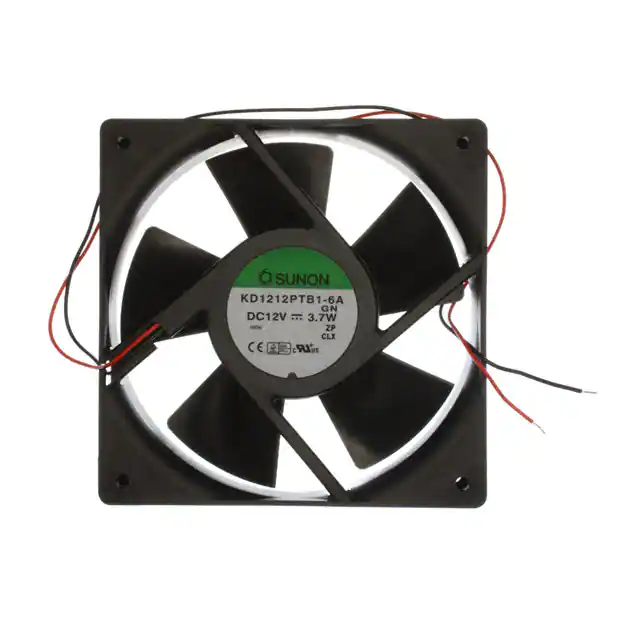

KD1212PTB1-6A.GNFAN AXIAL 120X25MM 12VDC WIRE Sunon Fans |
2,587 |
|
数据手册 |
KD | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 3.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.441 lb (200.03 g) |
|
|
EF40201B1-1000U-H9912VDC FAN 40X20MM PWM Sunon Fans |
2,340 |
|
数据手册 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 24.5dB(A) | 0.66 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B1-1000U-F9912VDC FAN 40X20MM TACH Sunon Fans |
4,354 |
|
数据手册 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.5dB(A) | 0.66 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201BX-1000U-F9912VDC FAN 40X20MM TACH Sunon Fans |
1,749 |
|
数据手册 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 0.78 W | 8200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
