直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80152V2-1000U-H9924VDC FAN 80X15MM PWM Sunon Fans |
2,119 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 29.9dB(A) | 1.32 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-H9924VDC FAN 80X15MM PWM Sunon Fans |
3,075 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 26.5dB(A) | 0.96 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V2-1000U-F9924VDC FAN 80X15MM TACH Sunon Fans |
4,018 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.9dB(A) | 1.32 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-F9924VDC FAN 80X15MM TACH Sunon Fans |
1,868 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.5dB(A) | 0.96 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V1-1000U-H9924VDC FAN 80X15MM PWM Sunon Fans |
4,283 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 32.9dB(A) | 1.64 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V1-1000U-F9924VDC FAN 80X15MM TACH Sunon Fans |
2,813 |
|
数据手册 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.9dB(A) | 1.64 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.GN.jpg)
|

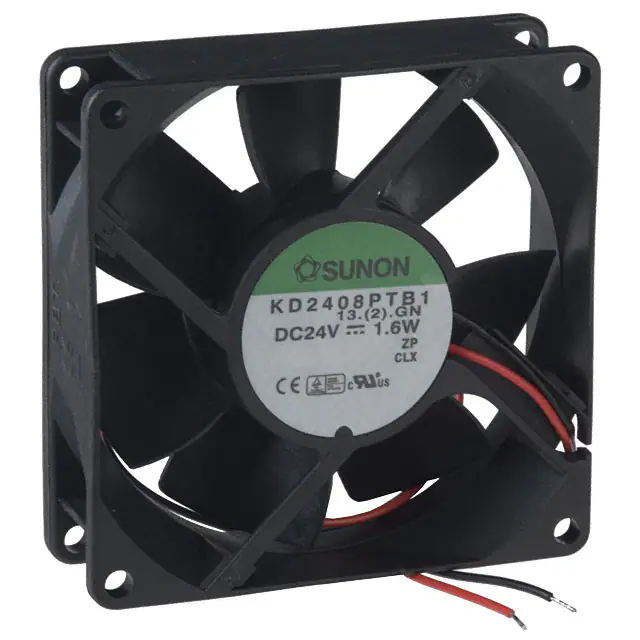

KD2408PTB1.13.(2).GNFAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
4,682 |
|
数据手册 |
KD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.183 lb (83.01 g) |
|
|
KD1204PKB1.(2).GNFAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
3,005 |
|
数据手册 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1 W | 7200 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD1204PKB2.(2).GNFAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
3,982 |
|
数据手册 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 700 mW | 6200 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD1204PKB3.(2).GNFAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
1,893 |
|
数据手册 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 500 mW | 5200 RPM | 2 Wire Leads | - | - | - | - |
