直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
1,322 |
|
数据手册 |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
AF40101VX-1000U-A99FAN AXIAL 12VDC 40X10MM Sunon Fans |
1,438 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AF40100VX-1000U-A99FAN AXIAL 5VDC 40X10MM Sunon Fans |
2,317 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF20100V2-1000U-F995VDC FAN 20X10MM TACH Sunon Fans |
3,408 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.0dB(A) | 0.4 W | 14000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20100V1-1000U-F995VDC FAN 20X10MM TACH Sunon Fans |
1,226 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 0.53 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V3-1000U-S9912VDC FAN 80X15MM TACH/PWM Sunon Fans |
3,035 |
|
数据手册 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.5dB(A) | 0.86 W | 2800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V1-1000U-S9912VDC FAN 80X15MM TACH/PWM Sunon Fans |
4,500 |
|
数据手册 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.9dB(A) | 1.5 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-S9912VDC FAN 80X15MM TACH/PWM Sunon Fans |
4,394 |
|
数据手册 |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.9dB(A) | 1.13 W | 3100 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.F.GN.JPG)
|

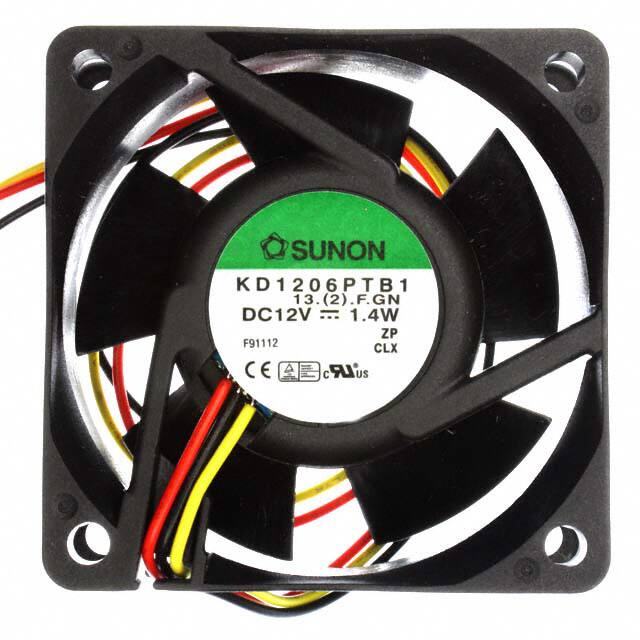

KD1206PTB1 (2).F.GNFAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
3,472 |
|
数据手册 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.4 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
PMD2406PTB1-A.(2).U.GNFAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
3,179 |
|
数据手册 |
PMD | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.8 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
