直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

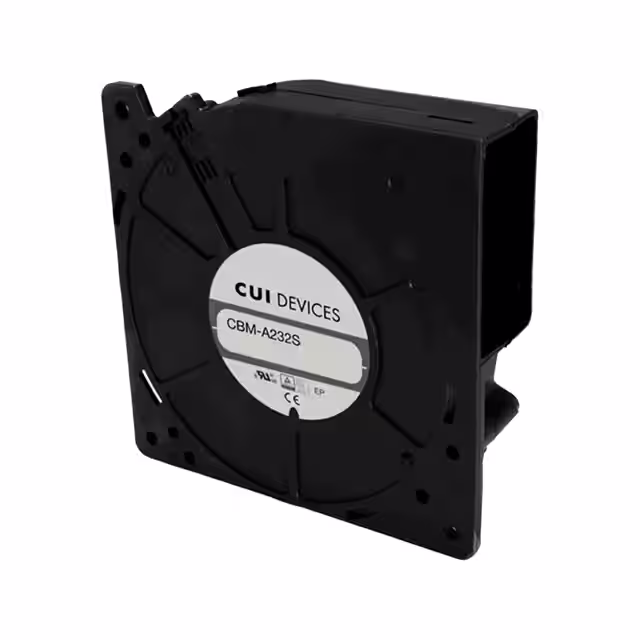

CBM-A232S-225-481-22FAN BLOWER 119.3X32MM 24VDC Same Sky (Formerly CUI Devices) |
3,268 |
|
数据手册 |
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.2dB(A) | 8.64 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8038S-150-498-20FAN AXIAL 80X37.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,821 |
|
数据手册 |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.8dB(A) | 7.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9238B-148-523-20FAN AXIAL 92X37.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,858 |
|
数据手册 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 52.3dB(A) | 11.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025BG-1100-535-22DC AXIAL FAN, 60 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
3,827 |
|
数据手册 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 42.9 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 10.56 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG-2100-535-22DC AXIAL FAN, 60 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
1,410 |
|
数据手册 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 42.9 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 12 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-260-540-22DC BLOWER, 49.2 X 49.8 X 20 MM, Same Sky (Formerly CUI Devices) |
2,192 |
|
数据手册 |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 17.9 CFM (0.501m³/min) | 1.320 in H2O (328.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 16.56 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-979433B-135-540-20FAN BLOWER 97.68X32.7MM 12VDC Same Sky (Formerly CUI Devices) |
2,490 |
|
数据手册 |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 23.9 CFM (0.669m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 54.1dB(A) | 10.32 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4028BG-180-369FAN AXIAL 40X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,905 |
|
数据手册 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 9.8 CFM (0.274m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 2.52 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238S-232-480FAN AXIAL 120X37.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,068 |
|
数据手册 |
CFM-120S | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 123.9 CFM (3.47m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 12.72 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238S-132-480FAN AXIAL 120X37.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,379 |
|
数据手册 |
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 10.32 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
