直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4028BG-1160-520FAN AXIAL 40X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,360 |
|
数据手册 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.5 CFM (0.546m³/min) | 1.560 in H2O (388.6 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB(A) | 6.48 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4028BG-1100-418FAN AXIAL 40X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,510 |
|
数据手册 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.2 CFM (0.342m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart | 41.8dB(A) | 3.6 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225V-222-340FAN AXIAL 120X25MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,226 |
|
数据手册 |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 2.32 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
CFM-8025BG-260-484FAN AXIAL 80X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,395 |
|
数据手册 |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart | 48.4dB(A) | 7.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225B-230-438-20FAN AXIAL 120X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,421 |
|
数据手册 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 104.6 CFM (2.93m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.6dB(A) | 7.2 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3828BF-1150-517-22FAN AXIAL 38X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,719 |
|
数据手册 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 1.310 in H2O (326.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.7dB(A) | 4.08 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

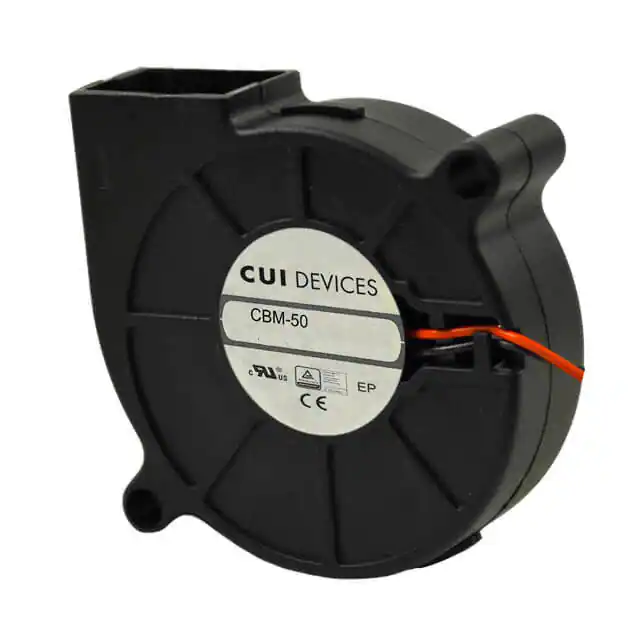

CBM-5020V-152FAN BLOWER 50X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,018 |
|
数据手册 |
CBM-50V | Tray | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.7 CFM (0.160m³/min) | 0.660 in H2O (164.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 35.0dB(A) | 1.5 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|
CFM-A225SG-130-431-22DC AXIAL FAN, 120 MM SQUARE, 25 Same Sky (Formerly CUI Devices) |
1,726 |
|
数据手册 |
CFM-A2SG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 104.5 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.9dB(A) | 6.72 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
B.jpg)
|
CFM-A225B-018-327-22FAN AXIAL 120X25.4MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
3,384 |
|
数据手册 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.8dB(A) | 2.25 W | 1800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225B-015-287-22FAN AXIAL 120X25.4MM 5VDC WIRE Same Sky (Formerly CUI Devices) |
3,305 |
|
数据手册 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.8dB(A) | 1.2 W | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
