直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

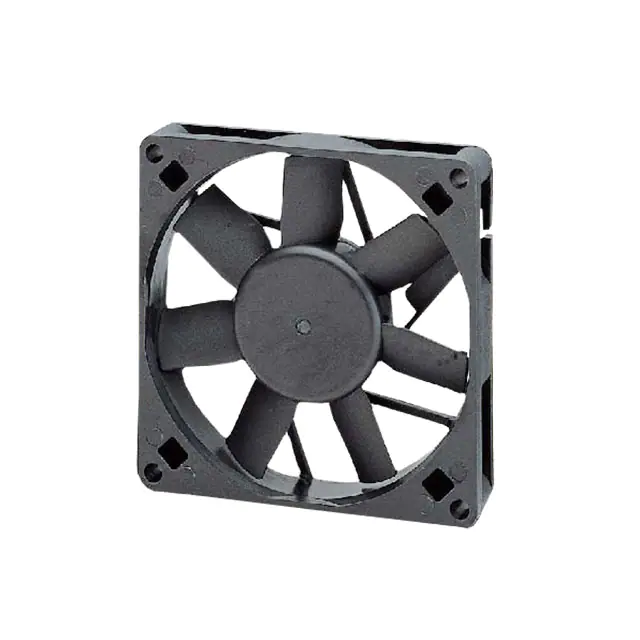

FAD1-08015BHMW12FAN AXIAL 80X15MM 5VDC WIRE Qualtek |
3,267 |
|
数据手册 |
FAD1-08015 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | Tubeaxial | - | 24.9dB(A) | 650 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DHMW12FAN AXIAL 80X15MM 24VDC WIRE Qualtek |
2,872 |
|
数据手册 |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | Tubeaxial | - | 24.9dB(A) | 960 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
FAD1-12038EBJW32FAN AXIAL 120X38.5MM 48VDC WIRE Qualtek |
3,560 |
|
数据手册 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 10.56 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
|
FAD1-12038EHMW32FAN AXIAL 120X38.5MM 48VDC WIRE Qualtek |
4,185 |
|
数据手册 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Hydrodynamic | Tubeaxial | - | 45.0dB(A) | 6.24 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
FDD1-17251DBHW32FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
3,376 |
|
数据手册 |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | 40.6 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|
FDD1-17238CBAW42FAN AXIAL 172X38.5MM 12VDC WIRE Qualtek |
3,921 |
|
数据手册 |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 13.2 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBAW42FAN AXIAL 172X38.5MM 24VDC WIRE Qualtek |
1,307 |
|
数据手册 |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 13 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBMW42FAN AXIAL 172X38.5MM 12VDC WIRE Qualtek |
1,775 |
|
数据手册 |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 28.1 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238EBMW42FAN AXIAL 172X38.5MM 48VDC WIRE Qualtek |
3,951 |
|
数据手册 |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 25 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBJW42FAN AXIAL 172X38.5MM 24VDC WIRE Qualtek |
1,431 |
|
数据手册 |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 340.0 CFM (9.52m³/min) | 1.315 in H2O (327.6 Pa) | Ball | Tubeaxial | - | 68.0dB(A) | 45.8 W | 4400 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
